8040A Data Sheet
Genelec Document BBA0003001a Copyright Genelec Oy 4.2007. All data subject to change without prior notice
www.genelec.com

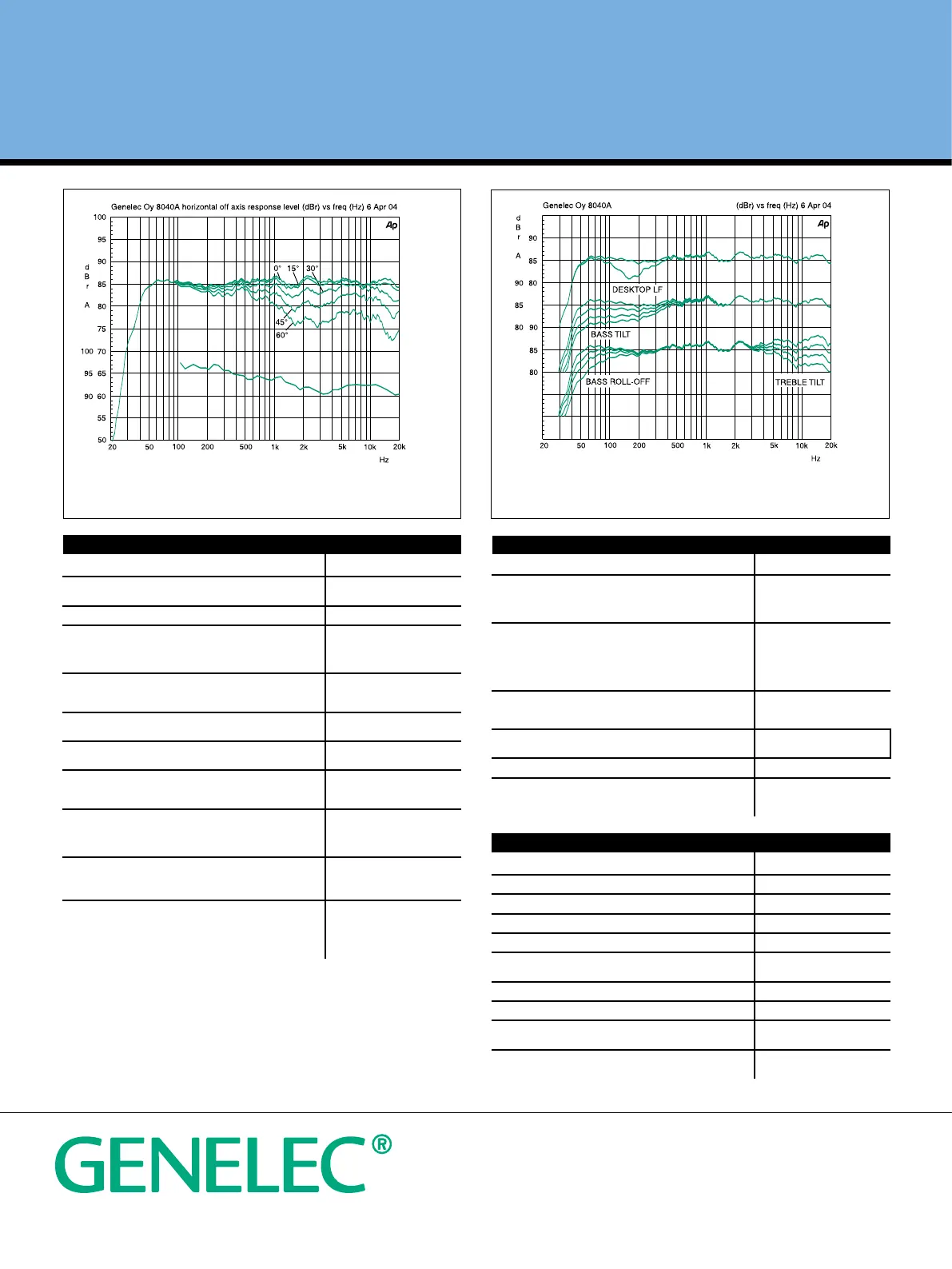

Figure 3: The upper curve group shows the horizontal directivity char-
acteristics of the 8040A measured at 1 m. The lower curve shows the
systems power response.
Figure 4: The curves above show the effect of the “bass tilt”, “treble
tilt”, “desktop low frequency” and “bass roll-off” controls on the free field
response.
AMPLIFIER SECTION
CROSSOVER SECTION
SYSTEM SPECIFICATIONS
8040A
Lower cut-off frequency, -3 dB
Upper cut-off frequency, -3 dB
≤ 45 Hz
≥ 20 kHz
Free field frequency response of system (± 2.0 dB) 48 Hz - 20 kHz
Maximum short term sine wave acoustic output on axis in half
space, averaged from 100 Hz to 3 kHz
@ 1 m
@ 0.5 m
≥ 105 dB SPL
≥ 111 dB SPL
Maximum long term RMS acoustic output in same conditions
with IEC weighted noise (limited by driver unit protection circuit)
@ 1 m
≥ 99 dB SPL
Maximum peak acoustic output per pair above console top,
@ 1 m from the engineer with music material
≥ 115 dB SPL
Self generated noise level in free field @ 1m on axis
(A-weighted)
≤ 10 dB
Harmonic distortion at 90 dB SPL @ 1m on axis
Freq. 50 to 100 Hz
> 100 Hz
< 2 %
< 0.5 %
Drivers:
Bass
Treble
Both drivers are magnetically shielded
165 mm (6 1/2") cone
19 mm (3/4") metal dome
Weight: 8.6 kg (18.9 lbs)
Dimensions:
Height (without Iso-Pod table support
Height (including Iso-Pod table support)
Width
Depth
350 mm (13 13/16“)
365 mm (14 3/8“)
237 mm (9 3/8“)
223 mm (8 13/16“)
8040A
Bass amplifier short term output power
Treble amplifier shortterm output power
Long term output power is limited by driver unit protection
circuitry
90 W (8 Ohm load)
90 W (8 Ohm load)
Amplifier system distortion
at nominal output
THD
SMPTE-IM
CCIF-IM
DIM 100
≤ 0.05 %
≤ 0.05 %
≤ 0.05 %
≤ 0.05 %
Signal to Noise ratio, referred to full output
Bass
Treble
≥ 100 dB
≥ 100 dB
Mains voltage 100, 120, 220 or 230 V
according to region
Voltage operating range ±10 %
Power consumption
Idle
Full output
10 VA
110 VA
8040A
Input connector XLR female Pin 1 gnd, pin 2 +, pin 3 -
Input impedance 10 kOhm balanced
Input level for maximum short term output of 100 dB SPL @ 1m Variable from +6 to -6 dBu
Crossover frequency, Bass/Treble 3.0 kHz
Treble tilt control operating range in 2 dB steps From +2 to -4 dB & MUTE
@ 15 kHz
Desktop low frequency control operating range -4 dB @ 160 Hz
Bass roll-off control operating range in 2 dB steps From 0 to -6 dB @ 45 Hz
Bass tilt control operating range in 2 dB steps From 0 to -6 dB & MUTE
@ 100 Hz
The 'CAL' position is with all tone controls set to 'off' and the
input sensitivity control to maximum (fully clockwise)
