Genelec 8240A - Page 15

13

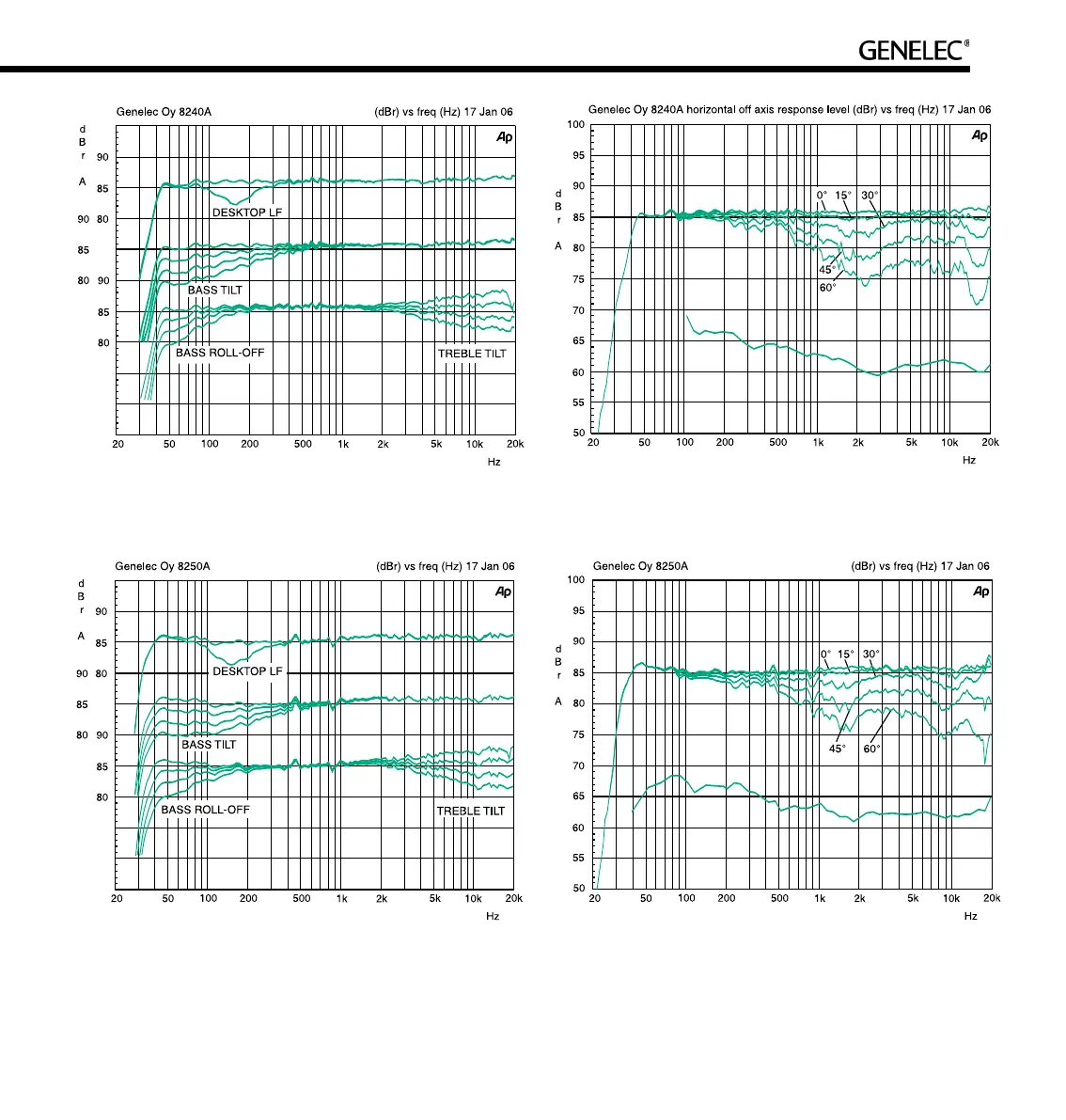

The curves above show the effect of the “Bass Tilt”, “Treble Tilt”,
“Desktop Low Frequency” and “Bass Roll-Off” controls on the
free field response of the 8240A.
The upper curve group shows the horizontal directivity characteristics
of the 8240A measured at 1 m. The lower curve shows the system's
power response.
The upper curve group shows the horizontal directivity characteristics
of the 8250A measured at 1 m. The lower curve shows the system's
power response.
The curves above show the effect of the “Bass Tilt”, “Treble Tilt”,
“Desktop Low Frequency” and “Bass Roll-Off” controls on the
free field response of the 8250A.
