Genelec aiw26b User Manual

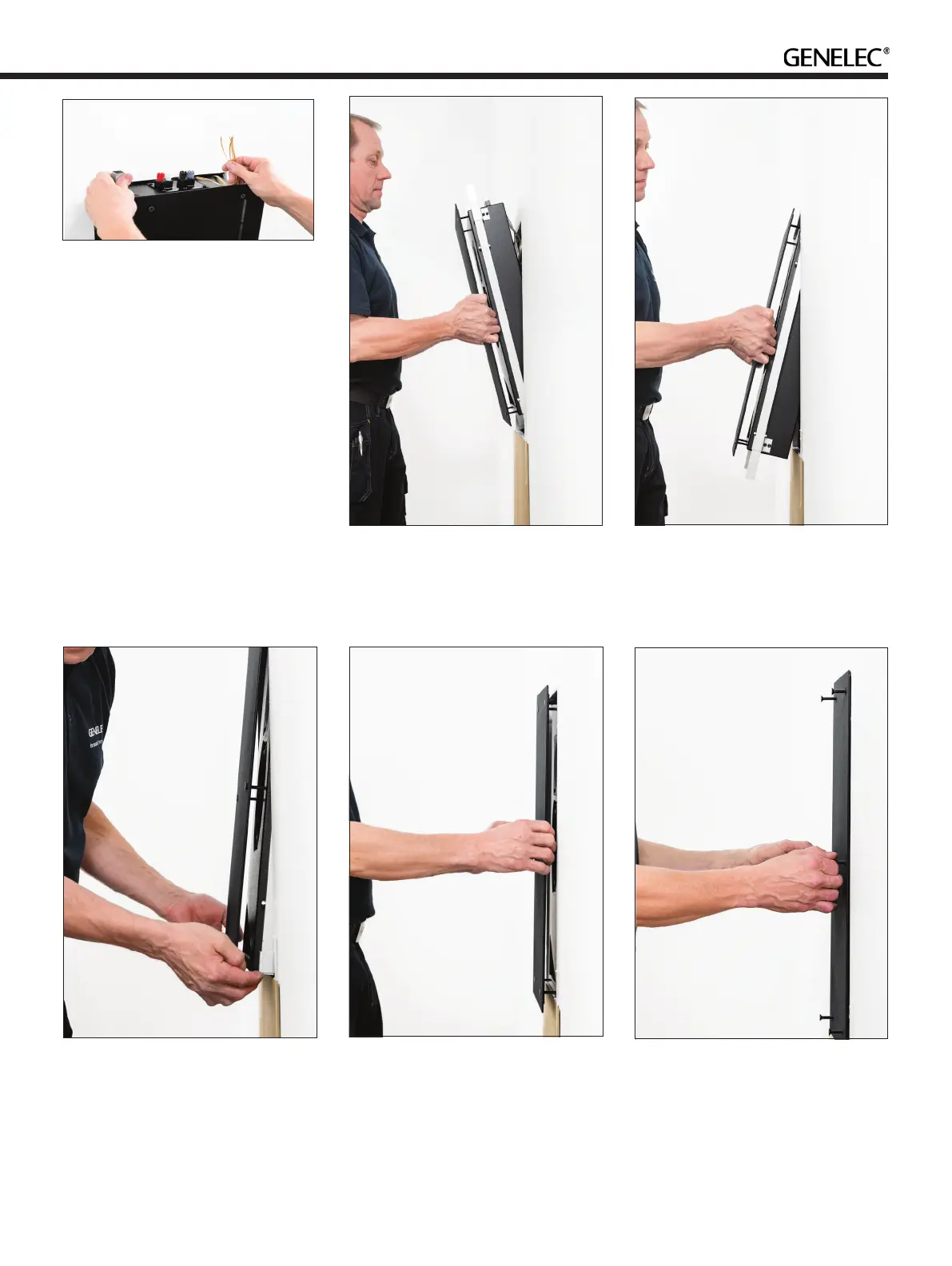

Figure 10. Check the polarity of the
loudspeaker cables and attach the cables
to the binding posts of the loudspeaker.
Figure 11. When the cables are connected,
lift the loudspeaker out.
Figure 12. Lift the loudspeaker into the hole
top end rst.
Figure 13. Lift the mounting brackets up
and push the lower end of the loudspeaker
into the hole.
Figure 14. Check that the mounting
brackets have moved back to the lower
position. Remove the cardboard template.
Figure 15. Lift the loudspeaker by the
screws and push it into the hole so that it
rests on the step on the inner side of the
mounting ange (see Figure 16).

Genelec aiw26b Specifications

General

Brand	Genelec
Model	aiw26b
Category	Speaker System
Language	English
