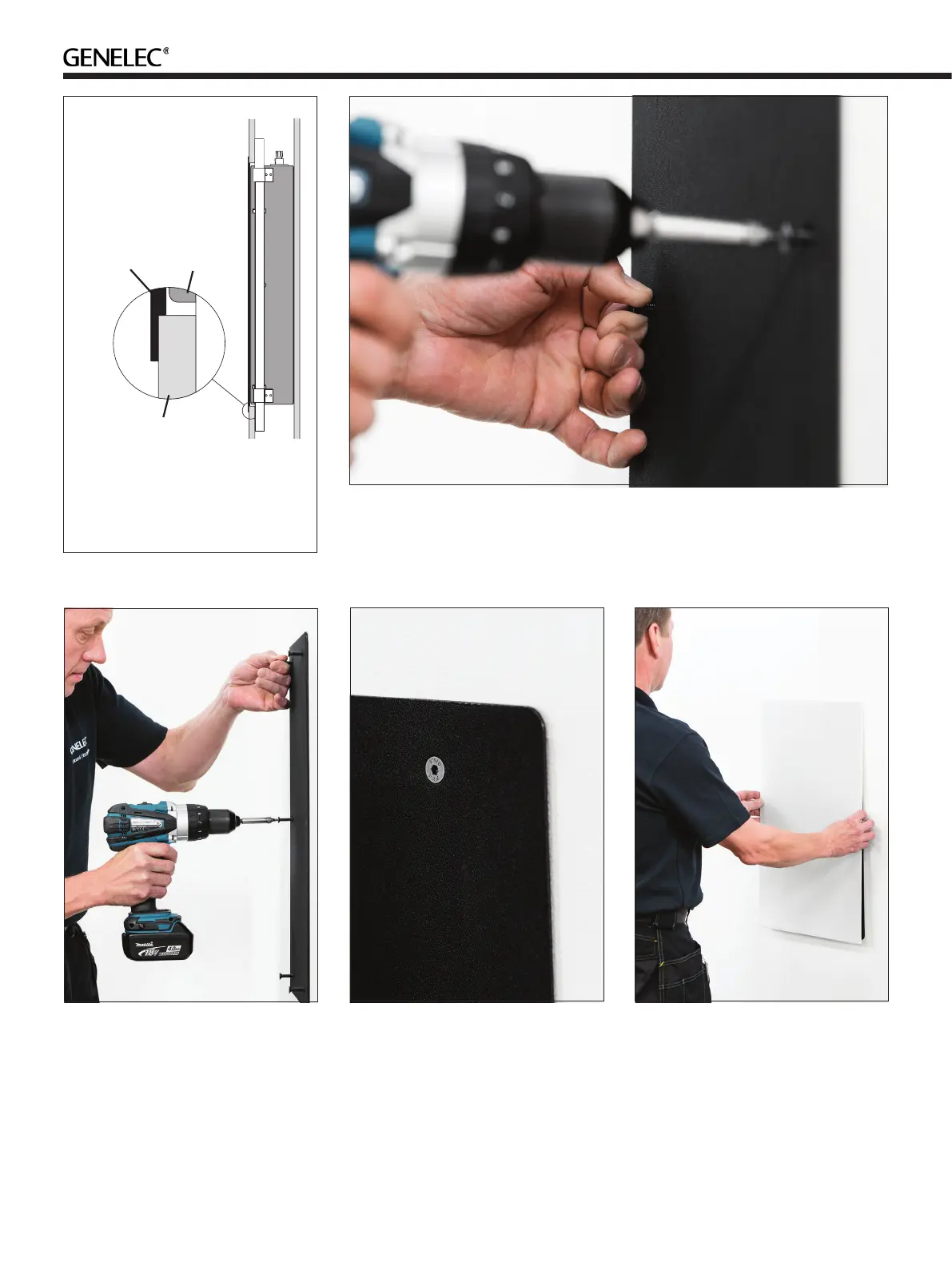

Figure 18. Tightening the second screw. Figure 19. Check that the ange sits
tightly against the wall. If there is a bigger
gap somewhere, loosen the screws and
reposition the ange correctly.
Figure 20. The grille is held in place by
magnets. Position it carefully and check that
it sits evenly against the wall surface.
WALL
LOUD-
SPEAKER
MOUNTING
FLANGE
Figure 16. Correct positioning of the
mounting ange. Note that the ange,
not the loudspeaker enclosure is in
contact with the wall.
Figure 17. Tighten the middle screws rst using a Torx 30 bit. Hold the enclosure and
mounting ange in place by gripping the other middle screw as shown above. Tighten to
2 Nm (1.5 ft-lbf). Next tighten the top screws and last the lower screws.
