Generac Mobile MMG35DF4 - Connection Panel

Owner’s Manual for Mobile Generator 15
General Information
Connection Panel

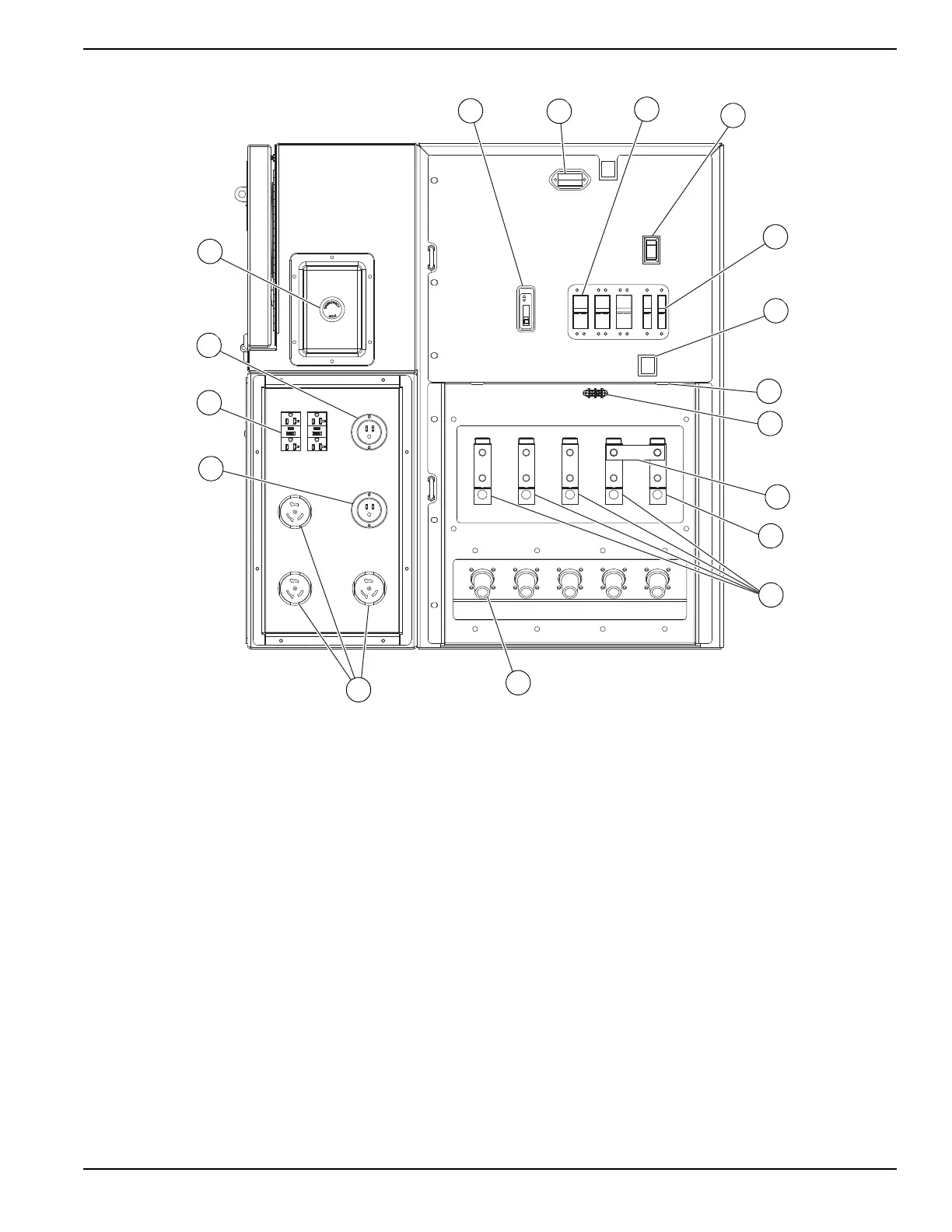

Figure 2-4. Connection Panel Components
A Main circuit breaker I Ground connection lug
B Panel light J Connection lugs
C 50A circuit breaker (3 locations) K Cam lock receptacle (5 locations) (if equipped)
D Service lights switch L 120V/240V twist-lock outlets
E 20A circuit breaker (2 locations) M Connection for optional equipment Inlet
F Lug door safety switch N 120 V GFCI outlet (2 locations)
G Remote start terminal block O Connection for battery charger (if equipped)
H Neutral grounding bar P Emergency stop switch
