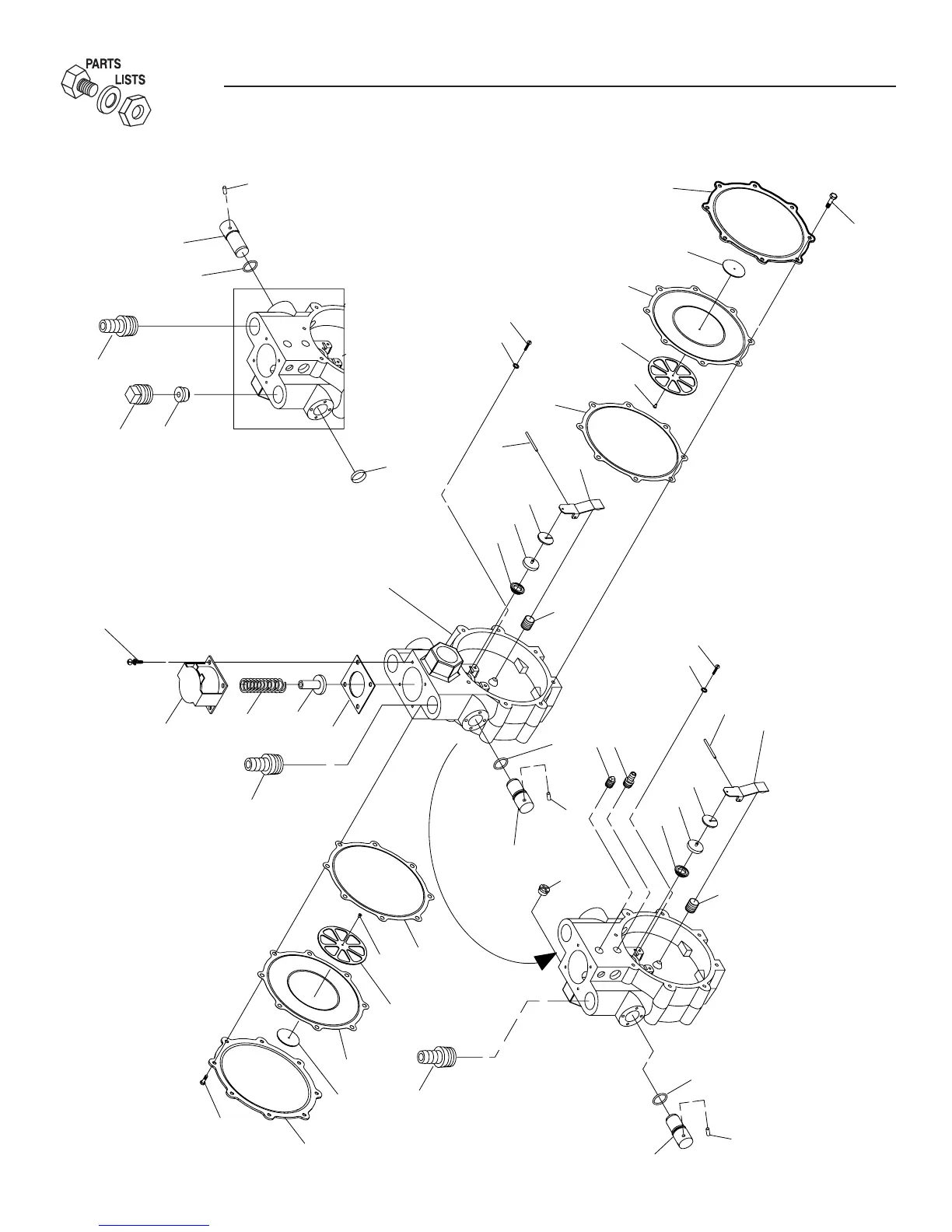

Section
7
— Exploded
Views
and
P
ar
ts Lists
Air-cooled
7 kW, 1
2
kW
and 15 kW
Generators
Gas
Regulator –
Drawing
No.
0D8
7
20-H
49
51
Table of Contents
Introduction
2
Read this Manual Thoroughly
2
Contents
2
Operation and Maintenance
2
How to Obtain Service
2
Table of Contents
3
Safety Rules
4
Standards Index
5
Section 1 - General Information
6
Unpacking/Inspection
6
Protection Systems
6
System Set LED
6
The Generator
7
Your Generator
7
Specifications
8
Generator
8
Engine
8
Fuel Requirements and Recommendations
9
Fuel Consumption
9
Reconfiguring the Fuel System
9
Kw, 410CC
9
Kw and 15 Kw, 990Cc Engines
9
Location
10
Generator
10
Transfer Switch
10
Battery Installation
11
The Battery
11
Section 2 - Post Installation Start-Up and Adjustments
12
Before Initial Start-Up
12
Check Transfer Switch Operation
12
Electrical Checks
12
Generator Tests under Load
13
Checking Automatic Operation
13
Adjusting the Regulator (Natural Gas Only)
14
Engine Governor Adjustment
14
Kw Units
14
Kw and 15 Kw Units
15
Additional Corrosion Protection
15
Voltage Regulator Adjustment
15
Auto" Position
16
Manual" Position
16
Off" Position
16
Section 3 - Operation
16
Break-In Procedure
16
Using the Auto/Off/Manual Switch
16
Automatic Transfer Operation
16
Sequence of Automatic Operation
16
Manual Transfer Operation
17
Transfer to Generator Power Source
17
Transfer Back to Utility Power Source
17
Setting the Exercise Timer
18
Protection Systems
18
Low Oil Pressure Switch
18
High Temperature Switch
18
Overcrank
18
Overspeed
19
Section 4 - Maintenance
19
Fuse
19
Checking the Engine Oil Level
19
Changing the Engine Oil
19
Engine Oil Recommendations
19
Oil Change Procedure
20
Changing the Oil Filter
20
Changing the Engine Air Cleaner
20
Kw, 12 Kw and 15 Kw
20
Generators
20
Spark Plug(S)
21
Battery Maintenance
21
Adjusting Valve Clearance
22
Cooling System
22
Attention after Submersion
23
Corrosion Protection
23
Out of Service Procedure
23
Removal from Service
23
Return to Service
23
Service Schedule
24
Section 5 - Troubleshooting
25
Troubleshooting Guide
25
Section 6 - Electrical Data
26
Section 7 - Exploded Views and Parts Lists
34
Section 8 - Mounting Dimensions
52
Section 9 - Notes
53
Section 10 - Warranty
54
Important Information
