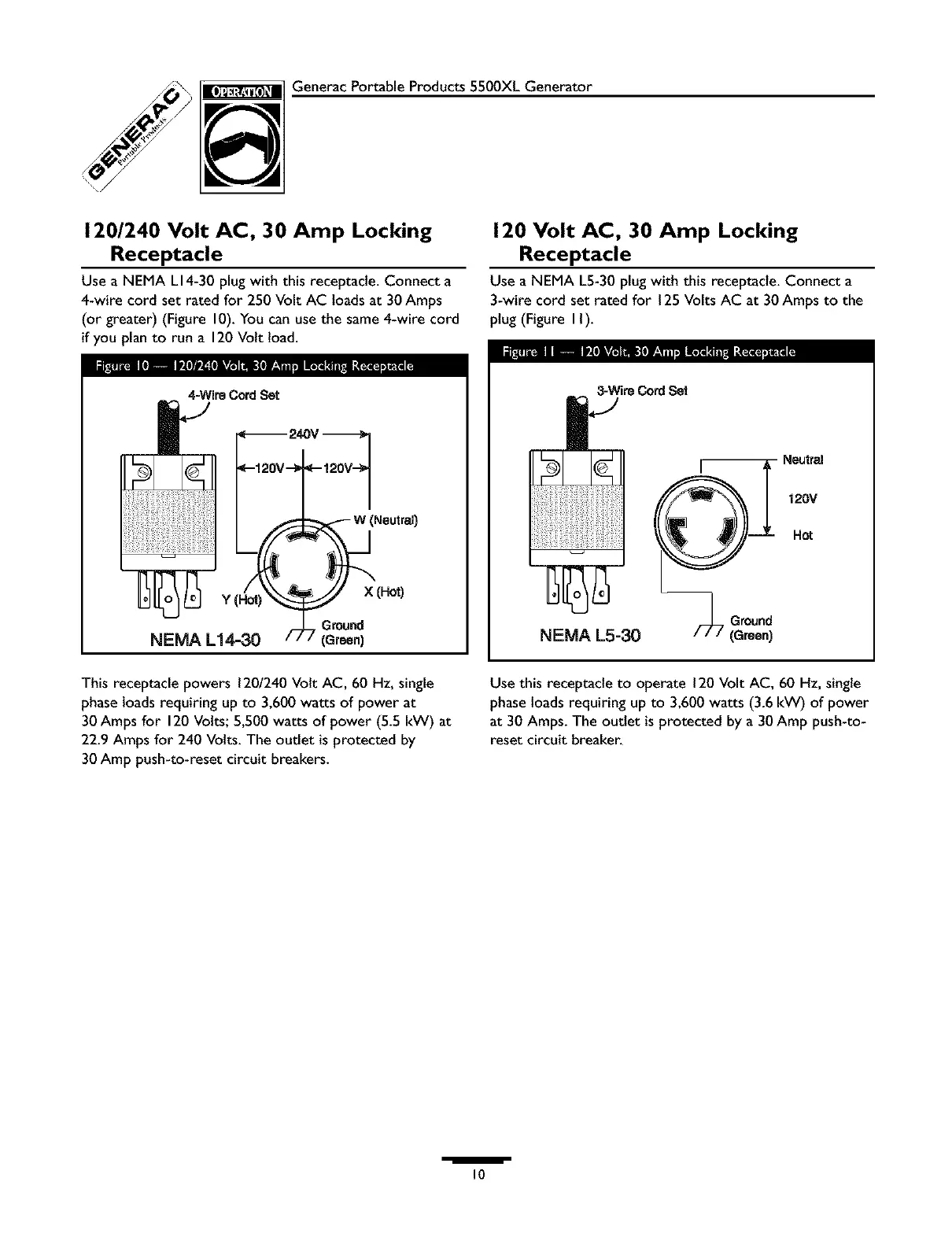

Generac Portable Products 5500XL Generator
120/240 Volt AC, 30 Amp Locking
Receptacle
Use a N EMA LI4-30 plug with this receptacle. Connect a
4-wire cord set rated for 250 Volt AC loads at 30 Amps
(or greater) (Figure 10).You can usethe same4-wire cord
if you plan to run a 120Volt load.
120 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L5-30 plug with this receptacle. Connect a
3-wire cord set rated for 125Volts AC at 30 Amps to the
plug (Figure I I).
I - - I|_otv/lJte€[;]r,__ _m
Ij_l_m Ilo_ IPIOTP,1E[O__ _l'_
4-Wire Cord Set
This receptacle powers 120/240Volt AC, 60 Hz, single
phaseloadsrequiring up to 3,600 watts of power at
30 Amps for 120 Volts; 5,500 watts of power (5.5 kW) at
22.9 Amps for 240 Volts. The outlet isprotected by
30 Amp push-to-reset circuit breakers.
3-Wire Cord Set
NEMA L5-30
I _-- Neutral
-----_ Hot
F_7 GrOund
(Green)
Use this receptacle to operate 120Volt AC, 60 Hz, single
phaseloadsrequiring up to 3,600 watts (3.6 kW) of power
at 30 Amps. The outlet isprotected by a 30 Amp push-to-
reset circuit breaker.
/
10
