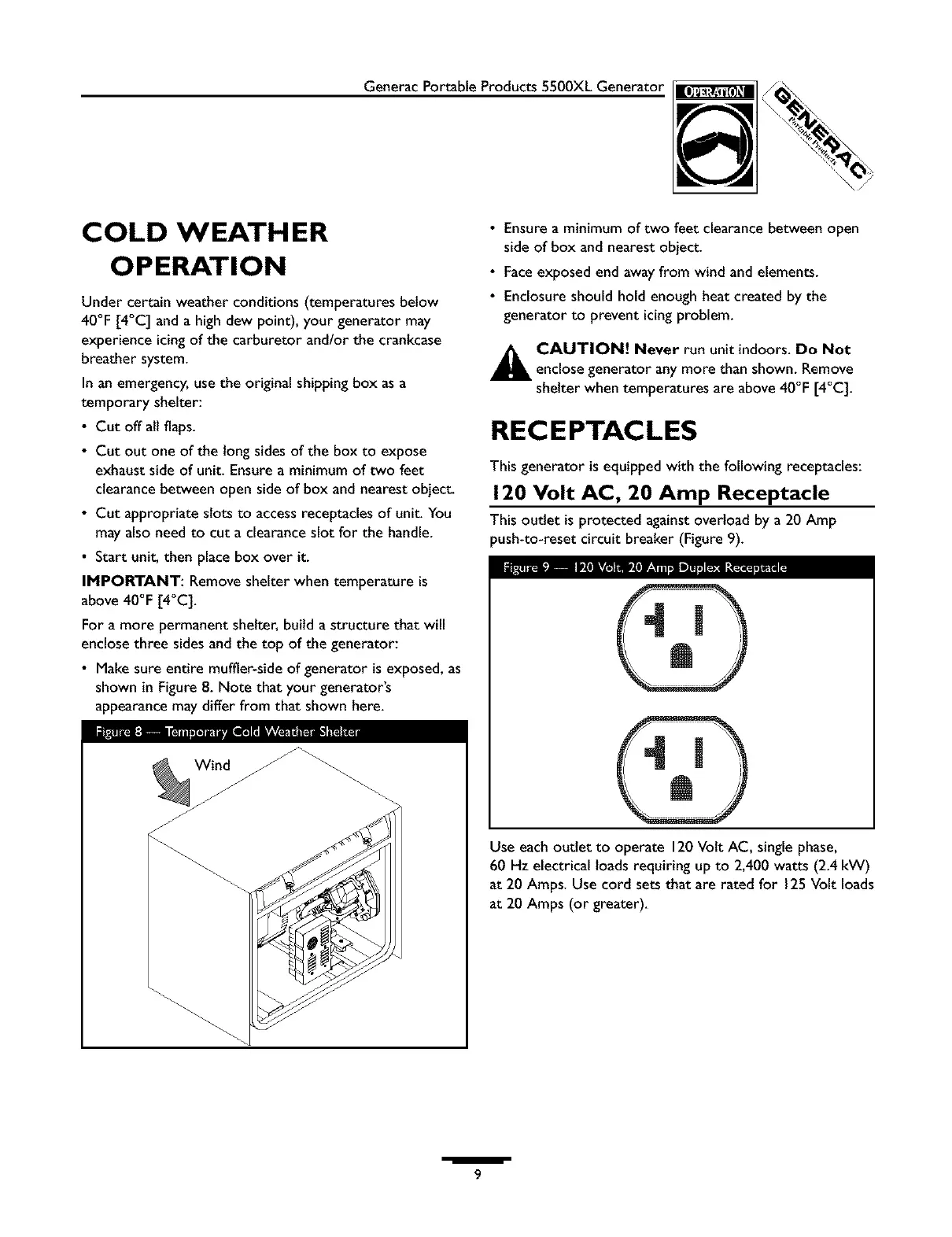

GeneracPortableProducts5500XLGenerator
COLD WEATH ER
OPERATION
Under certain weather conditions (temperatures below
40°F [4°C] and a high dew point), your generator may
experience icingof the carburetor and/or the crankcase
breather system.
In an emergency, usethe original shipping box as a
temporary shelter:
• Cut off all flaps.
• Cut out one of the long sides of the box to expose
exhaust side of unit. Ensurea minimum of two feet
clearance between open sideof box and nearest object.
• Cut appropriate slots to accessreceptacles of unit. You
may also need to cut a clearance slot for the handle.
• Start unit, then place box over it.
IMPORTANT: Remove shelter when temperature is
above 40°F [4°C].
For a more permanent shelter, build a structure that will
enclose three sidesand the top of the generator:
• Make sure entire muffler-side of generator is exposed, as
shown in Figure 8. Note that your generator's
appearancemay differ from that shown here.
• Ensure a minimum of two feet clearance between open
side of box and nearest object.
• Face exposed end away from wind and elements.
• Enclosure should hold enough heat created by the
generator to prevent icing problem.
A CAUTION! Never run unit indoors.Do Not
enclosegeneratoranymore than shown.Remove
shelterwhentemperatures are above40°F [4°C].
RECEPTACLES
This generator isequipped with the following receptacles:
120 Volt AC, 20 Amp Receptacle
This outlet is protected against overload by a 20 Amp
)ush-to-resetcircuit breaker (Figure 9).
Use eachoutlet to operate 120 Volt AC, singlephase,
60 Hz electrical loads requiring up to 2,400 watts (2.4 kW)
at 20 Amps. Use cord sets that are rated for 125 Volt loads
at 20 Amps (or greater).
/
9
