Generac Portable Products 7,500 EXL Generator
11
Use this receptacle to operate 120 Volt AC, 60 Hz, single
phase loads requiring up to 3,600 watts (3.6 kW) of power
at 30 Amps. The outlet is protected by a 30 Amp
push–to–reset circuit breaker.
120/240 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L14–30 plug with this receptacle. Connect a
4–wire cord set rated for 250 Volt AC loads at 30 Amps
(or greater). You can use the same 4–wire cord if you plan
to run a 120 Volt load (Figure 14).
This receptacle powers 120 Volt AC, single phase, 60 Hz
loads requiring up to 3,600 watts of power (3.6 kW). Or it
will operate 240 Volt AC, single phase, 60Hz loads up to
7,200 watts (7.2 kW). This outlet is protected by a 30 Amp
push–to–reset circuit breaker.
120/240 Volt AC, 50 Amp Receptacle
Use a NEMA 14–50 plug with this receptacle. Connect a
4-wire cord set rated for 240 Volt AC loads at 50 Amps to
the plug (Figure 15).
Use this receptacle to operate 240 Volt AC, 60 Hz, single
phase loads requiring up to 7,500 watts (7.5 kW) of power.
CAUTION! Although this outlet states it has a
240 Volt 50 Amp rating (up to 12,500 watts), the
generator is only rated for 7,500 watts. Powering
loads that exceed the wattage / amperage capacity of
the generator can damage it or cause serious
injuries.

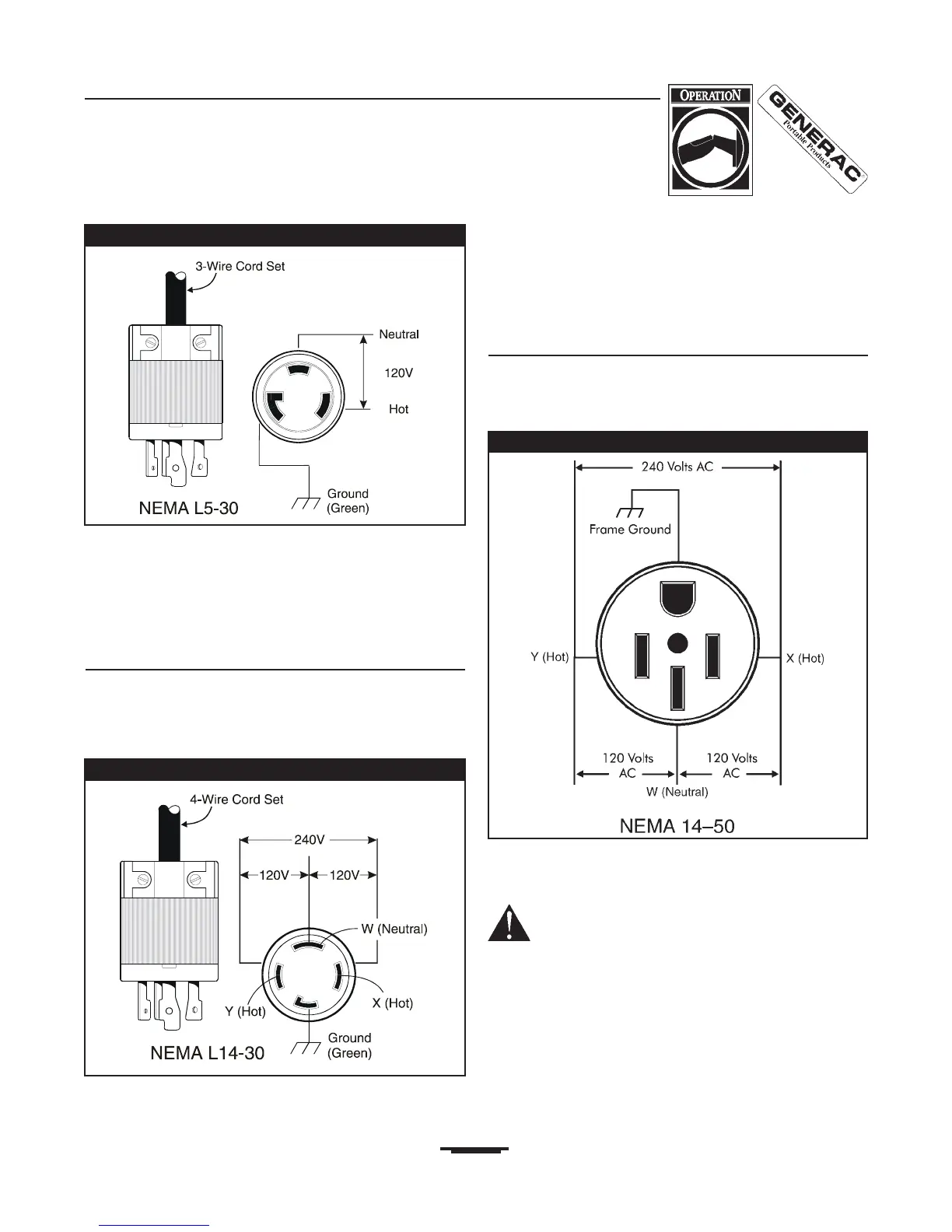

Figure 13 — 120 Volt AC, 30 Amp Locking Receptacle
Figure 14 — 120/240 Volt AC, 30 Amp Locking Receptacle
Figure 15 — 120/240 Volt AC, 50 Amp Receptacle
