Generac Portable Products 7,500 EXL Generator
6
12 Volt DC,10 Amp Receptacle — Recharge a
discharged 12 Volt automotive type battery through this
receptacle.
120/240 Volt AC, 50 Amp Receptacle — May be used
to supply electrical power for the operation of
120/240 Volt AC, 50 Amp, single phase, 60 Hz electrical
loads.
120/240 Volt AC, 30 Amp Locking Receptacle —
May be used to supply electrical power for the operation
of 120 and/or 240 Volt AC, 30 Amp, single phase, 60 Hz,
AC electrical lighting, appliance, tool and motor loads.
120 Volt AC, 20 Amp Receptacle — May be used to
supply electrical power for the operation of 120 Volt AC,
20 Amp, single phase, 60 Hz electrical lighting, appliance,
tool and motor loads.
120 Volt AC, 30 Amp Locking Receptacle — May be
used to supply electrical power for the operation of
120 Volt AC, 30 Amp, single phase, 60 Hz electrical
lighting, appliance, tool and motor loads.
Air Cleaner — Uses a dry type filter element and foam
pre–cleaner to limit the amount of dirt and dust sucked
into the engine.
Choke Lever — Used when starting a cold engine.
Circuit Breakers (AC) — Each receptacle is provided
with a circuit breaker to protect the generator against
electrical overload. Breakers are "push to reset" type.
Engine Start Switch - Pressed to start the engine.
Fuel Tank — Capacity of seven (7) U.S. gallons.
Grounding Wing Nut — Used for proper grounding of
unit.
Idle Control Switch — With this switch set to ON,
printed circuit board in control panel automatically reduces
engine speed when no load is connected and increases
engine to proper speed when load is applied. However, be
sure switch is OFF when starting engine.
Recoil Starter — Used as backup method of starting
engine.
Run/Stop Switch — Set this switch to "RUN" before
using recoil starter. Set switch to "STOP" to switch OFF
engine.
Spark Arrester Muffler — Exhaust muffler lowers
engine noise and is equipped with a spark arrester screen.

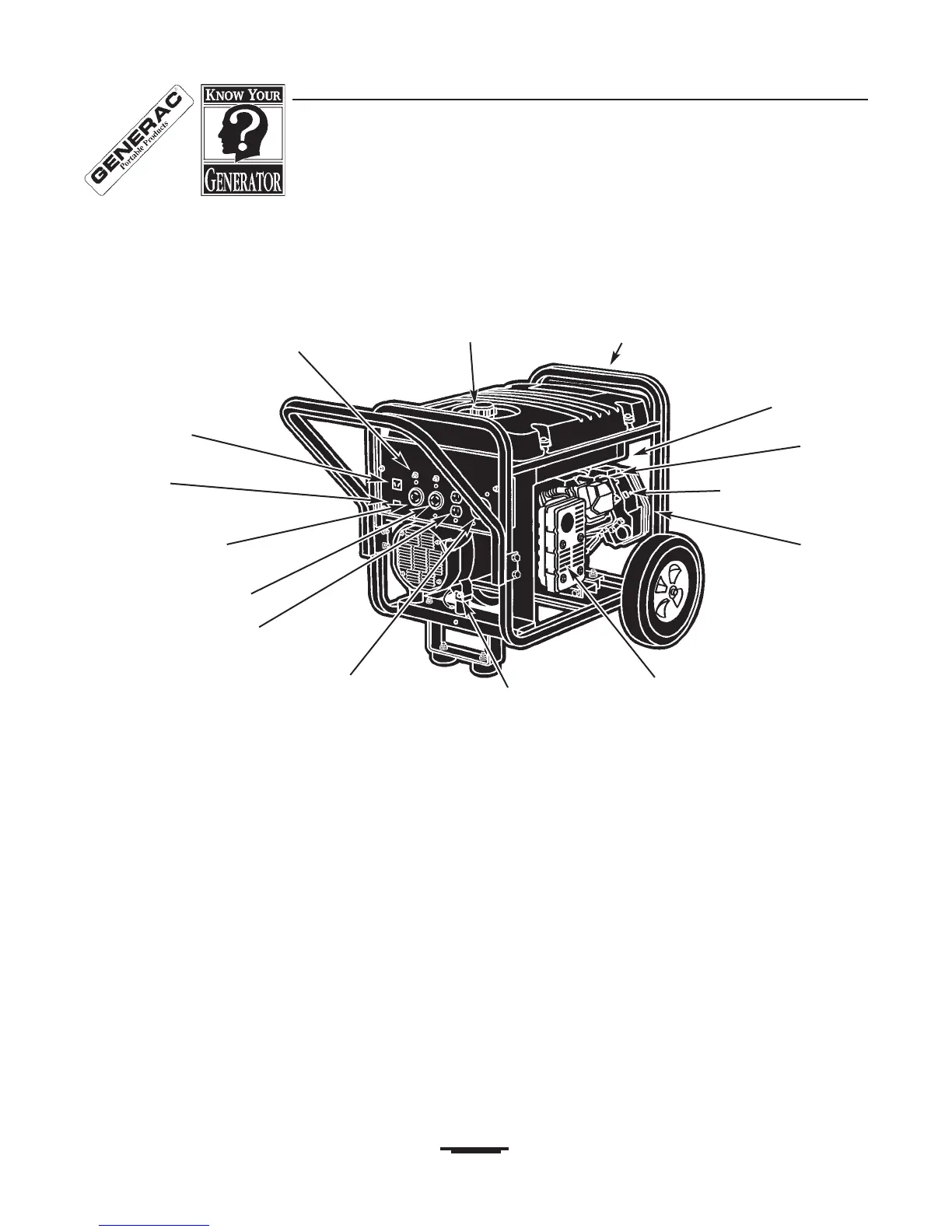

KNOW YOUR GENERATOR
Read this owner’s manual and safety rules before operating your generator.
Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
120 Volt AC, 20 Amp
Receptacle
120/240 Volt AC,
50 Amp Receptacle
Fuel Tank
Idle Control Switch
Engine Start Switch
Choke Lever
Recoil Starter
12 Volt DC, 10 Amp
Receptacle
Run/Stop Switch
120 Volt AC,
30 Amp Receptacle
Circuit Breakers (AC)
120/240 Volt AC,
30 Amp Receptacle
Spark Arrester Muffler
Air Cleaner
Grounding Wing Nut
