Generac Portable Products 7,500 EXL Generator
21

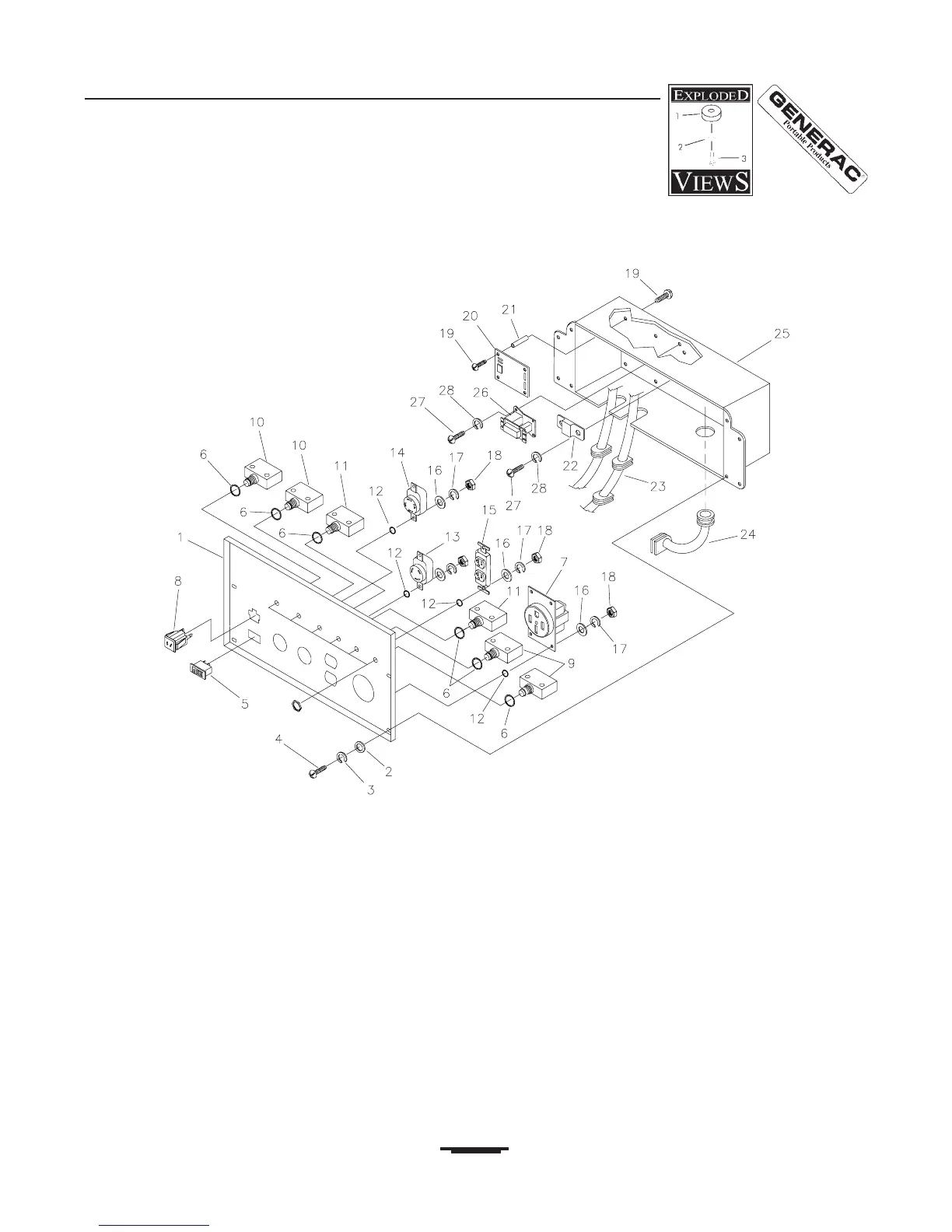

EXPLODED VIEW AND PARTS LIST – CONTROL PANEL
Item Part # Qty. Description
1 BB4461 1 PANEL, Control
2 23897 4 WASHER, #10 M5 Flat
3 49226 4 WASHER, M5 Lock
4 91526 4 SCREW, M5-0.8 x 12 mm
5 82538 1 SWITCH, Idle Control
6 82881 6 WASHER, 7/16" Int. Lock
7 B4262 1 OUTLET, 50A, 240V
8 90418 1 OUTLET, 10A, 12VDC
9 75207N 2 CIRCUIT BREAKER, 35 AMP
10 75207A 2 CIRCUIT BREAKER, 30 AMP
11 75207 2 CIRCUIT BREAKER, 20 AMP
12 23365 10 WASHER, #8 Shakeproof
13 68868 1 OUTLET, 30A, 120V Locking
14 43437 1 OUTLET, 30A, 120V/240V
Locking
Item Part # Qty. Description
15 68759 1 OUTLET, 20A, 120V
16 43180 10 WASHER, M4 Flat
17 22264 10 WASHER, #8 M4 Lock
18 51715 10 NUT, M4 - 0.7 Hex
19 64526 8 SCREW, #6-32 x 3/8"
20 83970 1 BOARD, System Control
21 64525 4 3/4" Hex Standoff
22 87962 1 CIRCUIT BREAKER, 10A
(automatic), 12V
23 84335 1 ASSEMBLY, Wire Harness
24 84134 1 GROMMET, Rubber Connector
25 B92069 1 BOX, Control Panel
26 84028 1 TRANSFORMER, Idle Control
27 43181 4 SCREW, M3 - 0.5 x 10 mm
28 43182 4 WASHER, M3 Lock
To Next Page
