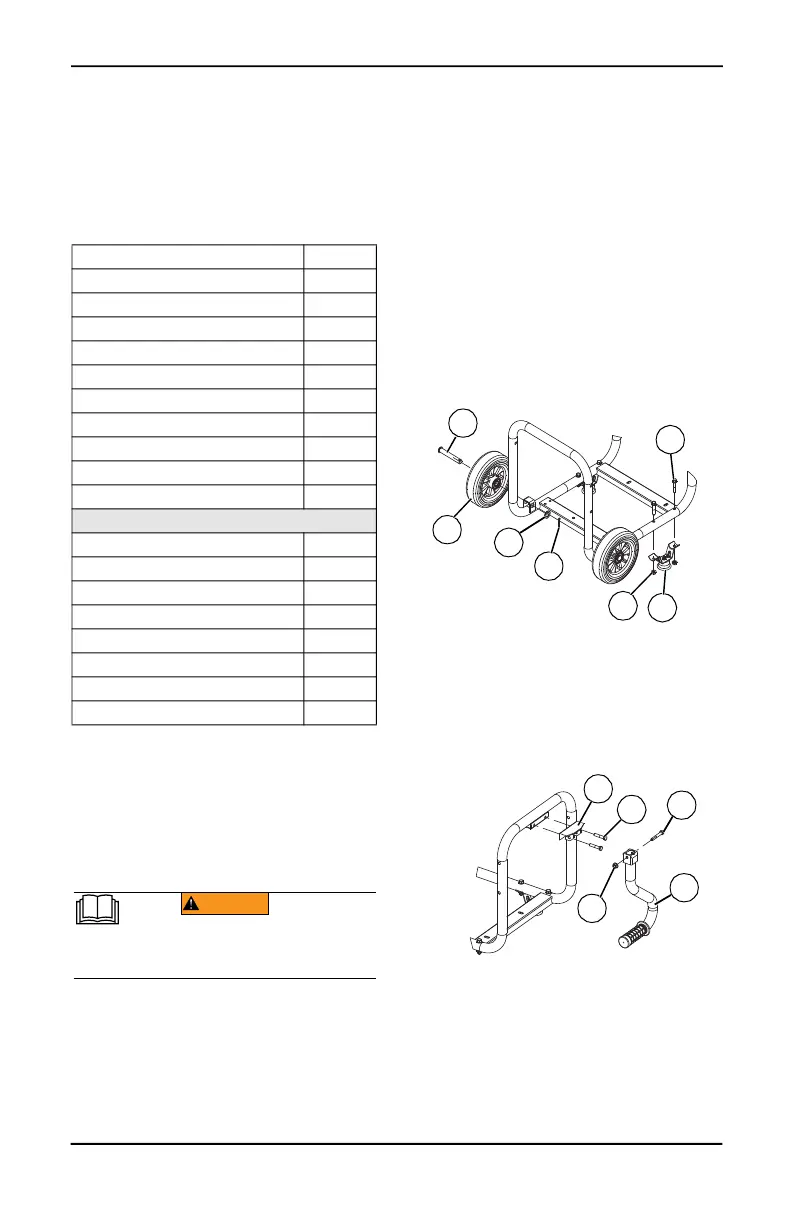

8 Owner’s Manual for Portable Generator
Remove Contents from Carton
1. Open carton completely by cutting each
corner from top to bottom.
2. Remove and verify carton contents prior to
assembly. Carton contents should contain
the following:
Accessories
3. Call Generac Customer Service 1-888-
GENERAC (1-888-436-3722) with the unit
model and serial number for any missing
carton contents.
4. Record model, serial number, and date of
purchase on front cover of this manual.
Assembly
Call Generac Customer Service at 1-888-
GENERAC (1-888-436-3722) for any assem-
bly issues or concerns. Please have model
and serial number available.
The following tools are required to install the
accessory kit.
• Needle nose pliers
• Ratchet
• 12mm socket
• 12mm wrench
NOTE: The wheels are not intended for over-
the-road use.
See Figure 2-6. Install wheels.
1. Slide axle pin (D) through the wheel (B),
wheel bracket on frame, and flat washer
(L).
2. Insert cotter pin (F). Bend tabs (of cotter
pins) outward to lock into place.
See Figure 2-6. Install frame foot.
1. Place frame foot assembly (C) under
frame. Secure with M8-1.25 x 45 bolts (J)
and M8-1.25 hex flange nut (G).
.
Figure 2-6. Wheel & Frame Foot Assembly
See Figure 2-7. Install handle.
1. Install handle bracket (E) to frame with
M8-1.25 x 40 bolts (H).
2. Slide M8-1.25 x 55 bolts (K) through han-
dle bracket and handle (A). Install M8-1.25
hex flange nut (G).
.
Figure 2-7. Handle Assembly
Item Qty.
Main Unit 1
Owner’s Manual 1
Liter Oil SAE 30 with Funnel 1
Handle Assembly (A) 1
Never-flat Wheel (B) 2
Frame Foot Assembly (C) 2
Axle Pin (D) 2
Product Registration Card 3
Service Warranty 1
Emissions Warranty 1
Hardware Bag Qty.
Handle Bracket (E) 1
Cotter Pin (F) 2
M8-1.25 Hex Flange Nut (G) 5
M8-1.25 x 40 Hex Head Bolt (H) 2
M8-1.25 x 45 Bolt (J) 4
M8-1.25 x 55 Bolt (K) 1
Flat Washer (L) 2
(000100a)
WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
B
J
C
F
G
D
L
E
A
H
K
G
To Next Page
