8 Owner’s Manual for Portable Generator
Connection Plugs
220 Volt Universal Receptacle
The 120 Volt outlet is overload protected by a
20 Amp circuit breaker. See Figure 2-10. Each
receptacle will power 120 Volt AC, single
phase, 60 Hz electrical loads requiring up to
2400 watts (2.4 kW) or 20 Amps of current.
Use only high quality, well-insulated, 3-wire
grounded cord sets rated for 125 Volts at 20
Amps (or greater).

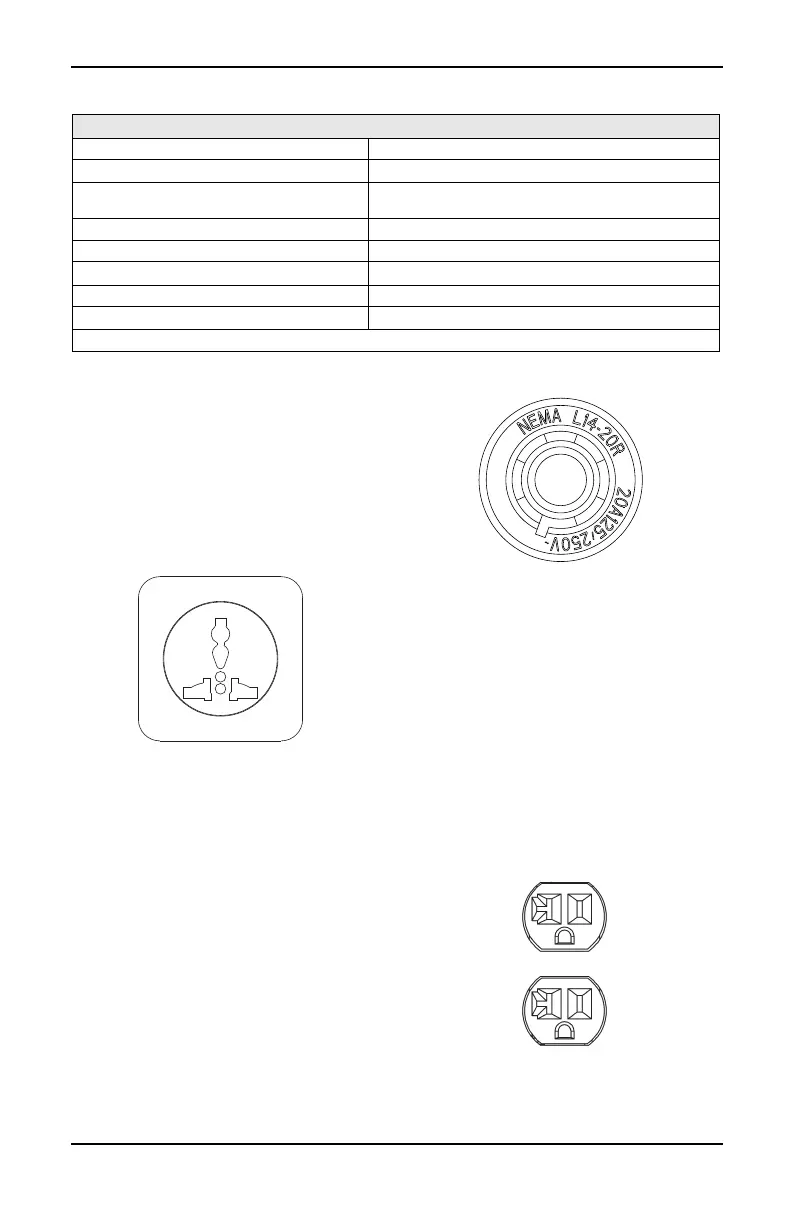

Figure 2-10. 220 Volt Universal Receptacle
120/240 VAC, 20 Amp Receptacle
Use a NEMA L14-20 plug with this receptacle
(rotate to lock/unlock). Connect a suitable 4-
wire grounded cord set to plug and desired
load. The cord set should be rated 250 Volts
AC at 20 Amps (or greater). See Figure 2-11.
Use this receptacle to operate 120 Volt AC, 60
Hz, single phase loads requiring up to 3600
watts (3.6 kW) of power at 20 Amps or 240
Volt AC, 60 Hz, single phase loads. The outlet
is protected by a 30 Amp 2-pole toggle switch
circuit breaker.
Figure 2-11. 120/240 VAC, 20 Amp Receptacle
NEMA L14-20R
120 VAC, 20 Amp, Duplex
Receptacle
The 120 Volt outlet is overload protected by a
20 Amp circuit breaker. See Figure 2-12. Each
receptacle will power 120 Volt AC, single
phase, 60 Hz electrical loads requiring up to
2400 watts (2.4 kW) or 20 Amps of current.
Use only high quality, well-insulated, 3-wire
grounded cord sets rated for 125 Volts at 20
Amps (or greater).
NOTE: Limit length of extension cords to fif-
teen feet, or less, to prevent voltage drop and
overheating of wires.
Figure 2-12. 120 VAC, 20 Amp, Duplex
Receptacle NEMA 5-20R
GP2800 and GP3300 Engine Specifications
Displacement 208 cc
Spark Plug Part No. 0A45310275
Spark Plug Type F6TC, NGK BP6IS, Champion RN11YC or
Equivalent
Spark Plug Gap 0.028-0.031 inch (0.71-0.79 mm)
Gasoline Capacity 13.25 L (3.5 U.S. gallons)
Oil Type
See chart in
Add Engine Oil.
Oil Capacity 0.6 L (0.634 qt.)
Run Time at 50% Load 9.7 Hours
* Go to www.generac.com or contact an IASD for replacement parts.
TABLE 2. Product Specifications
