Generac Power Systems Magnum MLT3060K User Manual

Wiring Diagrams
44 Owner’s Manual for MLT3060M-K Light Tower

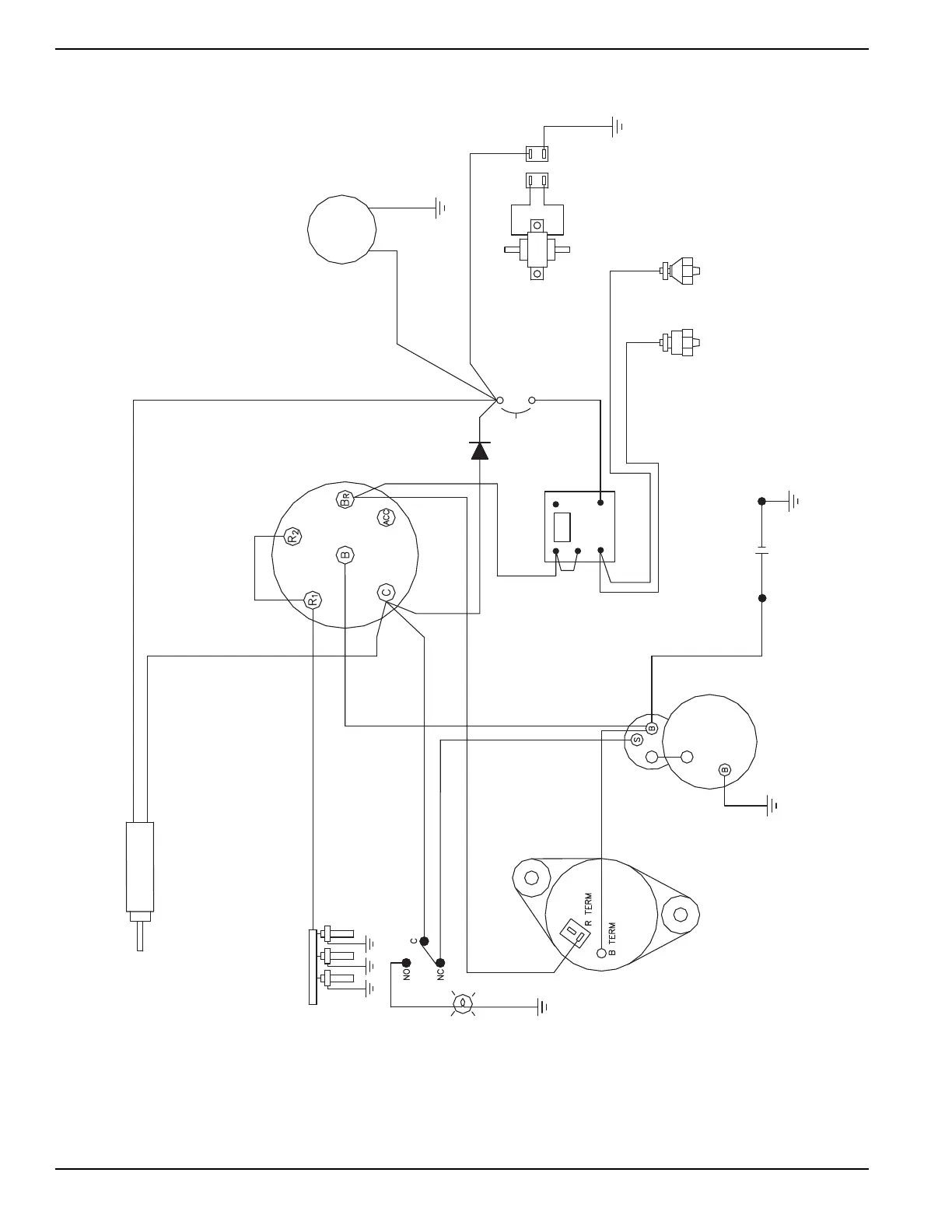

DC Wiring—MLT3060K
After serial number: 0900090
(HOLD)
(PULL)
SOLENOID
RD/YL
VI/YL
BK/YL
RD/WT
STARTER SWITCH
HOUR
VI/YL VI/YL
BK/WT
BK/WT
RD
BK
FUEL
PUMP
10 AMP
CIRCUIT
BREAKER
OIL
PRESSURE
WARNING
SWITCH (N.C.)
SWITCH (N.O.)
WARNING
OVERHEAT
12V BATTERY
STARTER
RELAY
TIME DELAY
GY/BL
GY/VI
RD
RD
BK
BK/YL
GLOW PLUGS
AUX SWITCH
MAIN BREAKER
RD/VI
ALTERNATOR
WARNING LIGHT
"TURN MAIN
BREAKER OFF"
BK/WT
BK
RD/YL
OR/YL
RD/VI
RD/VI
N/C
N/O
-
+
COM
RD/VI
YLBK
90339_E_01.30.14
