General Information
Owner’s Manual for MLT6SMDS - MLT6SKDS Light Tower 13
Trailer Tongue Storage and Tow
Positions
The trailer tongue is designed to fold upright for shipping
and storage.
IMPORTANT NOTE: Do not attempt to tow the unit
with trailer tongue in the storage position.
Place Trailer Tongue in Tow Position
1. Verify unit is on a level surface and wheels are
blocked.
NOTE: See Figure 2-2. Unit ships from factory with jack
in the storage location (A).

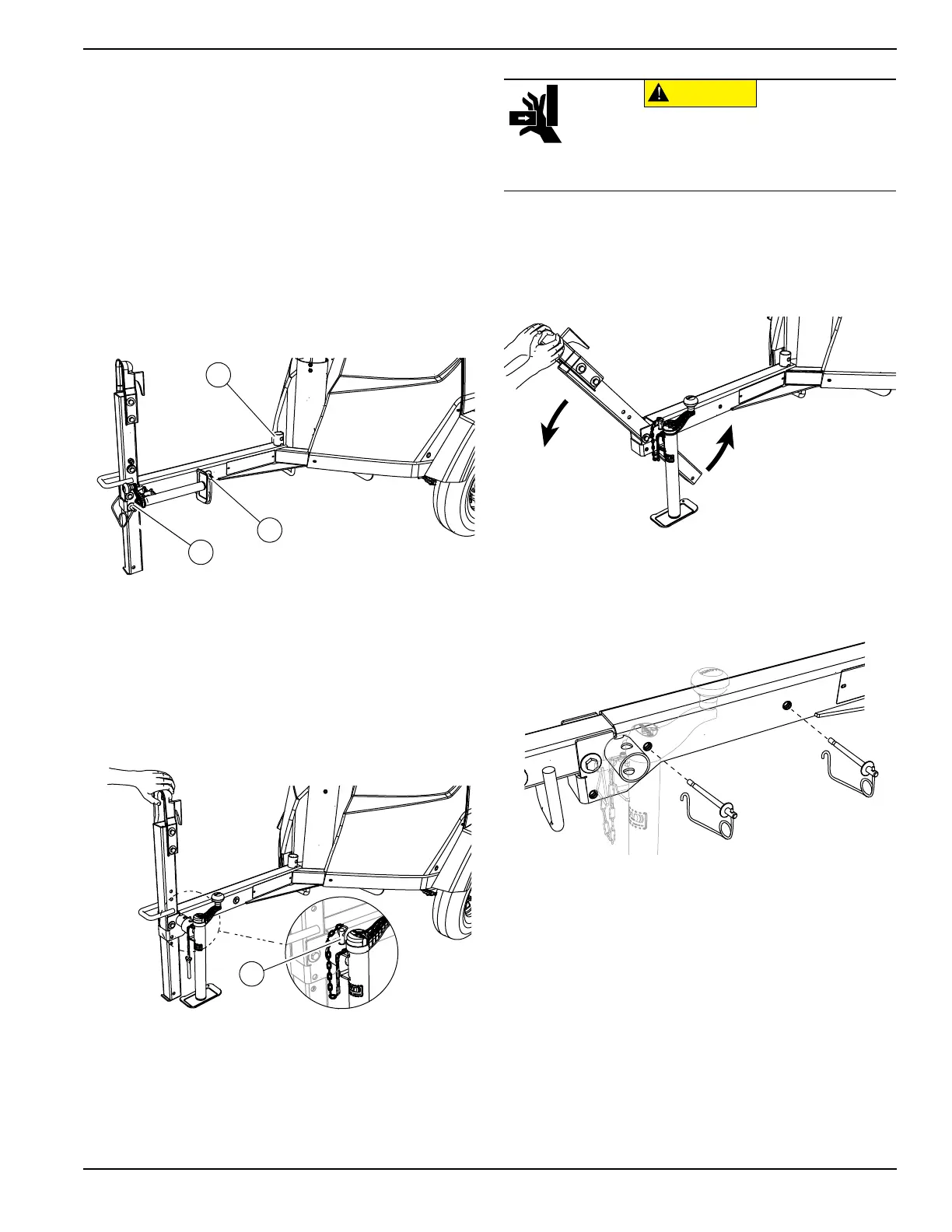

Figure 2-2. Jack and Pin Locations
2. Remove clevis securing jack parallel to ground.
3. Remove jack from tongue weldment. Hold jack
vertically and extend until weldment on jack is
aligned with tongue weldment.
4. See Figure 2-3. Install jack and secure with clevis
(D).
Figure 2-3. Jack Installed
5. See Figure 2-2. Remove pins (B) and (C).
6. See Figure 2-4. Using both hands, slowly lower
trailer tongue into tow position.
NOTE: Varying levels of effort may be required
depending on terrain.
Figure 2-4. Lower Trailer Tongue into Tow Position
7. See Figure 2-5. Install pins as shown to secure
trailer tongue in tow position.
Figure 2-5. Install and Secure Pins
003591
CAUTION
(000313)
Pinching and crushing hazard. To avoid
possible injury, keep fingers away from pivot
point when folding or unfolding trailer tongue.
003592
