Operator Screens
See Figure 2-14. The operator screens display the most
relevant and critical information needed to properly
configure and use the unit. From these six screens, the
operator can access information necessary to operate
the unit under normal conditions.

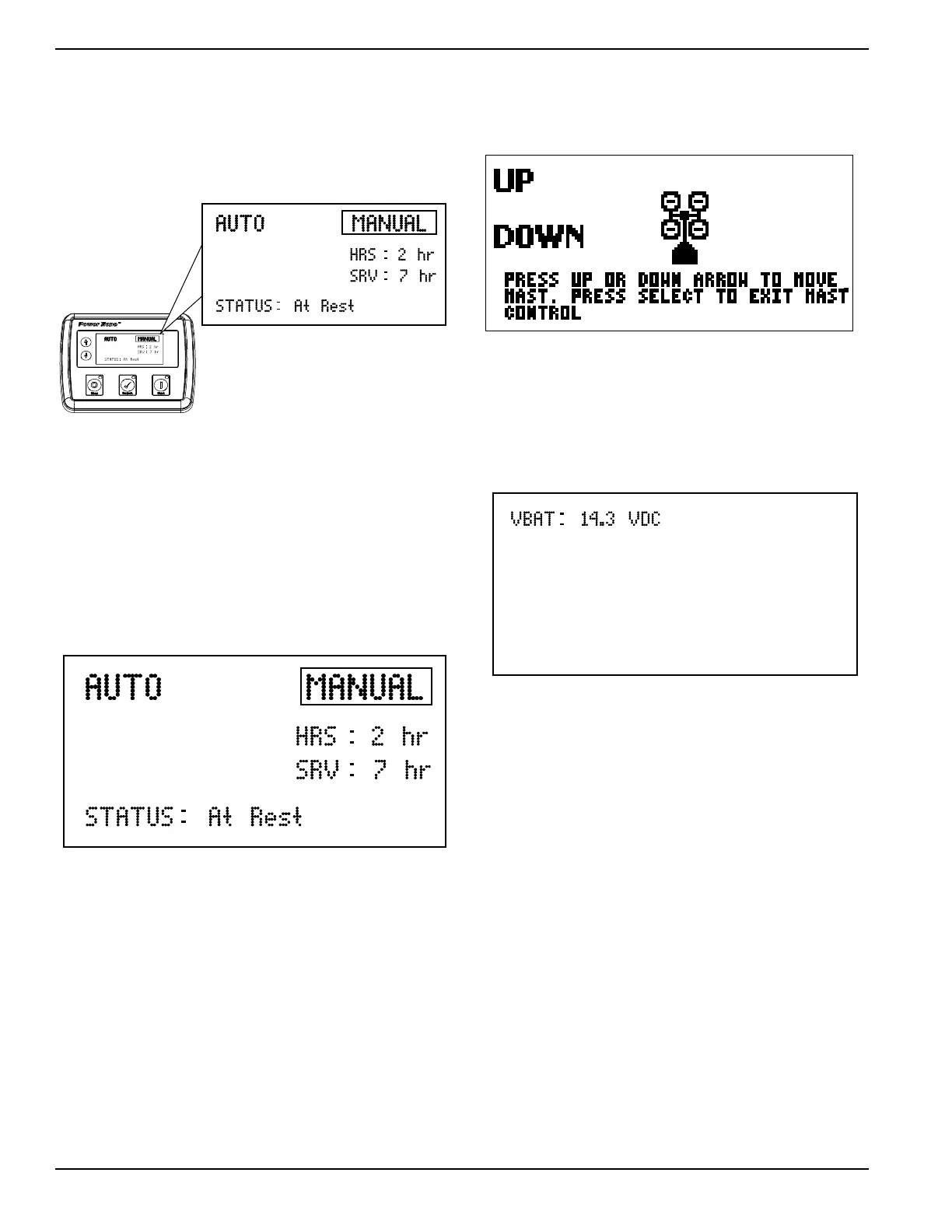

Figure 2-14. Operator Screens Location
Home Screen
See Figure 2-15. The Home screen is the default screen
of the controller and displays after the controller is
powered up and the unit management software is
loaded. It displays the controller mode, total operating
hours, hours left until the next service interval, engine
operating status, and engine rpm. If the unit is in AUTO
mode, the Home screen may also display whether the
scheduler or “dusk to dawn” is enabled.
Figure 2-15. Home Screen
Mast Operation Screen
See Figure 2-16. Mast Operation Screen allows the
operator to raise or lower the mast.
Figure 2-16. Mast Operation Screen
Battery Voltage Screen
See Figure 2-17. Displays the engine battery voltage. A
normal reading is 12-14V on 12 volt systems (with the
engine running).
Figure 2-17. Battery Voltage Screen
