Control Panel

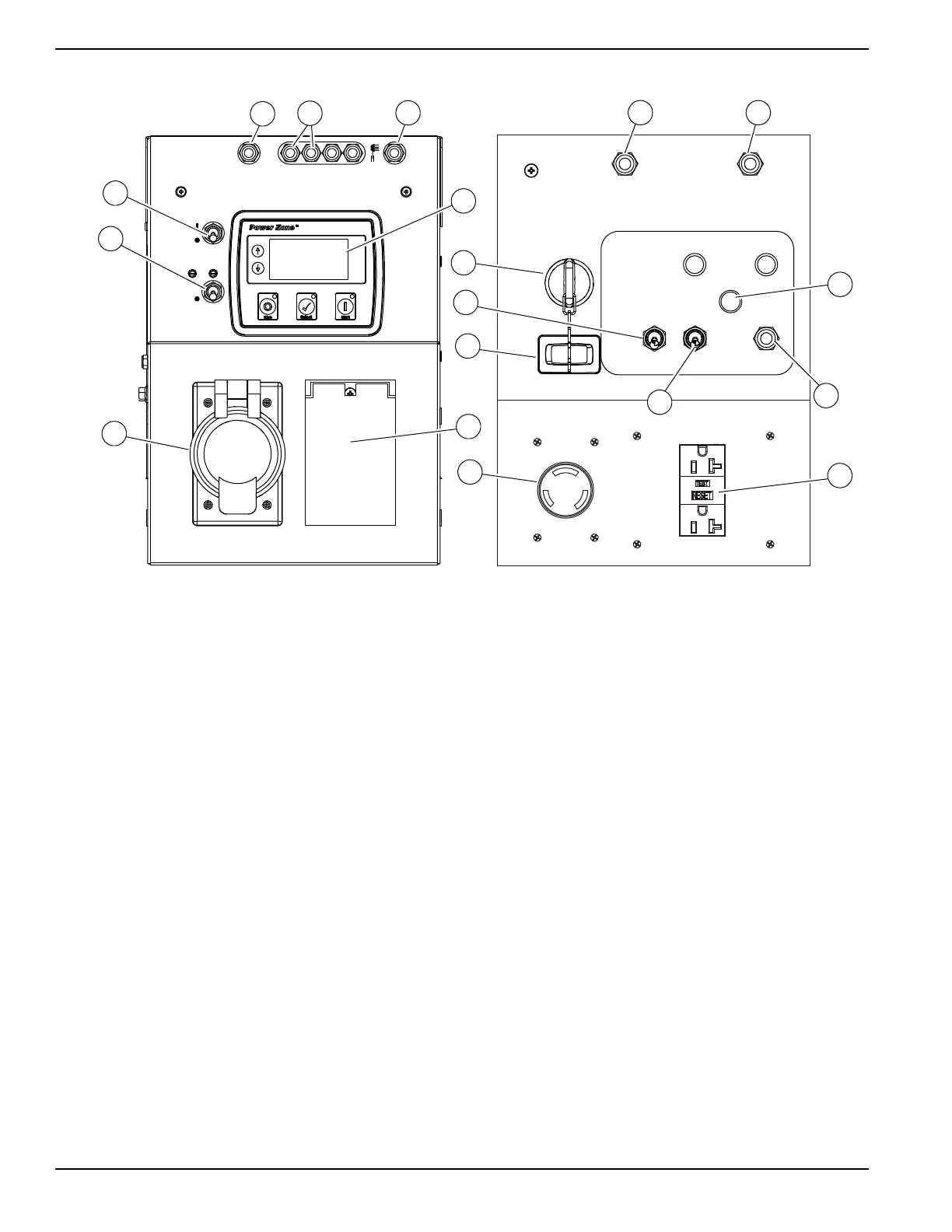

Figure 2-12. Control Panel Features
Control Panel Features and Functions
(A) DC circuit breaker
Resets the DC electrical circuit that powers the control
panel and engine components.
(B) AC GFCI Circuit Breaker (20A)
Resets the AC electrical circuit that powers the control
panel.
(C) 10A AC Breaker
Internal breaker for lights.
(D) Mast switch (if equipped)
Raises and lowers the mast on units equipped with an
electric winch.
(E) 120V/20A GFCI receptacle
Customer convenience receptacle for use in connecting
auxiliary equipment such as fans, pumps, or drills.
Includes a ground fault circuit interrupter (GFCI) test and
reset button.
(F) 240VAC/30A twist-lock receptacle
Customer convenience receptacle for use in connecting
auxiliary equipment such as fans, pumps, or drills.
(G) Engine hour meter
Displays number of hours the engine has run.
(H) Main circuit breaker
240V/30A breaker which disconnects power from the
lights and control panel.
(I) Control power switch
Turns the controller ON and OFF.
(J) Power Zone controller
Monitors the unit and indicates operational status and
fault conditions.
(K) Mast light circuit breakers
Circuit breakers with internal breakers dedicated to
individual lights.
(L) 4-Position key switch
Operates the engine.
(M) Light toggle switch
Toggles all four lights ON or OFF.
I
O
I
O
I
O
I
O
I
O
AC CIRCUIT
BREAKERS
DC CIRCUIT
BREAKER
MAST LIGHT CIRCUIT BREAKERS
MAIN CIRCUIT
BREAKER
CONTROL
POWER
A B
C
D
E
F
G
H
L
K
F
E
A
B
I
H
J
Control Panel with Power Zone (if equipped) Control Panel without Power Zone
008707
M
