CONTROL PANEL

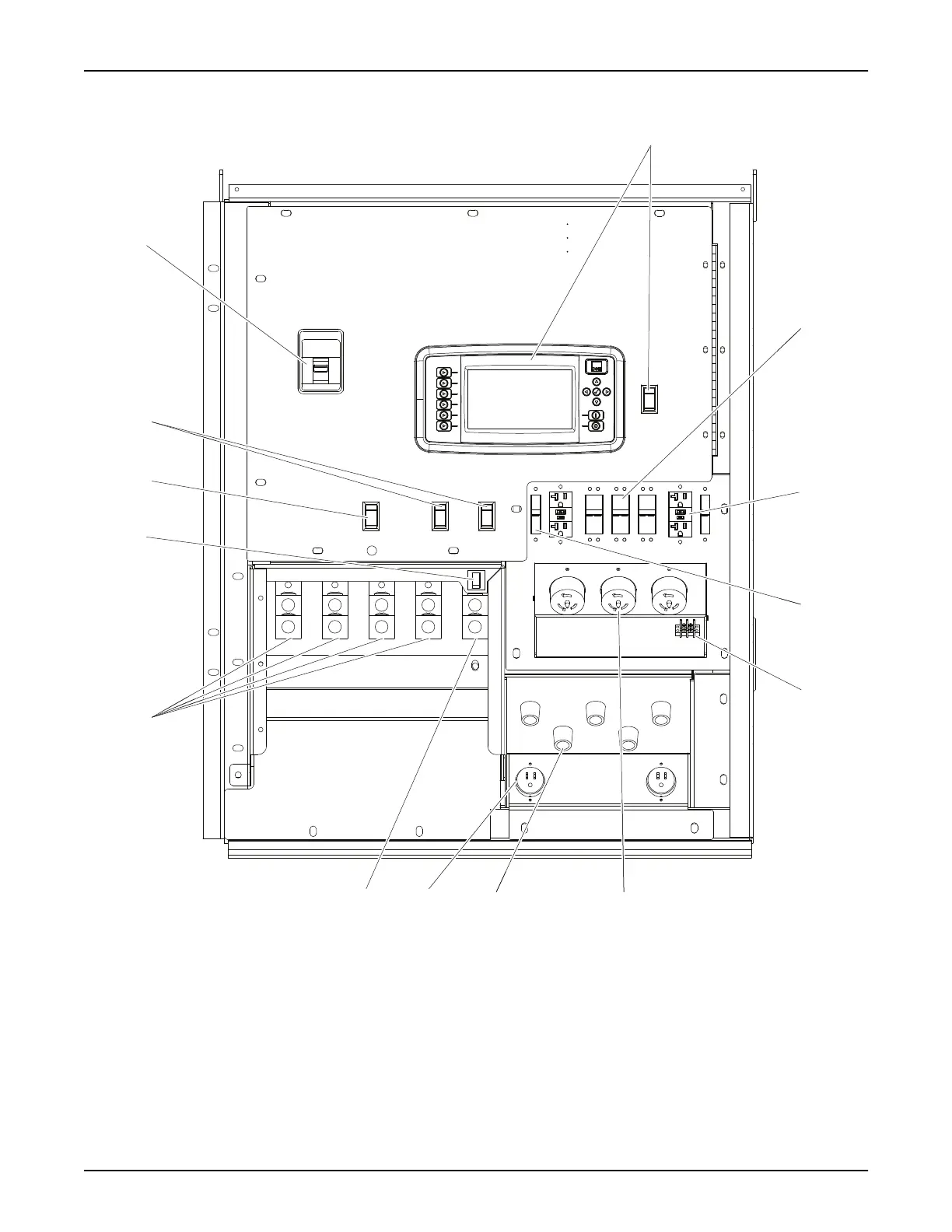

Figure 2-4. Control Panel Component Locations
1. Power Zone™ controller 8. Cam lock connections (5)
2. 50A circuit breakers (3) 9. Generator ground connection lug
3. 120V GFCI receptacles (2) 10. Generator output connection lugs (4)
4. 20A circuit breakers (2) 11. Door safety switches (2)
5. Remote start terminal block 12. Diesel exhaust filter cleaning switch
6. Engine accessory connection (2) 13. Auxiliary light switches (optional)
7. 120/240V twist-lock receptacles (3) 14. Main circuit breaker
1
2
3
4
5
79
10
11
12
13
14
86
01890
