General Information
12 MMG75D-100D Operating Manual 33701 C

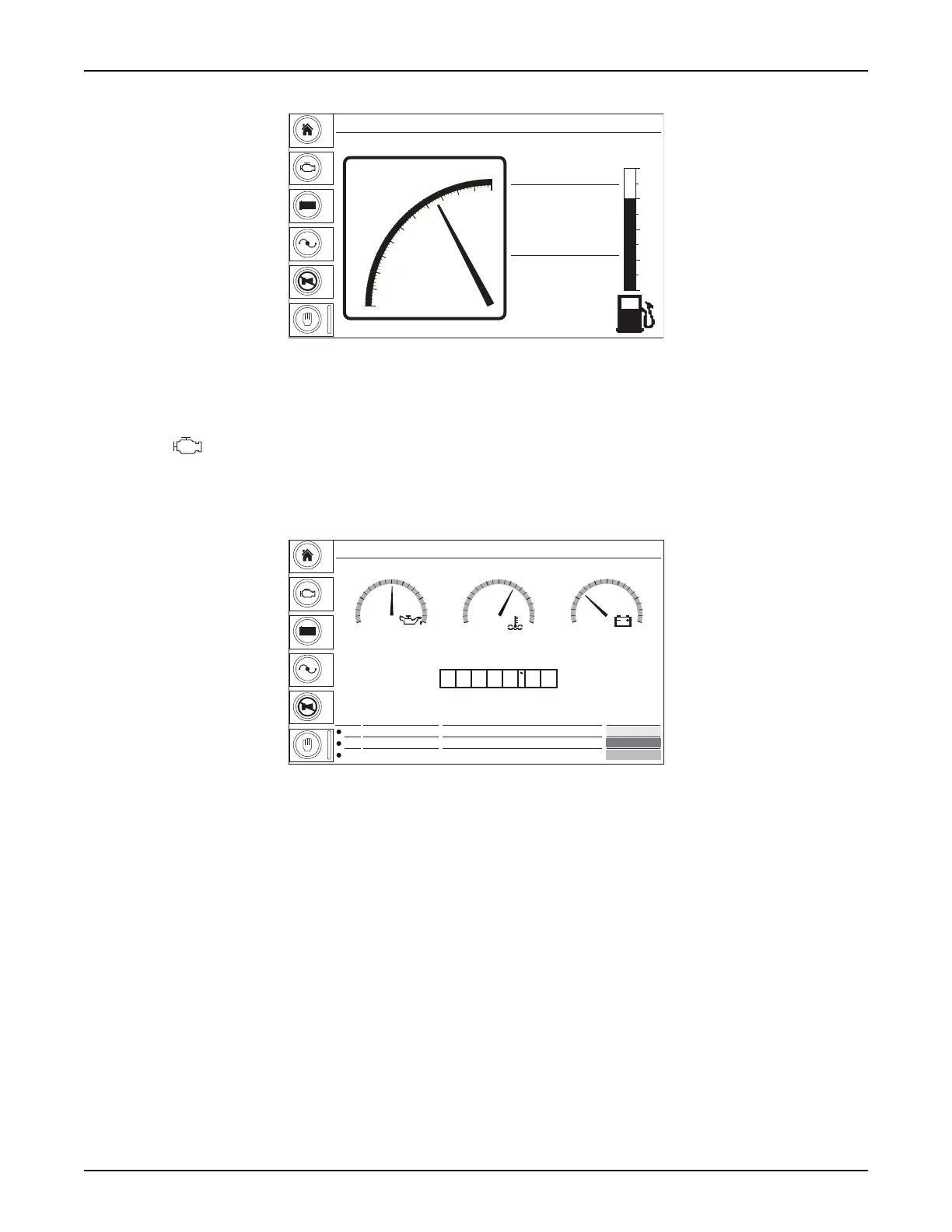

Figure 2-6. Home Button Screen
Engine Button
The Engine ( ) button displays the oil pressure, coolant temperature and battery voltage on three main gauges.
Below the gauges is an hour gauge displaying the total run time on the engine. At the bottom of the screen, this
screen also displays maintenance alarm status with the time remaining (black text), or the time past (red text) a
scheduled maintenance task, along with the description of the maintenance procedure and the action that will take
place when the timer trips the alarm.
Figure 2-7. Engine Button Screen
Note: If the measured value is outside the range of a gauge, the needle will not be displayed. The digital value below
the gauge will still show the measured value.
• Oil Press: Displays engine oil pressure. Current coolant temperature is displayed directly below the gauge
at all times. The gauge registers oil pressure between 0-100 psi (0-689 kPa). Normal operating pressure is
between 35-80 psi (241-552 kPa).
• Coolant Temp: Displays engine coolant temperature. Current coolant temperature is displayed directly
below the gauge at all times. The gauge displays coolant temperature between 150°-250°F (66°-121°C).
Normal operating temperature of the unit is between 180°-200°F (82°-93°C) with an average ambient air
temperature of 70°F (21°C).
• Battery: Displays the engine battery voltage. Current battery voltage is displayed directly below the gauge
at all times. The gauge displays battery voltage between 0-50V. A normal reading is 12-14V on 12 volt
systems and 24-26V on 24 volt systems (with the engine running).
00393
Manual Mode
3 PHASE
Volts
Amps
480
128
106.9 kW
%
0
10
100
110
20
30
40
50
60
70
80
90
Time to Empty
15 hr
Full
3/4
1/2
1/4
Empty
74
%
GEN
V
+
-
00394
GEN
V
+
-
Maintenance
Alarm Hours Description Action
1 174 To Service Oil Maintenance
2 174 To Service Fuel Maintenance
3 174 To Service Air Maintenance
Oil press. Coolant Temp. Battery
Manual Mode
Hrs
13.8 V
0
10
20 30
40
50150
170
190 210
230
250
°F214PSI50.9
100
0
20
40 60
80
0 0 3 2 5 1 5
Warning
Shutdown
Electrical Trip
