Component Locations
Exterior

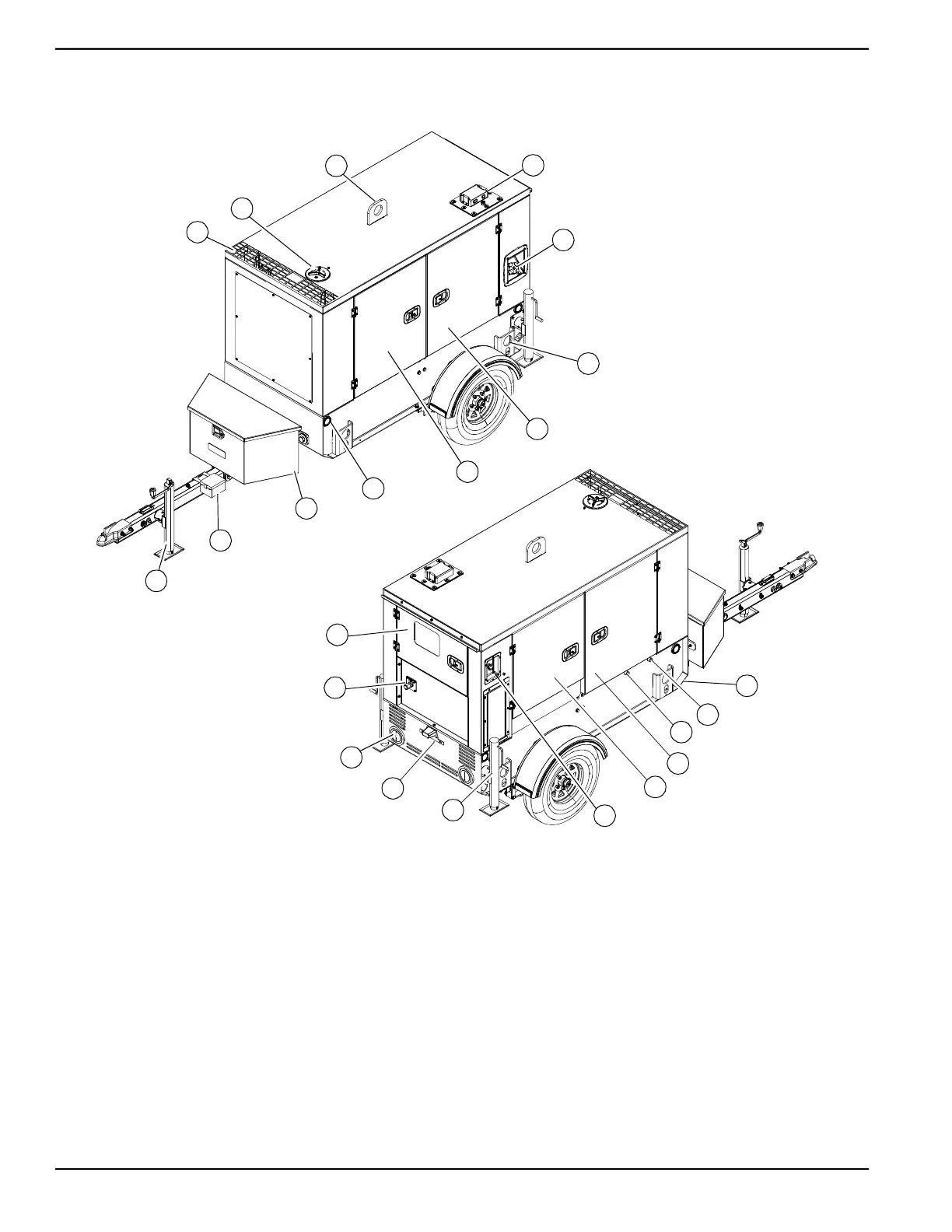

Figure 2-3. Exterior Components
A Hot air/exhaust duct M Fuel drain (unit underside)
B Coolant fill port N Coolant drain
C Unit lift point O Engine oil drain
D Telemetry (if equipped) P Engine access door
E Fuel fill port Q Breaker and connection panel access door
F Tie-down point (4 locations) R Emergency stop switch
G Generator access door S Stabilizer jack (2 locations) (if equipped)
H Engine access door T License plate holder
I Side marker light (4 locations) U Tail light (2 locations)
J Tool box (if equipped) V Auxiliary fuel inlet (if equipped)
K Battery for breakaway brakes (if equipped) W Control panel access door
L Tongue jack
