Owner’s Manual for Mobile Generator 51

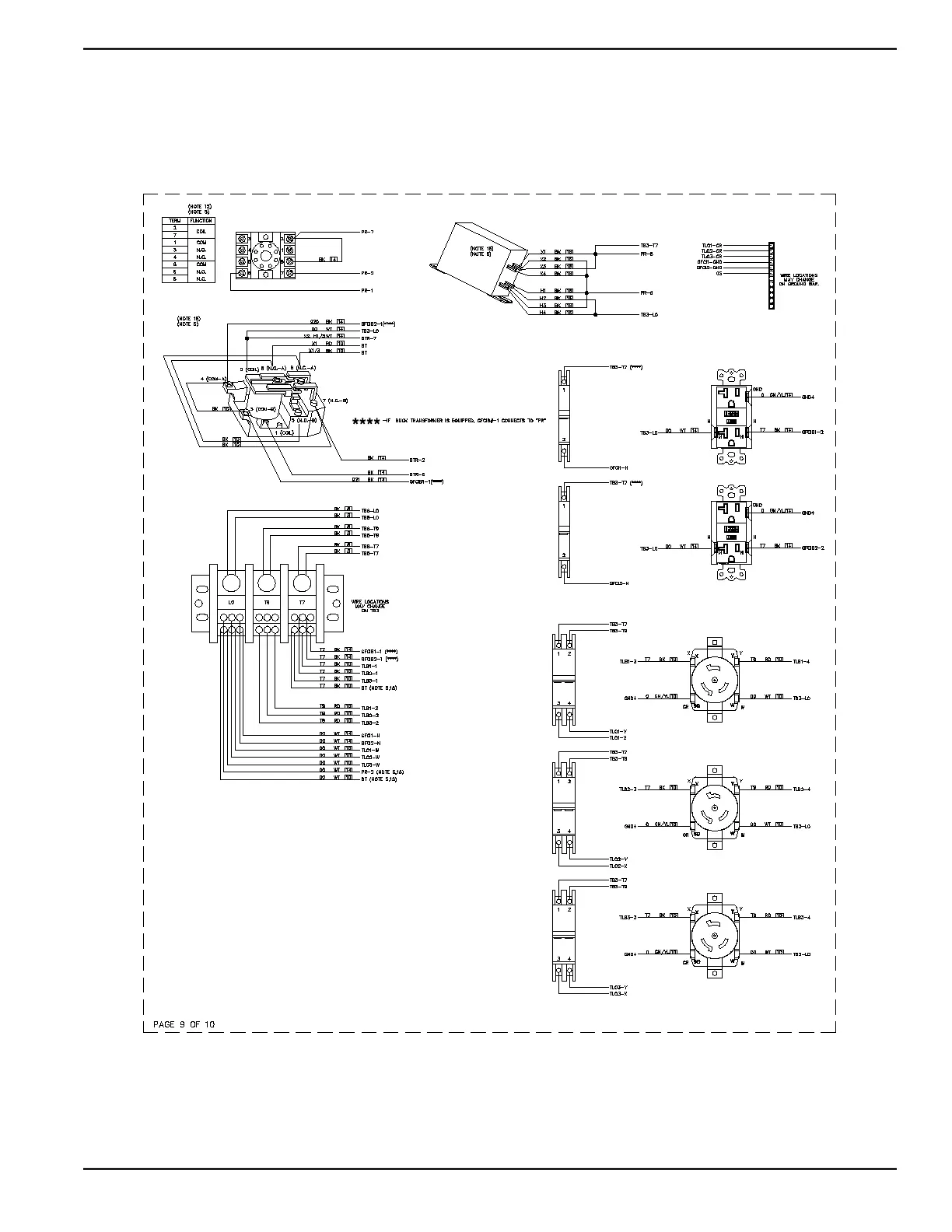

Wiring Diagrams
BTR
PR
BT
GFCI1
TLO1
TLB1
GFCIB1
TB3
TLB2
TLB3
TLO2
TLO3
GND4
GFCIB2
GFCI2
COMPONENTS LOCATED IN GENERATOR BOX
GROUP G
WIRING - DIAGRAM
MDG25IF4-STD3
DRAWING #: A0000430348
REVISION: B
DATE: 4/17/2020
PAGE 9 OF 10
