18 Mobile Link

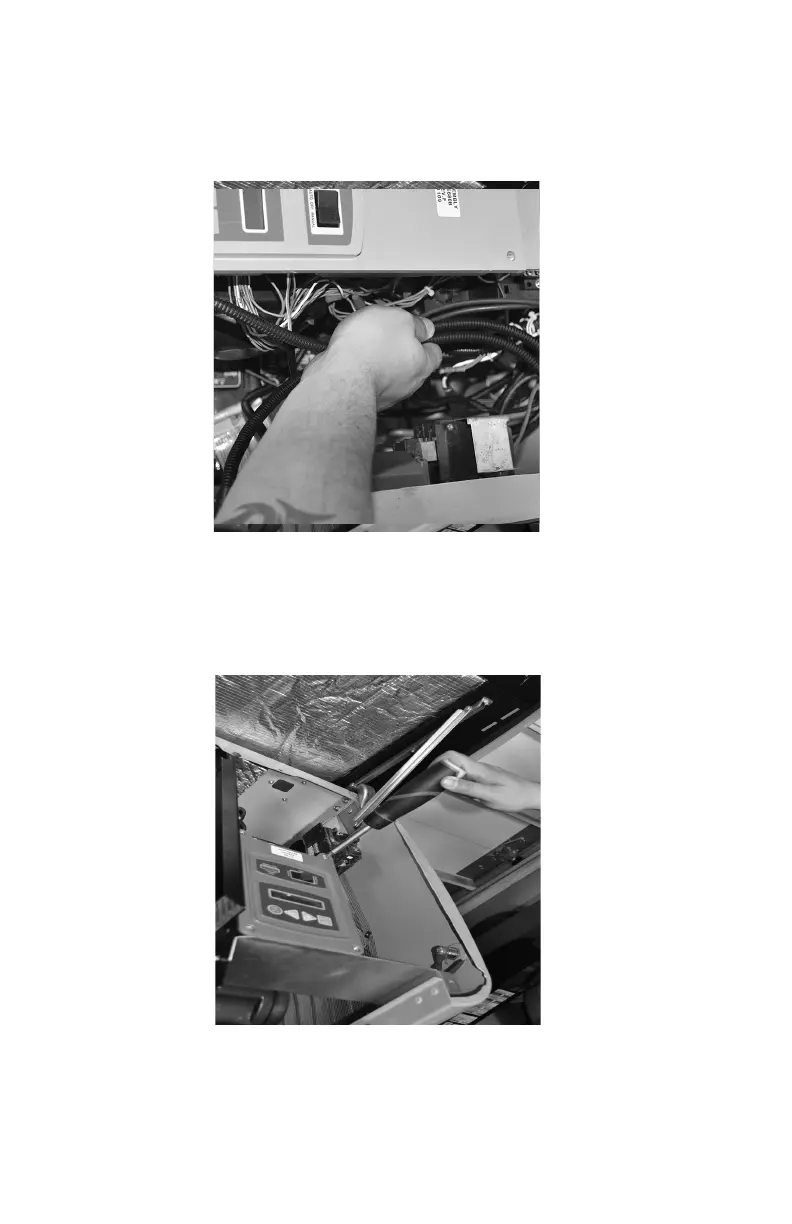

16. Route the harness along the wire shelf as shown in Figure
3.12. Position with other wire looms to provide additional sup-
port.
Figure 3.12 - Routing Harness.
17. On 2008 Home Standby Units only, remove the fasteners that
secure the controller. This is not necessary on any other units
to access the plug location. See Figure 3.13.
Figure 3.13 - Removing Controller Fasteners.
