Generac Power Systems OneWASH User Manual

Set-up

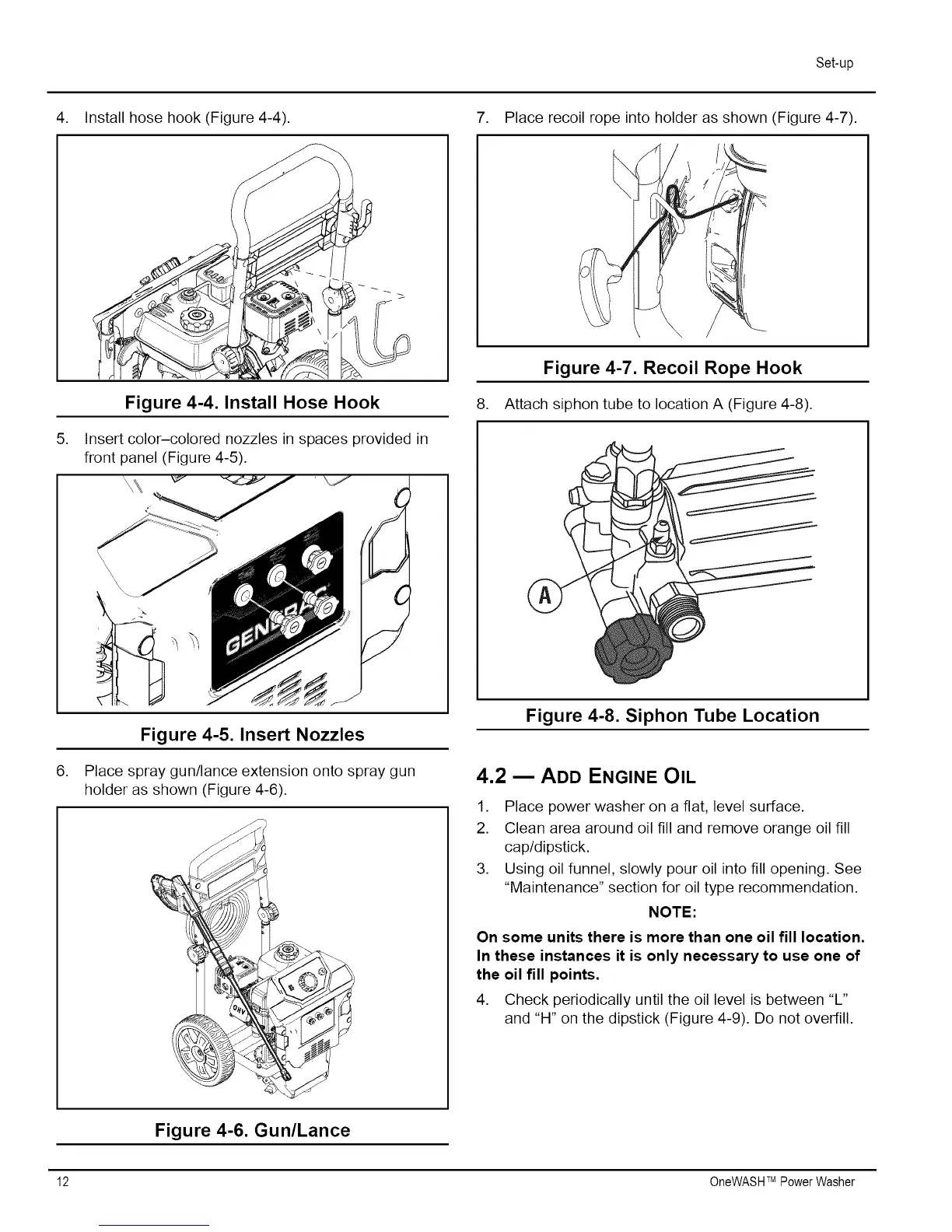

4. Install hose hook (Figure 4-4). 7. Place recoil rope into holder as shown (Figure 4-7).
,
Figure 4-4. Install Hose Hook
Insert color-colored nozzles in spaces provided in
front panel (Figure 4-5).
Figure 4-5. Insert Nozzles
6. Place spray gun/lance extension onto spray gun
holder as shown (Figure 4-6).
Figure 4-7. Recoil Rope Hook
8. Attach siphon tube to location A (Figure 4-8).
Figure 4-8. Siphon Tube Location
4.2 m ADD ENGINE OIL
1. Place power washer on a flat, level surface.
2. Clean area around oil fill and remove orange oil fill
cap/dipstick.
3. Using oil funnel, slowly pour oil into fill opening. See
"Maintenance" section for oil type recommendation.
NOTE:
On some units there is more than one oil fill location.
In these instances it is only necessary to use one of
the oil fill points.
4. Check periodically until the oil level is between "L"
and "H" on the dipstick (Figure 4-9). Do not overfill.
Figure 4-6. Gun/Lance
12 OneWASHTMPowerWasher
