Installing PWRcell Inverter
Installation Manual for Generac PWRcell Inverter 11
Section 4: Installing PWRcell Inverter
PWRcell Inverter Dimensions and Mounting Clearances

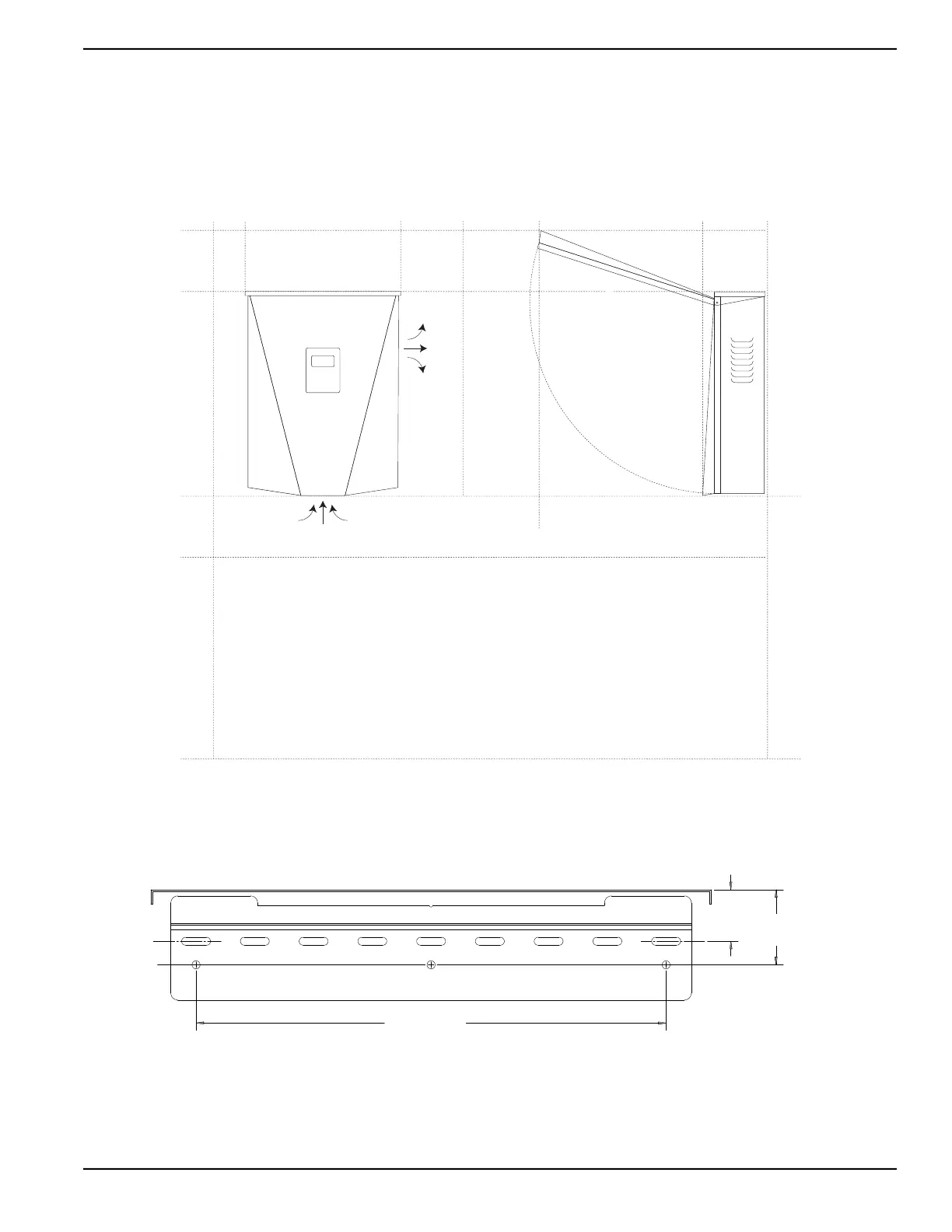

Figure 4-1. PWRcell Inverter Dimensions and Mounting Clearances
Mounting Bracket Dimensions
Figure 4-2. Mounting Bracket Dimensions
4 in
(10.16 cm)
28 in
(71.15 cm)
8 in
(20.32 cm)
28-1/2 in
(72.4 cm)
36 in
(91.44 cm)
8 in
(20.32 cm)
19-1/4 in
(48.9 cm)
8-1/2 in
(21.6 cm)
20 in
(50.8 cm)
8 in
(20.32 cm )
24-1/2 in
(62.23 cm)
010508
16 in
(40.64 cm)
1-1/2 in
(3.81 cm)
2-3/8 in
(6.03 cm)
009990
