Generac Power Systems XT-EFI Series User Manual

Section 7 Electrical Data
Diagnostic Repair Manual 93

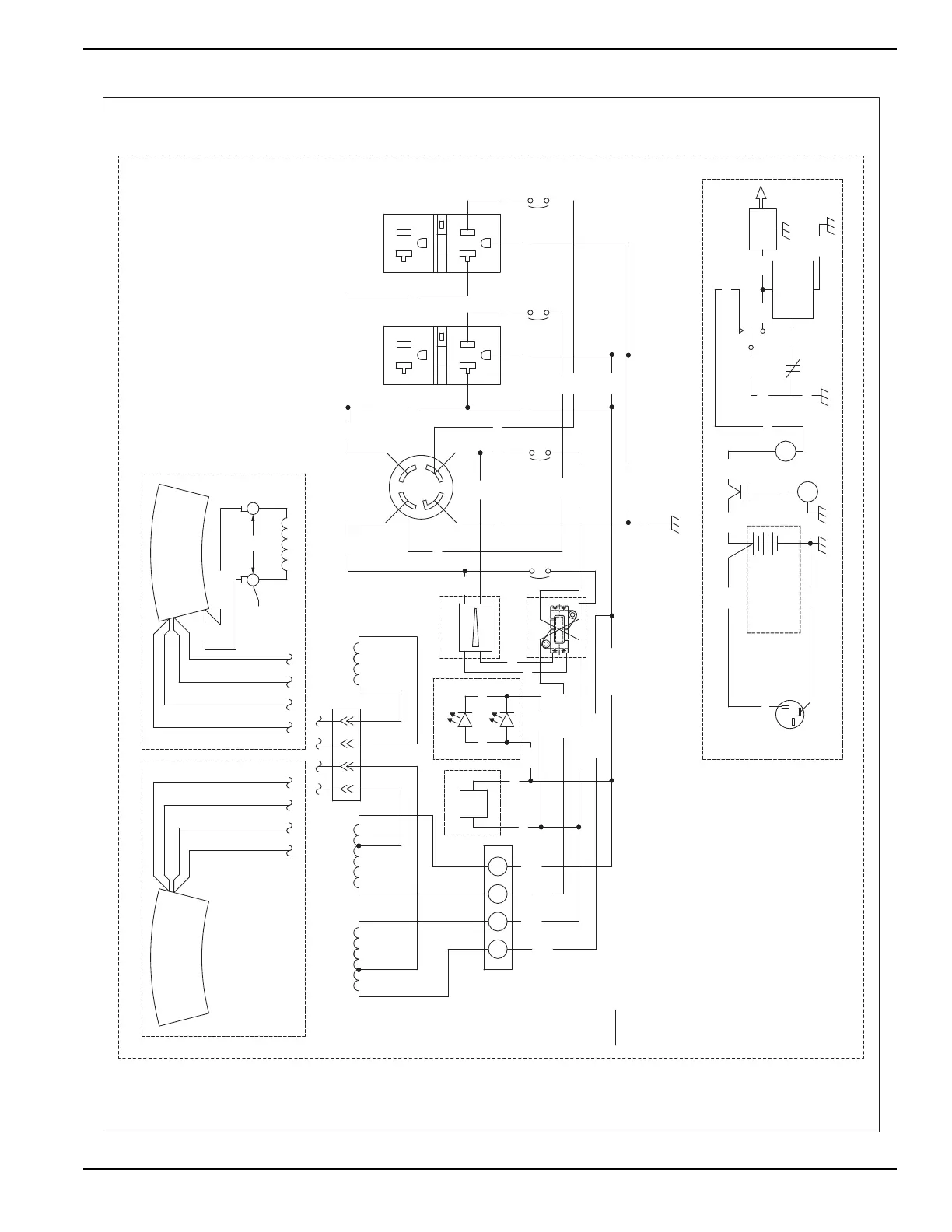

Wiring Diagram and Electrical Schematic, XG7000E Drawing No. 0H3525-C
SCHEMATIC - DIAGRAM
GP/XG5000-GP/XG8000
DRAWING #: 0H2780
REVISION:C
DATE: 8/21/09
TESTRESET
TESTRESET
TEST RESET
TEST RESET
FOR BRUSH TYPE ALTERNATOR
FOR CAPACITOR EXCITATION TYPE ALTERNATOR
ENGINE WIRING
CLOSEST
TO BEARING
LEGEND: AVR - AUTOMATIC VOLTAGE REGULATOR
BA - BRUSH ASSEMBLY
C1 - AVR OR CAP CONNECTOR CAP - CAPACITOR CB 1 - *PUSH BUTTON CIRCUIT BREAKER CB 2 - *PUSH BUTTON CIRCUIT BREAKER CB 3 - 20AMP PUSH BUTTON CIRCUIT BREAKER CB 4 - 20AMP PUSH BUTTON CIRCUIT BREAKER
IM - IGNITION MODULE ICT - IDLE CURRENT TRANSFORMER (IF EQUIPPED)
HM - HOUR METER (IF EQUIPPED) LED - PANEL ILLUMINATION (IF EQUIPPED) LOP - LOW OIL PRESSURE PBAR - POWERBAR LOAD INDICATOR (IF EQUIPPED) RCT A - RECEPTACLE [120/240VAC 30A NEMA L14-30R] RCT B - RECEPTACLE [120VAC 20A GFCI NEMA 5-20R] RCT C - RECEPTACLE [120VAC 20A GFCI NEMA 5-20R]
SC - STARTER CONTACTOR
SM - STARTER MOTOR SP - SPARK PLUG SW1 - START-RUN-STOP SWITCH
TB - ALTERNATOR TERMINAL BLOCK
* - 5kW AND 5.5kW = 25AMP; 6.5kW, 7.0kW = 30AMP
SP
12V
ROTOR
BA
GRN/YEL
GRN/YEL
RED
PBAR
CAP AVR
RED(+)
WHT
POWER WINDING
C1
WINDING
EXCITIATION
LED
RED
(WHT)
TB
22(WHT)
RED
RED
44(BLK)
33(WHT)
2244
L1 L2 R2R1
HM
BLK
WHT
(WHT)(BLK)33
(RED)
11
RED
BLK
BLK
RED
20A
CB 2
11(RED)
BLK
ICT
RED
RED
BATTERY
30
WHT
120/240V
120V/20A
TWISTLOCK
GFCI
WHT
120V/20A
GFCI
WHT
RCT C
RCT B
WHT
CB 1
WHT
GRN/YEL
BLK
BLK
RCT A
BLK
20A
RED
44(BLK)
RED BLK
GRN/YEL
RED BLK
CB 4
CB 3
SW1
GND
GRN/YEL
BLK
RED
RED
SC
BLK
BLK
BLK
WHTWHT IM
2
3
1
CHARGER
AC BATTERY
BLK
SUPPLIED WITH UNIT
16 SM
SC
BLK
BLK
LOP
LOW OIL
MODULE
SHUTDOWN
GRN
20A
20A
