Appendix
5.2 Engineering Documentation

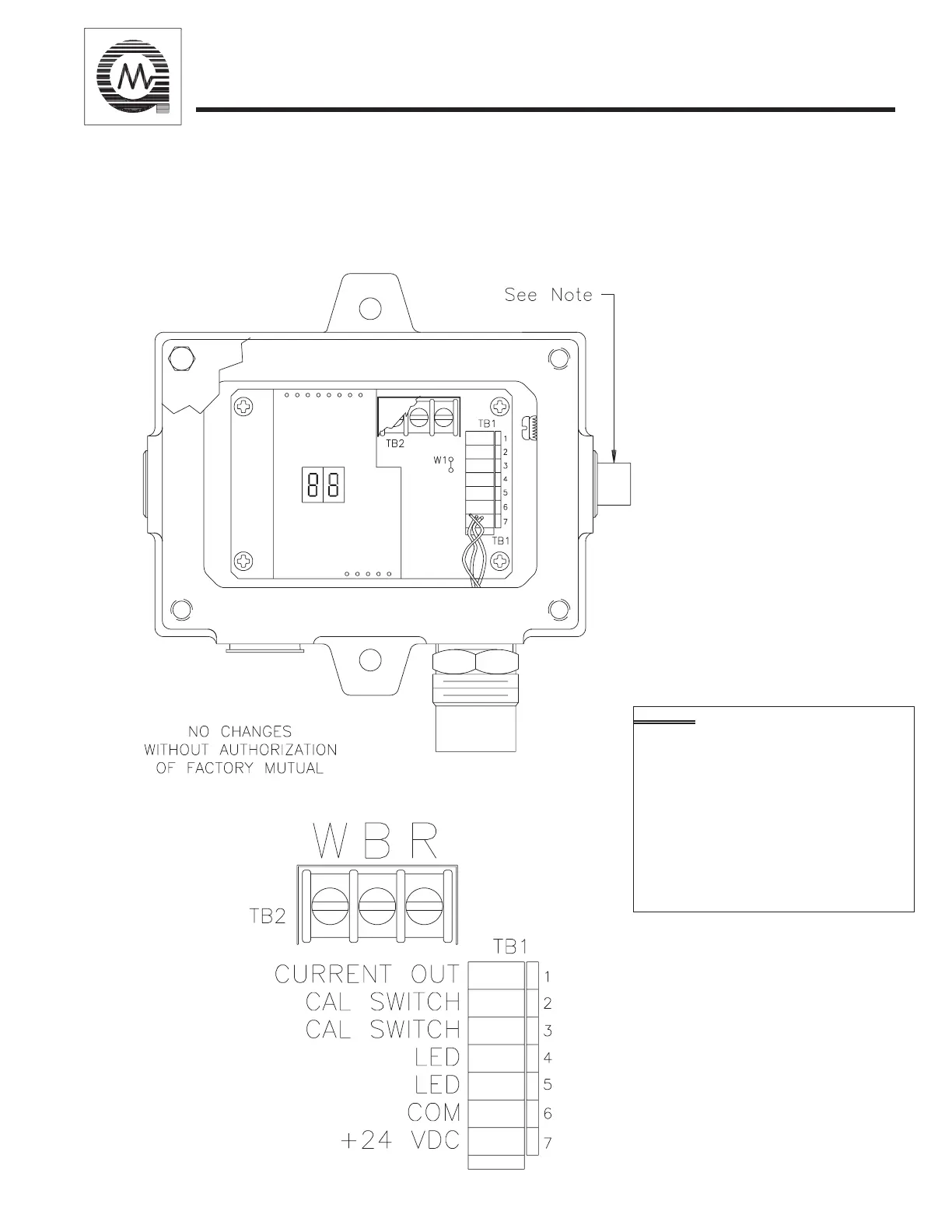

5.2.1 Termination & Outline Drawings
19
NOTE: The Calibration Switch is
only available on the Model S104
without a display. If the calibra-
tion switch is not present, it will
be replaced with a housing entry
plug. If the Model S104 is or-
dered with a display, the TB1 des-
ignations for positions 2, 3, 4 & 5
will not be used.
GENERAL MONITORS
Model S104
figure 19
