General MC-100 User Manual

Effective: October
1, 1997

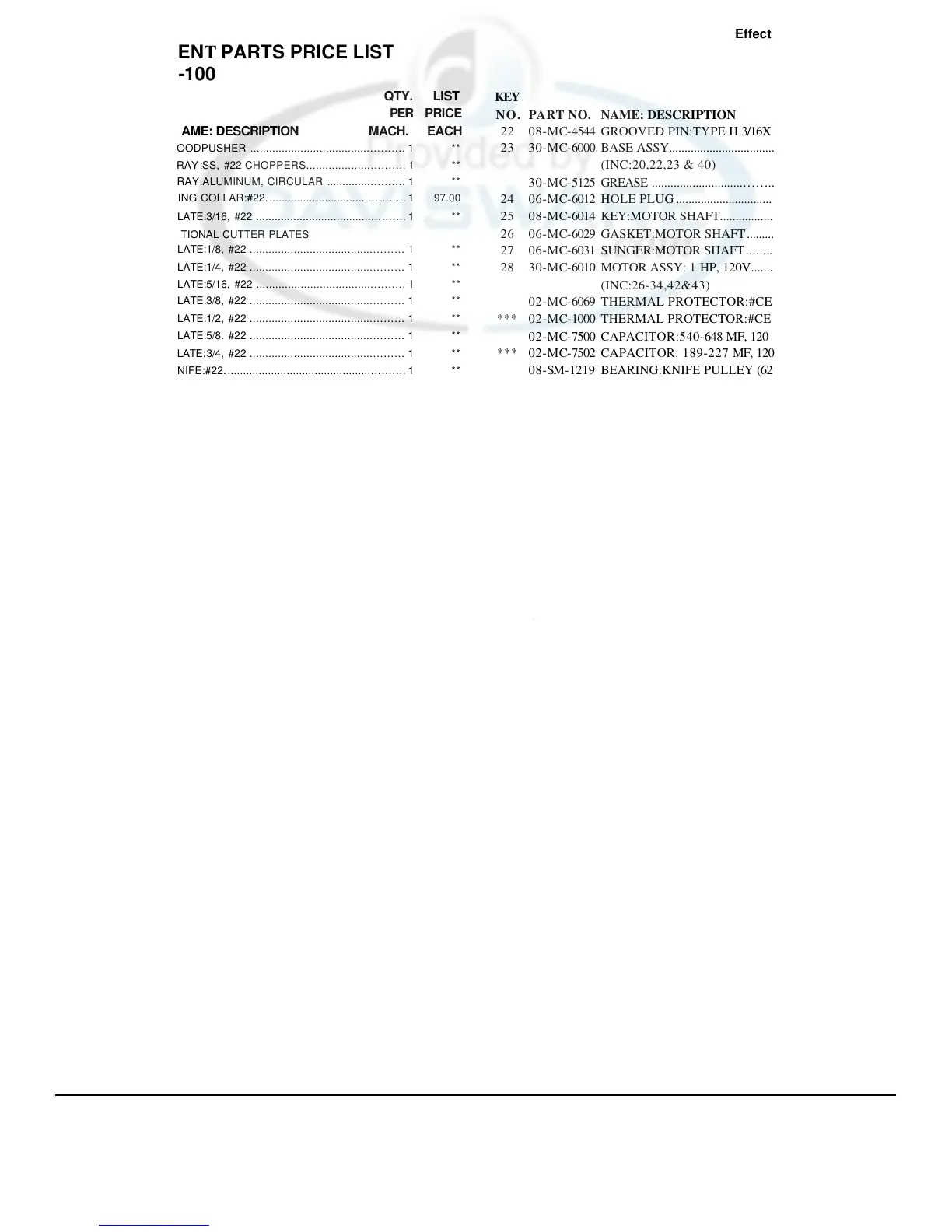

REPLACEMENT PARTS PRICE LIST
MODEL: MC-100
QTY. LIST
KEY PER PRICE
NO. PART NO. NAME: DESCRIPTION MACH. EACH
1 06-MC-1010 FOODPUSHER ......................................………. 1 **
2 04-MC-6044 TRAY:SS, #22 CHOPPERS....................………. 1 **
* 30-MC-6043 TRAY:ALUMINUM, CIRCULAR ..............………. 1 **
3 30-MC-4539 RING COLLAR:#22.................................……….. 1 97.00
4 09-MC-4542 PLATE:3/16, #22 .....................................………. 1 **
OPTIONAL CUTTER PLATES
09-MC-4541 PLATE:1/8, #22 .......................................……… 1 **
09-MC-4543 PLATE:1/4, #22 .......................................……… 1 **
09-MC-4544 PLATE:5/16, #22 .....................................……… 1 **
09-MC-4545 PLATE:3/8, #22 .......................................……… 1 **
09-MC-4546 PLATE:1/2, #22 .......................................……… 1 **
09-MC-4547 PLATE:5/8. #22 .......................................……… 1 **
09-M04548 PLATE:3/4, #22 .......................................……… 1 **
5 09-MC-4540 KNIFE:#22...............................................………. 1 **
6 08-MC-4543 STUD:FEED SCREW, #22 .....................………. 1 21.00
7 30-MC-4538 FEEDSCREW ASSY:#22........................………. 1 197.00
(INC:6 & 7)
8 06-MC-4547 FIBER WASHER:#22..............................……….. 1 2.00
9 08-MC-4548 BUSHINQ:THRUST, #22 HEAD .............………. 1 9.00
10 08-MC-4544 GROOVED PIN:TYPEH 3/16X7/8………………. 1 2.00
11 30-MC-6046 HEAD ASSY:#22.....................................………. 1 342.00
(INC:9-12)
30-MC-022B HEAD ASSY COMPLETE:#22................………. 1 **
(INC:3-12)
30-22CG-CT COMPLETE CUTTING GROUP:#22 ......……… 1 **
(INC:1.2A&3-12)
12 08-MC-4546 GROOVED PIN:TYPEH 3/8X3/4.........…………. 1 2.00
13 06-MC-5713 BUMPER.................................................………. 2 2.00
14 30-MC-6024 TRAY SUPPORT BRKT ASSY...............………. 1 46.00
(INC:13&14)
15 08-MC-499 SCREW:HXHD 1/2-13X3/4 ...................……….. 1 2.00
16 08-MC-698 WASHER:LOCK SPUT, 1/2" ..................………. 1 1.00
17 08-MC-4560 BUSHING:OUTPUT GEAR, #22 COVER………. 1 13.00
18 30-MC-6017 OUTPUT GEAR ASSY:#22..........………............ 1 87.00
19 09-MC-6004 MOTOR PINION ..........................………........... 1 25.00
20 08-MC-707 BUSHING:GEARBOX. .................………............ 3 6.00
21 08-BC-72 SCREW:SCKT HD 3/8-16 X 1......………............ 4 1.00
QTY. LIST
KEY PER PRICE
NO. PART NO. NAME: DESCRIPTION MACH. EACH
22 08-MC-4544 GROOVED PIN:TYPE H 3/16X7/8………… 2 2.00
23 30-MC-6000 BASE ASSY............................................……. 1 355.00
(INC:20,22,23 & 40)
30-MC-5125 GREASE .............................……..................... 1 16.00
24 06-MC-6012 HOLE PLUG ................................……........... 1 1.00
25 08-MC-6014 KEY:MOTOR SHAFT..................…............... 1 2.00
26 06-MC-6029 GASKET:MOTOR SHAFT..........…............... 1 4.00
27 06-MC-6031 SUNGER:MOTOR SHAFT.........……............ 1 2.00
28 30-MC-6010 MOTOR ASSY: 1 HP, 120V..........…............. 1 632.00
(INC:26-34,42&43)
02-MC-6069 THERMAL PROTECTOR:#CEJ51CB …...... 1 67.00
*** 02-MC-1000 THERMAL PROTECTOR:#CEJ53DD …...... 1 67.00
02-MC-7500 CAPACITOR:540-648 MF, 120V........….........1 32.00
*** 02-MC-7502 CAPACITOR: 189-227 MF, 120V.............….. 1 3.00
08-SM-1219 BEARING:KNIFE PULLEY (6203) ..........…. 2 3..00
02-MC-1294 SPRING SET STARTING SWITCH………... 1 2.00
29 05-6-1501 SWITCH:TOGGLE, 120V........................…... 1 16.00
30 02-MC-6067 PLATE:SWITCH MTG.............................…... 1 13.00
*** 02-MC-6056 HOUSING:SWITCH (CENTURY MOTOR).. 1 12.00
31 05-6-4581 GUARD:TOGGLE SWITCH....................…... 1 2.00
32 12-6-1779 LABELON/OFF ......................................…… 1 1.00
33 06-6-2192 RUBBER BOOT: TOGGLE SWITCH ......…. 1 2.00
34 06-MC-6012 HOLE PLUG ...........................................…… 5 1.00
35 08-MC-584 SCREW:SCKT HD 1/4-20 X 7/8 SS………… 5 1.00
36 30-MC-6016 COVER ASSY:#22..................................……. 1 192.00
(INC:17,20&36)
37 06-MC-6011 GASKET:COVER....................................…… 1 13.00
38 08-MC-519 THUMBSCREW......................................…… 1 13.00
39
30
-
MC
-
605A
INTERMEDIATE GEAR ASSY ...............…. 1 102.00
40 06-MC-1059 FOOT W/STUD.......................................…… 4 5.00
41 02-MC-5519 CORDSET ..............................................…… 1 18.00
42 02-MC-458 STRAIN RELIEF .....................................….. 1 3.00
* 09-MC-4580 SAUSAGE TUBE:#22 .............................….. 1 **
* 12-6-1760 LABELCORDSET WARNING................….. 1 N/C
* 12-MC-6063 LABEL-SAFETY (CHOPPERS) ..............…. 1 N/C
* 12-MC-6065 LABELSAFETY(CHOPPERS) ..............…… 1 N/C
* 12-MC-6071 LABEL-CHOPPER HEAD ASSEMBLY...… 1 N/C
* 12-SM-1755 LABELELECTRICAL WARNING ...........… 1 N/C
* 12-SM-1756 LABEL-READ SAFETY INSTRUCTIONS .. 1 N/C
* Not pictured.
** Refer to current equipment Price List for pricing of these items.
*** Call factory for Century/Gould motor parts.
10.06.97
General Slicing/Red Goat Disposers •1152 Park Ave • P.O. Box 428 • Murfreesboro, Tennessee 37133-0428 • (615) 893-4820

General MC-100 Specifications

General

Brand	General
Model	MC-100
Category	Meat Grinder
Language	English
