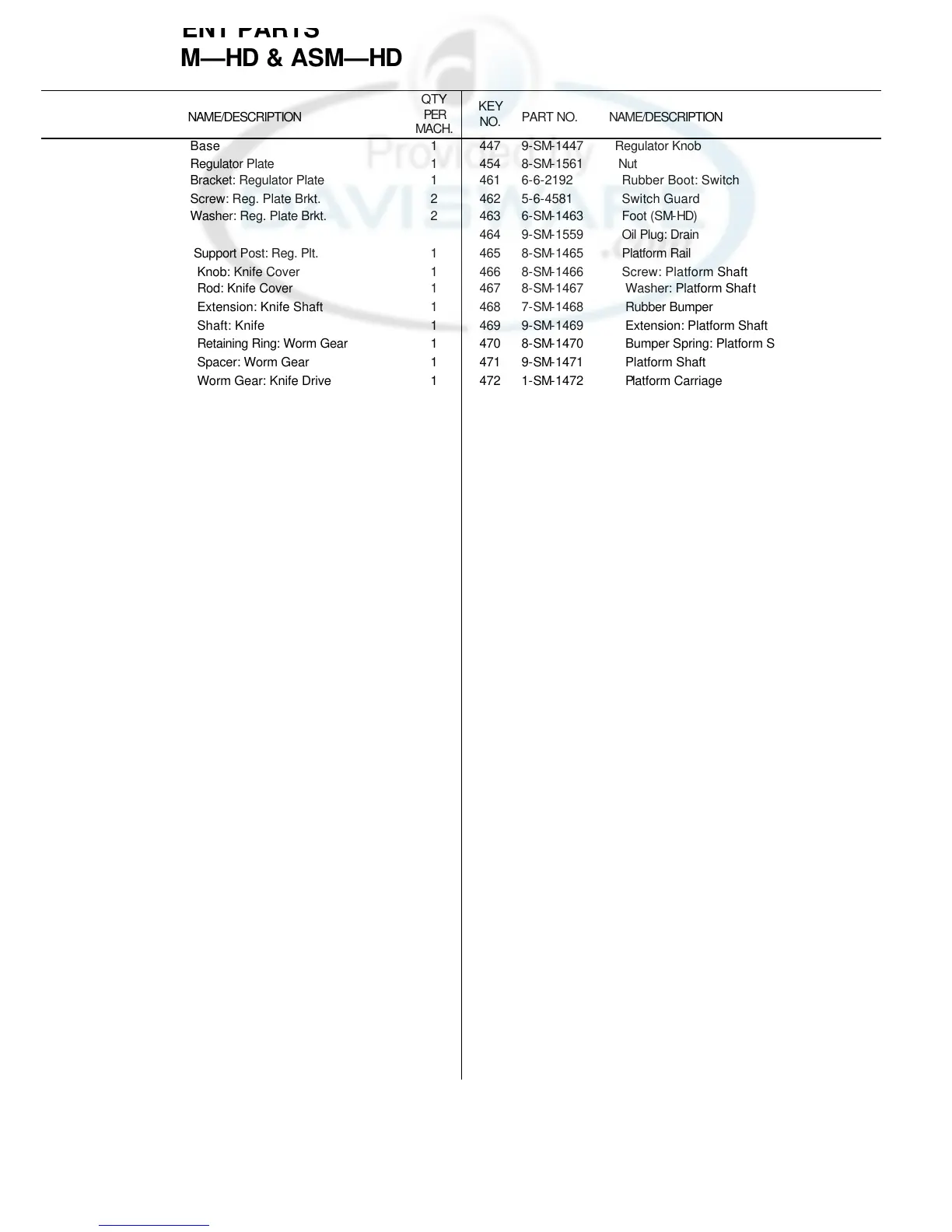

MODELS: SM—HD & ASM—HD
KEY
NO.
PART NO. NAME/DESCRIPTION
QTY
PER
MACH.
KEY
NO.
PART NO. NAME/DESCRIPTION
QTY
PER
MACH.
401
23-SM-1401 Base 1 447 9-SM-1447 Regulator Knob 1
402
23-SM-1402 Regulator Plate 1 454 8-SM-1561 Nut 3
403
23-SM-1403 Bracket: Regulator Plate 1 461 6-6-2192 Rubber Boot: Switch 1
404
8-SM-1404 Screw: Reg. Plate Brkt. 2 462 5-6-4581 Switch Guard 1
405
8-SM-1405 Washer: Reg. Plate Brkt. 2 463 6-SM-1463 Foot (SM-HD) 4
464 9-SM-1559 Oil Plug: Drain 1
407
9-SM-1407 Support Post: Reg. Plt. 1 465 8-SM-1465 Platform Rail 1
408
9-SM-1408 Knob: Knife Cover 1 466 8-SM-1466 Screw: Platform Shaft 2
409
9-SM-1409 Rod: Knife Cover 1 467 8-SM-1467 Washer: Platform Shaft 2
410
9-SM-1410 Extension: Knife Shaft 1 468 7-SM-1468 Rubber Bumper 2
411
9-SM-1411 Shaft: Knife 1 469 9-SM-1469 Extension: Platform Shaft 1
412
8-SM-1412 Retaining Ring: Worm Gear 1 470 8-SM-1470 Bumper Spring: Platform Shaft 1
413
8-SM-1413 Spacer: Worm Gear 1 471 9-SM-1471 Platform Shaft 1
414
9-SM-1414 Worm Gear: Knife Drive 1 472 1-SM-1472 Platform Carriage 1
415
7-SM-1415 Seal: Knife Hub 1 473 5-6-1501 Switch: 115 Volt 1
416
6-SM-1713 Pad: Knife Drive Gear 3 * 5-6-1507 Switch: 220 Volt 1
417
4-SM-1696 Knife Hub (Std Knife) 1 474 5-SM-1503 Running Light: 115 Volt 1
* 4-SM-1698 Knife Hub (Long Taper) 1 * 5-SM-1300 Running Light: 220 Volt 1
** 30-SM-1696 Knife Hub Assembly: (Std Knife)
* 8-SM-1504 Push-On Fastener: Light 1
** 30-SM-1698 Knife Hub Assembly: (Lg Taper)
476 5-SM-1476 Capacitor: 115 Volt 1
(Inc: 411-422, 606,607) 1 * 5-SM- 860 Capacitor: 220 Volt 1
418
8-SM-1418 Bearing: Knife 2 477 8-SM-1477 Bracket: Capacitor 1
419
8-SM-1419 Spacer: Knife Bearing 1 478 5-SM-1239 Cordset: 115 Volt 1
420
7-SM-1420 Bearing Retainer 1 479 8-SM-1240 Wire Clamp: Cordset 1
421
8-SM-1421 Nut: Knife Shaft 1 483 9-SM-1483 Handle: Food Pusher 1
422
8-SM-1422 Set Screw: Knife Shaft 1 493 23-SM-1493 Bracket: Platform 1
423
9-SM-1423 Knife: Stainless Steel (Std) 1 494 9-SM-1494 Handle: Platform 1
* 9-SM-1712 Knife: S/S (Long Taper) 1 * 8-SM-1495 Screw: Handle 2
424
8-SM-1424 Screw: Standard Knife 1 497- 9-SM-1497 Roller Bracket: Platform 1
* 8-SM-1032 Screw: Long Taper Knife 1 ** 30-SM-1497 Roller Brkt. Assy.: Inc. Roller 1
425
8-SM-1425 Spacer: Knife Cover 1 504 23-SM-1504 Sharpener Bracket 1
426
23-SM-1426 Knife Cover 1 505 8-SM-1505 Washer: Sharpener Brkt 1
427
8-SM-1427 Thumbscrew: Knife Cover 2 506 8-SM-1506 Screw: Sharpener Brkt 1
428
8-SM-1568 Screw: Motor Cover 2 507 8-SM-1542 Lug: Sharpener Brkt 1
429
23-SM-1429 Motor Cover 1 508 8-SM-1508 Stop Nut: Sharpener Brkt. 1
430
8-SM-1430 crew: Motor Mounting 4 509 9-SM-1509 Rod: Lock Knob 1
431
8-SM-1431 Washer: Mtr. Mtg. Screw 4 510 9-SM-1510 Shaft: Sharpener Frame 1
432
30-SM-1697 Motor Assy: 115V, 50/60 HZ 1 511 8-SM-1557 Stop Screw: Shrpnr Frm 1
* 30-SM-1430 Motor Assy: 220V, 50/60 HZ 1 512 8-SM-1512 Jam Nut: Stop Screw: 1
433
7-SM-1433 Seal: Motor Shaft 1 513 23-SM-1513 Sharpener Housing 1
434
7-SM-1434 Gasket: Motor 1 ** 30-SM-1513 Sharpener Assy, Complete 1
435
9-SM-1717 Drive Gear 1 514 8-SM-1514 Washer: Sharpener Hsg. 1
436
8-SM-1436 Key: Drive Gear 1 515 8-SM-1515 Nut: Sharpener Hsg. 1
437
8-SM-1437 Spacer: Spring 1 516 9-SM-1516 Knob: Sharpener Hsg. 1
438
8-SM-1438 Spring: Drive Gear 1 580 8-SM-1525 Nut: Sharpener Frame 1
439
8-SM-1439 Retaining Nut: Mtr. Shaft 1 581 8-SM-1021 Retaining Ring: Stone Shaft 2
440
9-SM-1440 Knife Wiper 1 582 9-SM-1705 Sharpener Frame 1
441
8-SM-1441 Thumb Screw: Knife Wiper 1 583 8-SM-1523 Spring: Stone Shaft 2
442
9-MM-2099 Strain Relief Bushing 1 584 9-SM-1721 Shaft: Sharpening Stone 1
443
9-SM-1443 Bushing: Regulator Knob 1 585 9-SM-1722 Button: Deburring Stone 1
445
9-SM-1445 Ratchet Pin Assy. W/ Jam Nut 1 586 8-SM-1723 Set Screw: Dbrg Stone Button 1
