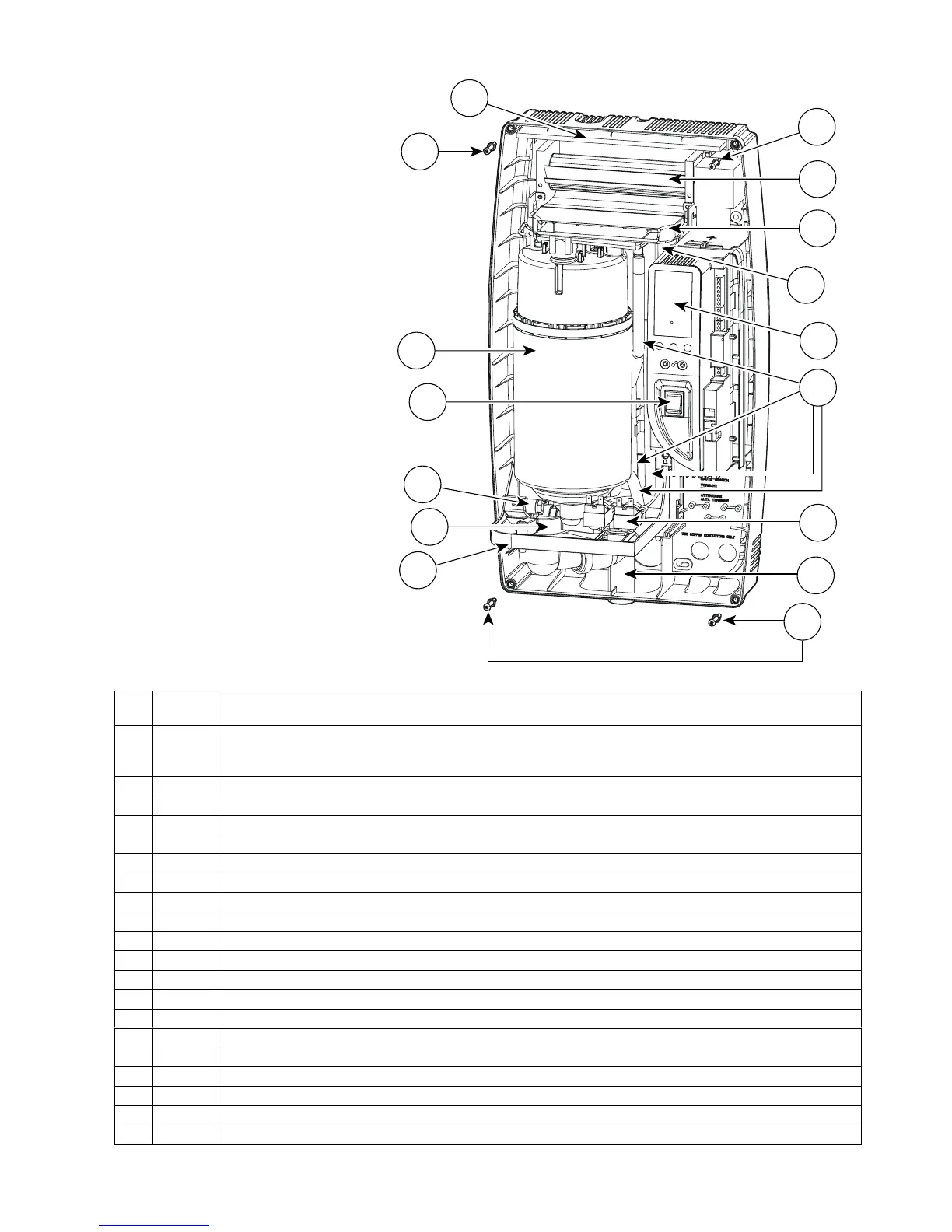

7.3 Replacement Parts
STRAP TNEMECALPER
Item
Part
No. Description
1
See
table
below STEAM GENERATION CYLINDER
2 7532 15-1 CONTROL MODULE 5,5 Lbs/Hr 110/1
2 7533 35-1 CONTROL MODULE 12 Lbs/Hr 230/1
3 7551 35-18 ON/OFF SWITCH
4 7534 15-2 ROOM BLOWER ASSEMBLY 110/1
4 7535 35-2 ROOM BLOWER ASSEMBLY 230/1
5 7544 35-19 BLOWER FILTER KIT
6 7536 35-20 INTERNAL STEAM DISTRIBUTOR MANIFOLD FOR ROOM VERSION
7 7537 15-3 FILL/TEMPERING VALVE ASSEMBLY 110/1
7 7538 35-3 FILL/TEMPERING VALVE ASSEMBLY 230/1
8 7539 15-4 DRAIN VALVE ASSEMBLY 110/1
8 7541 35-4 DRAIN VALVE ASSEMBLY 230/1
9 7542 35-21 90 DEGREE DRAIN ADAPTER
10 7548 35-22 FILL CUP
11 7546 35-23 INTERNAL HOSES KIT FOR ROOM VERSION
11 7547 35-24 INTERNAL HOSES KIT FOR DUCT VERSION
12 7553 35-25 COVER HOLDING SCREWS
V021 ROTCENNOC EVLAV NIARD 26-51 31
13 35-63 DRAIN VALVE CONNECTOR 230V
14 35-61 TANK SUPPORT BRACKET
