Elite Steam+03U22190 REV 2.1 9
A
B
C
D
E
F
A
B
C
D
A
B
C
Fig. 3.a
Fig. 3.b
Fig. 3.c
Fig. 3.d
Fig. 3.e

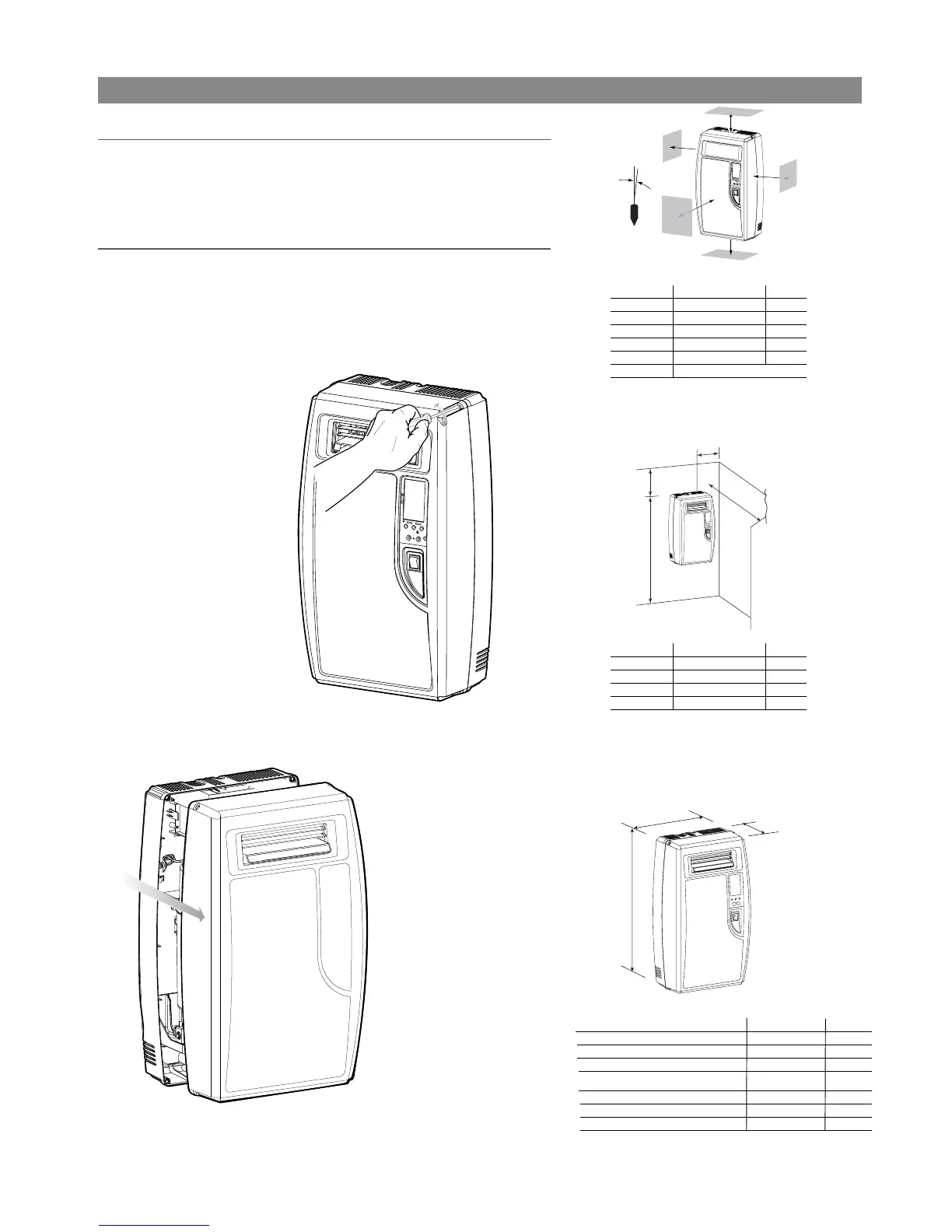

3.1 Positioning
The Elite Steam has been designed for wall mounting and, since it is an atmosheric
steam humidifier, should be placed close to the point where the steam will be used,
must be maintained around the unit for safety and maintenance.
3.2 Mounting
3.2.1 Removing the front cover
Be careful not to over-tighten the screws
.
Millimeters Inch
A
150 mm 6”
B
150 mm 6”
C
150 mm 6”
D
150 mm 6”
E
24” m m 0 0 6
F
max. 0.2 Degrees
Tab. 3.a
Millimeters Inch
A
B
C
K ilograms Pounds
Weight empty
Weight packaged
Weight installed with water
Tab.3.c
Duct Steam Injection
Room Steam Discharge
Unit Dimensions: Duct and Room Units
Millimeters Inch
A
150 mm 6”
B
1800 mm 72”
C
1800 mm 72”
D
600 mm 24”
Tab. 3.b
341 mm
204 mm
600 mm
13.4”
8.1”
23.7”
8kg
10kg
12kg
18lbs
22lbs
26lbs
The front cover is secured by four screws located at the four corners of the unit.
Use a phillips head screwdriver to remove the four cover screws. Then simply pull
the front cover away from the back part of the unit. Return it in reverse order.
