English
4.2 Transportation kit assembly

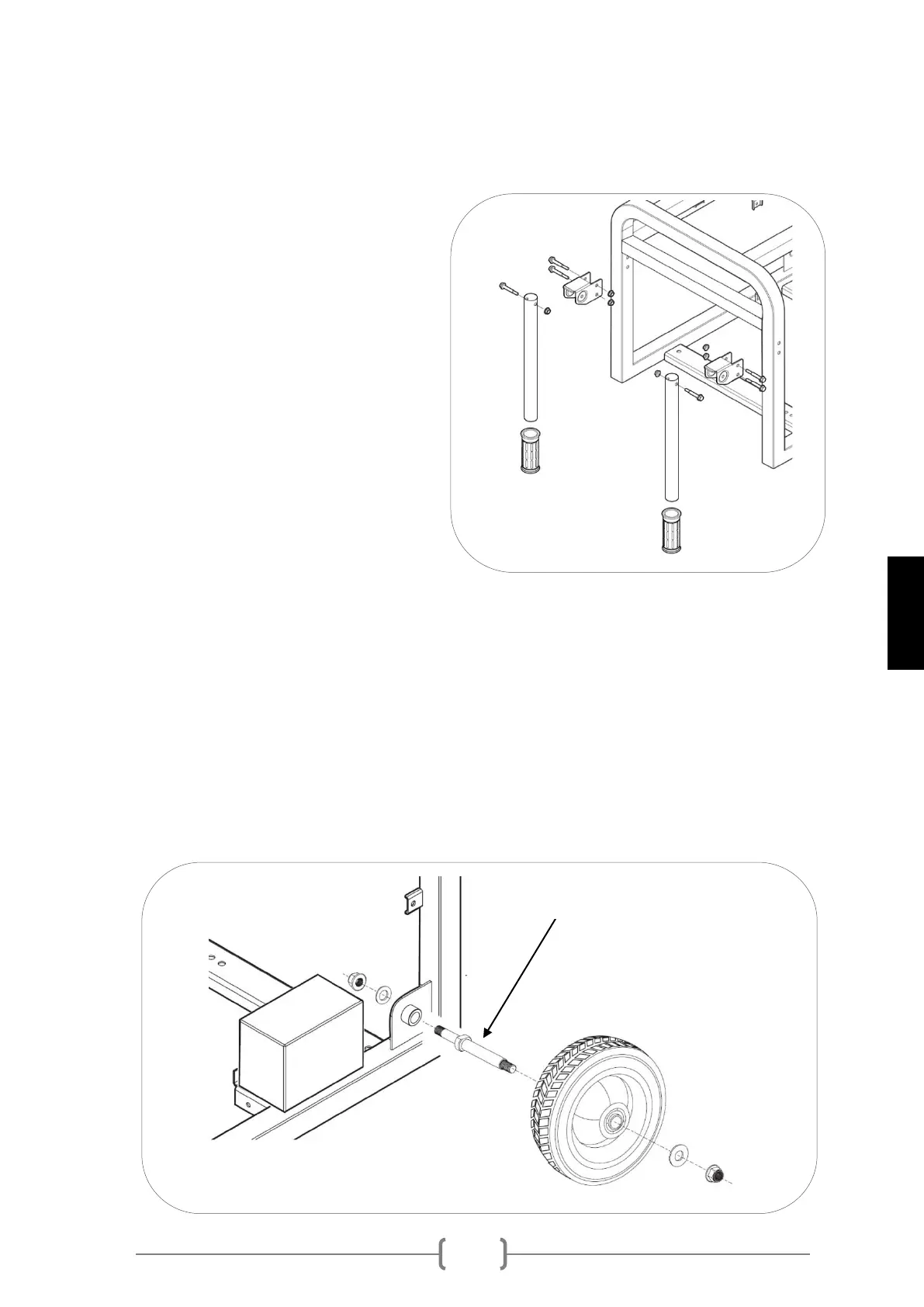

Fasten the transportation handle
hinges using 2 screws and bolts as
per the figure below.
Fasten the handles on the hinges
without tightening the screw
excessively so they can turn easily
and do not lock.
Fastening the transportation wheels:
According to the figure below, screw the wheel axles on the machine riser and
fasten with the nuts. Then introduce the wheels in the axles and fasten with the
washer and nut
The machine is equipped with 4 rubber feet. If you are using the transportation kit
frequently, you may remove the 2 rubber feet that are attached to the wheels. The
machine would be sitting on 2 rubber feet on one side and on the wheels on the
other.
However, if the machine will be at a single location, we recommend keeping 4
rubber feet.
