35

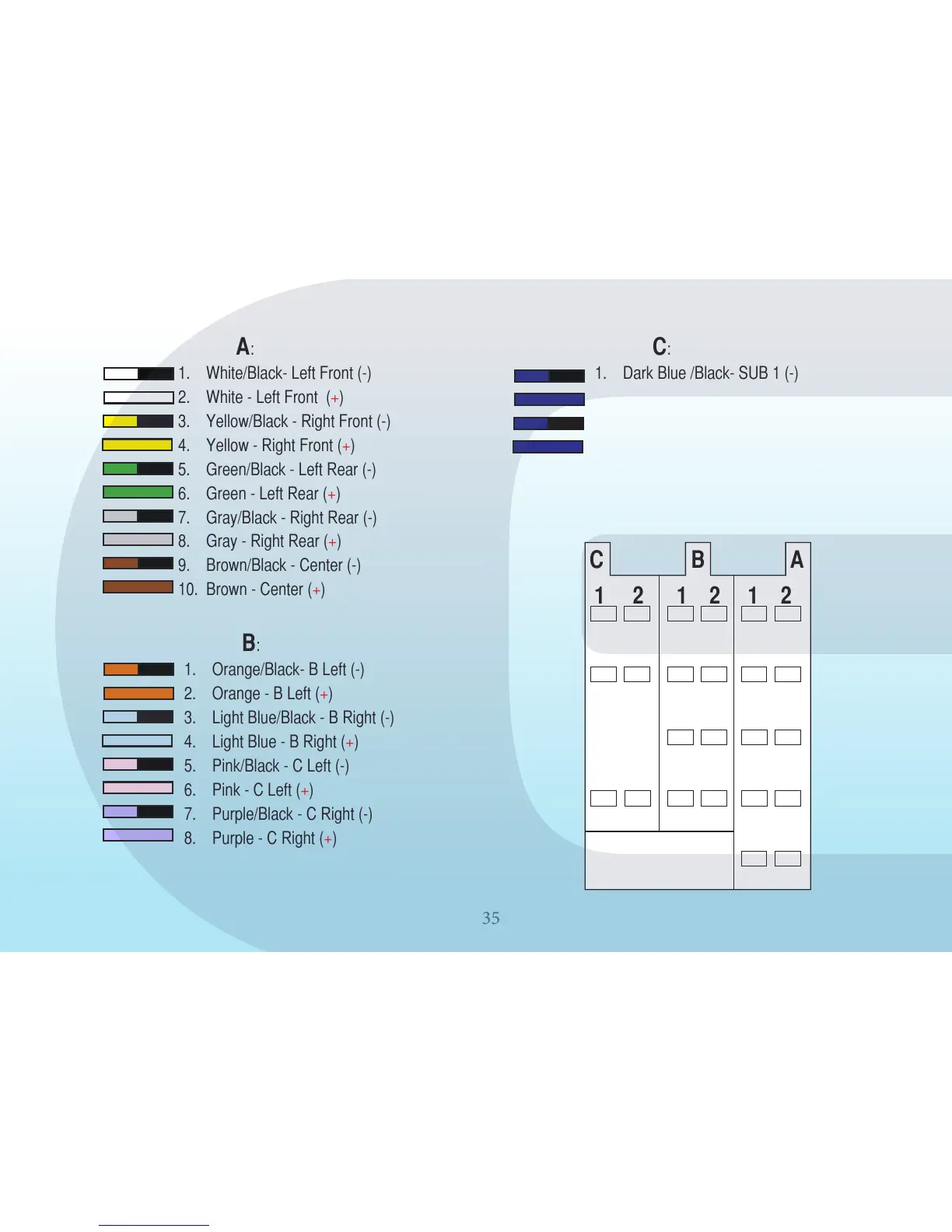

A:
1. White/Black- Left Front (-)
2. White - Left Front (+)
3. Yellow/Black - Right Front (-)
4. Yellow - Right Front (+)
5. Green/Black - Left Rear (-)
6. Green - Left Rear (+)
7. Gray/Black - Right Rear (-)
8. Gray - Right Rear (+)
9. Brown/Black - Center (-)
10. Brown - Center (+)
B:
1. Orange/Black- B Left (-)
2. Orange - B Left (+)
3. Light Blue/Black - B Right (-)
4. Light Blue - B Right (+)
5. Pink/Black - C Left (-)
6. Pink - C Left (+)
7. Purple/Black - C Right (-)
8. Purple - C Right (+)
C:
1. Dark Blue /Black- SUB 1 (-)
2. Dark Blue - SUB 1 (+)
3. Dark Blue /Black- SUB 2 (-)
4. Dark Blue - SUB 2 (+)
5. Black Chassis Ground (-)
6. Chock 12V/15A Red Constant
12 Volt Soource(+)
C B A
1 2 1 2 1 2
3 4 3 4 3 4
5 6 5 6
5 6 7 8 7 8
9 10
To Next Page
