Genesis Technologies GT-3.0 - Wiring Diagram and Connections; Input and Output Connection Ports

34
IR - Infrared Reciever Input
AV2 Audio / Video Input - Video In
AV2 Audio / Video Input - Left
AV2 Audio / Video Input - Right
Low Level Aodio Output - Left
Low Level Aodio Output - Right
AU2 Audio Input - Left
AU2 Audio Input - Right
Optical Audio Input
COAX Audio Input
FM / AM Radio Antenna
Video Output 1
Video Output 2
Video Output 3
AV1 Audio / Video Input - Video In
AV1 Audio / Video Input - Left
AV1 Audio / Video Input - Right
High Definition Video Out

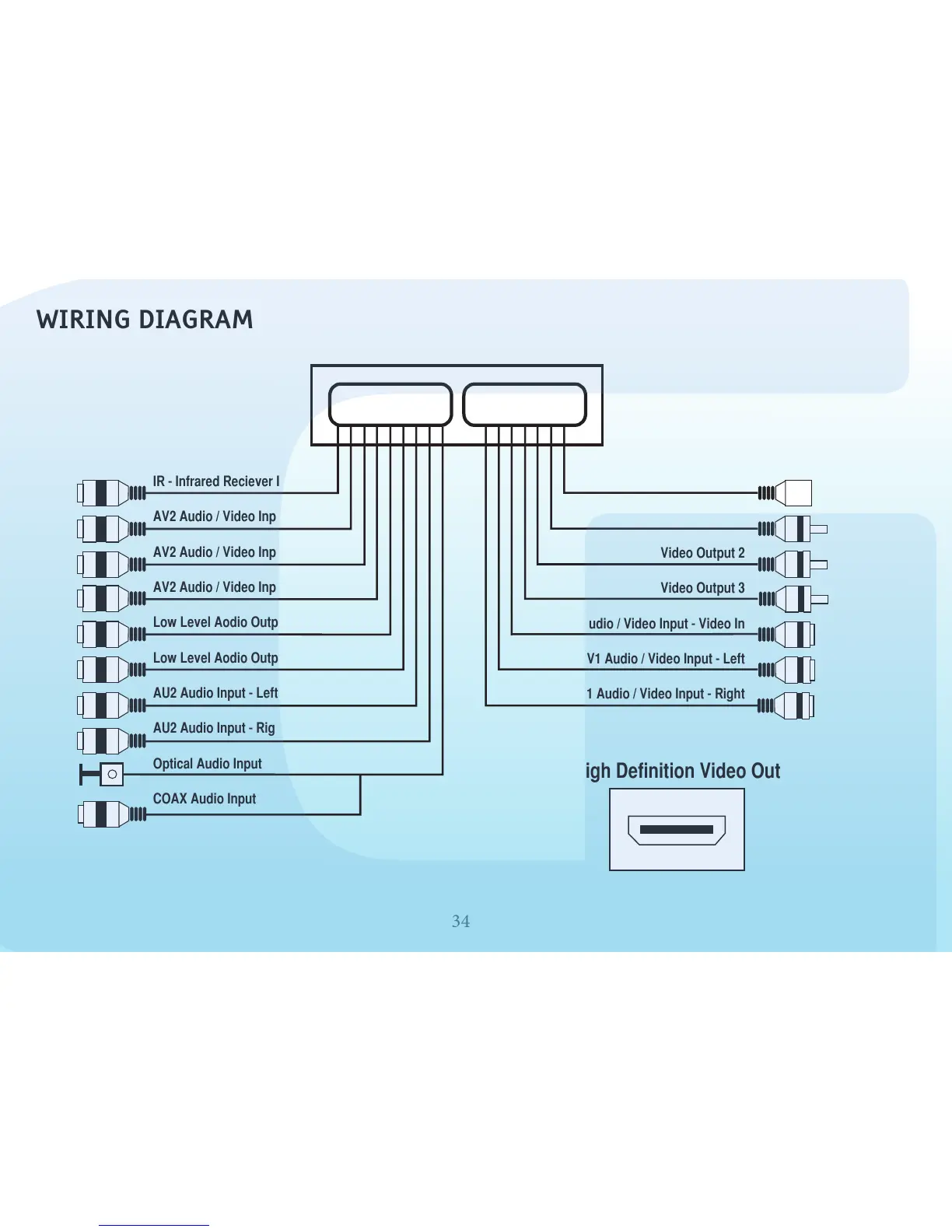

WIRING DIAGRAM
