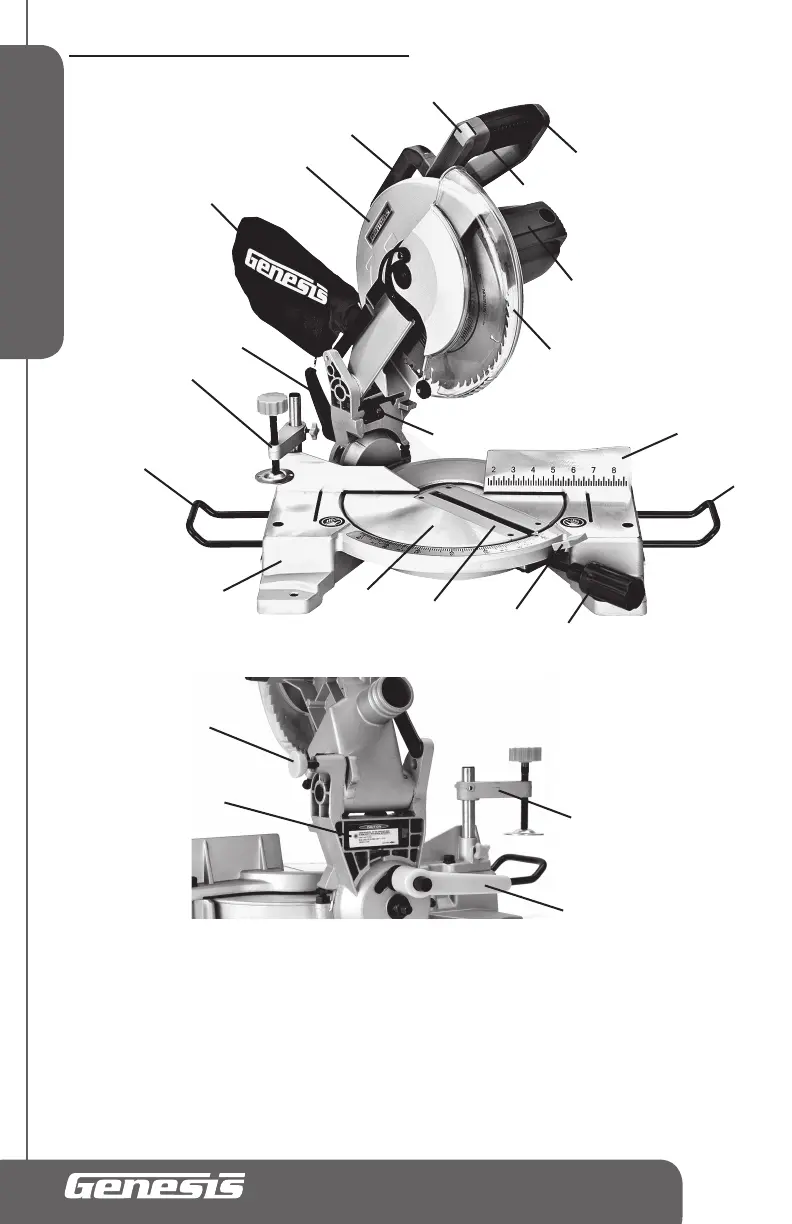

KNOWING YOUR MITER SAW
1. Handle
2. Lock-Off Switch
3. Trigger Switch
4. Carrying Handle
5. Upper Blade Guard
6. Motor
7. Lower Blade Guard
8. Dust Bag
9. Bevel Lock Handle
10. Laser
11. Hold Down Work Clamp
12. Table Exension
13. Base
14. Miter Table
15. Throat Plate
16. Detent Lever
17. Miter Lock Handle
18. Fence
19. Saw Head Lock Knob
20. Laser Battery Compartment
