First Edition • Second Printing Operator's Manual
Controls
Part No. 1290846GT GS
™
-1330m 23
Controls
The ground control station is to be used as a means to raise the platform for function tests and for
storagepurposes. The ground control station can be used in the event of an emergency to rescue an
incapacitated person in the platform.

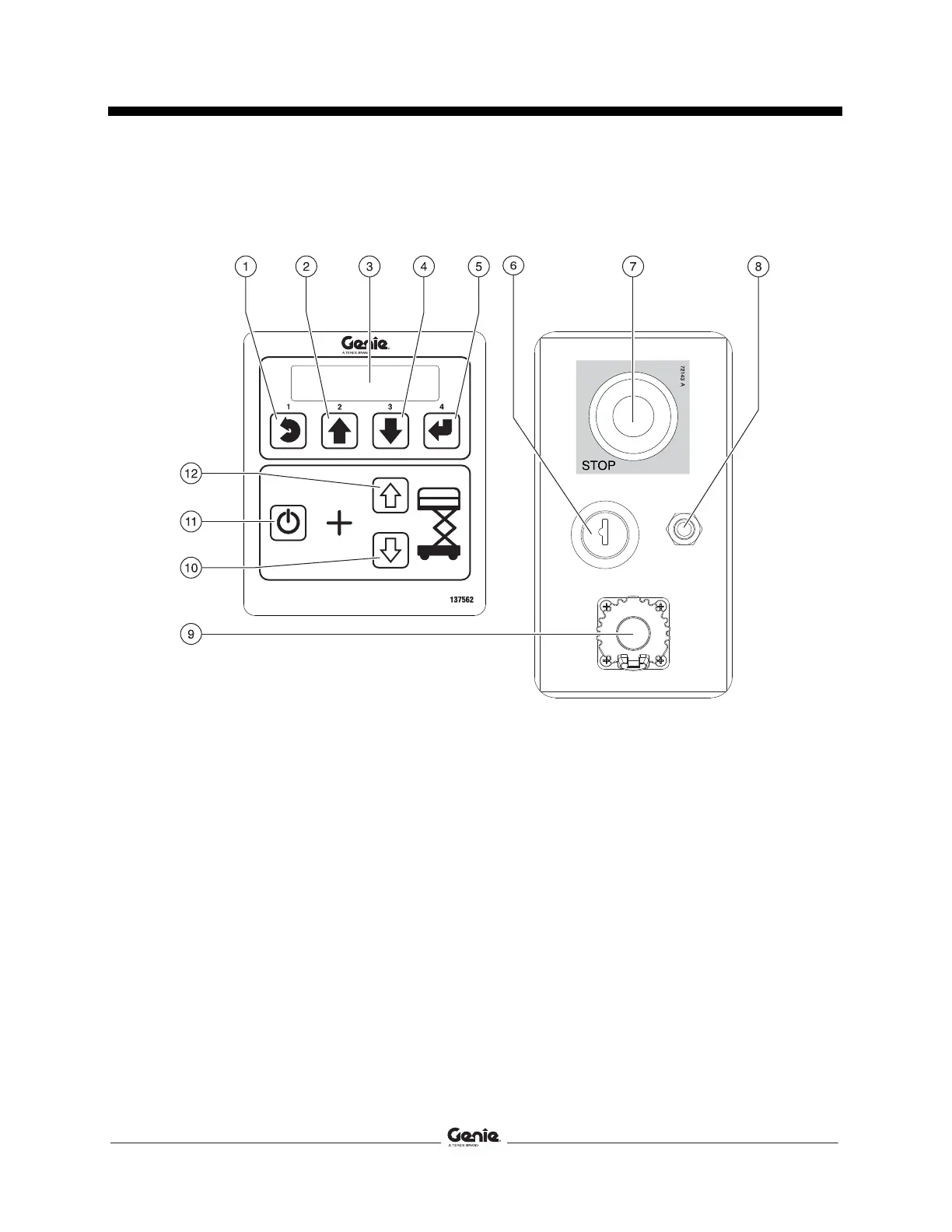

Ground Control Panel
1 Menu escape button
2 Menu up button
3 LCD diagnostic readout
4 Menu down button
5 Menu enter button
6 Key switch for platform/off/ground selection
Turn the key switch to the platform position and
the platform controls will operate. Turn the key
switch to the off position and the machine will be
off. Turn the key switch to the ground position
and the ground controls will operate.
7 Red Emergency Stop button
Push in the red Emergency Stop button to the off
position to stop all functions. Pull out the red
Emergency Stop button to the on position to
operate the machine.
8 7A breaker for electrical circuits
9 Tech Pro Link Connector
10 Platform down button
11 Lift function enable button
Press and hold this button to activate the lift
function.
12 Platform up button
