Genie GS-1330m User Manual

First Edition • Second Printing Operator's Manual
Controls
Part No. 1290846GT GS
™
-1330m 25
5 Proportional control handle and function
enable switch for drive, steer, and lift functions
Lift function: Press and hold the function
enable switch to enable the lift function on the
platform control handle. Move the control
handle in the direction indicated by the blue
arrow and the platform will raise. Move the
control handle in the direction indicated by the
yellow arrow and the platform will lower. The
descent alarm should sound while the platform
is lowering.
Drive function: Press and hold the function
enable switch to enable the drive function on
the platform control handle. Move the control
handle in the direction indicated by the blue
arrow on the control panel and the machine
will move in the direction that the blue arrow
points. Move the control handle in the direction
indicated by the yellow arrow on the control
panel and the machine will move in the
direction that the yellow arrow points.

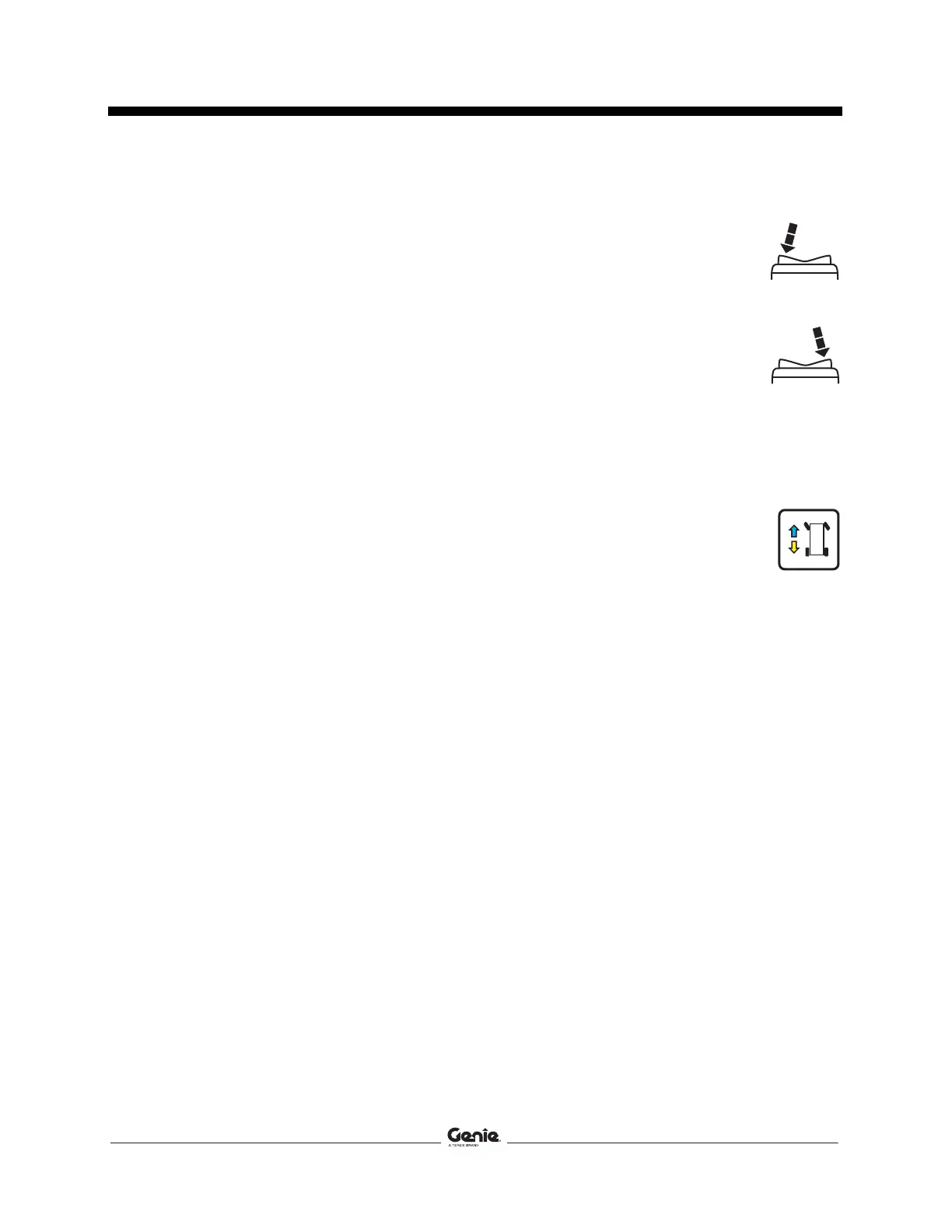

6 Thumb rocker switch for steer function
Press the left side of the thumb
rocker and the machine will turn in
the direction the blue triangle
points on the platform control
panel.
Press the right side of the thumb
rocker and the machine will turn in
the direction the yellow triangle
points on the platform control
panel.
7 LED diagnostic readout, battery charge
indicator and lift/drive mode indicator
8 Drive function button
Push this button to activate the
drive function.
