13
ENGLISH
ENGLISH
328
187
2806 / 3406 / 4006
415

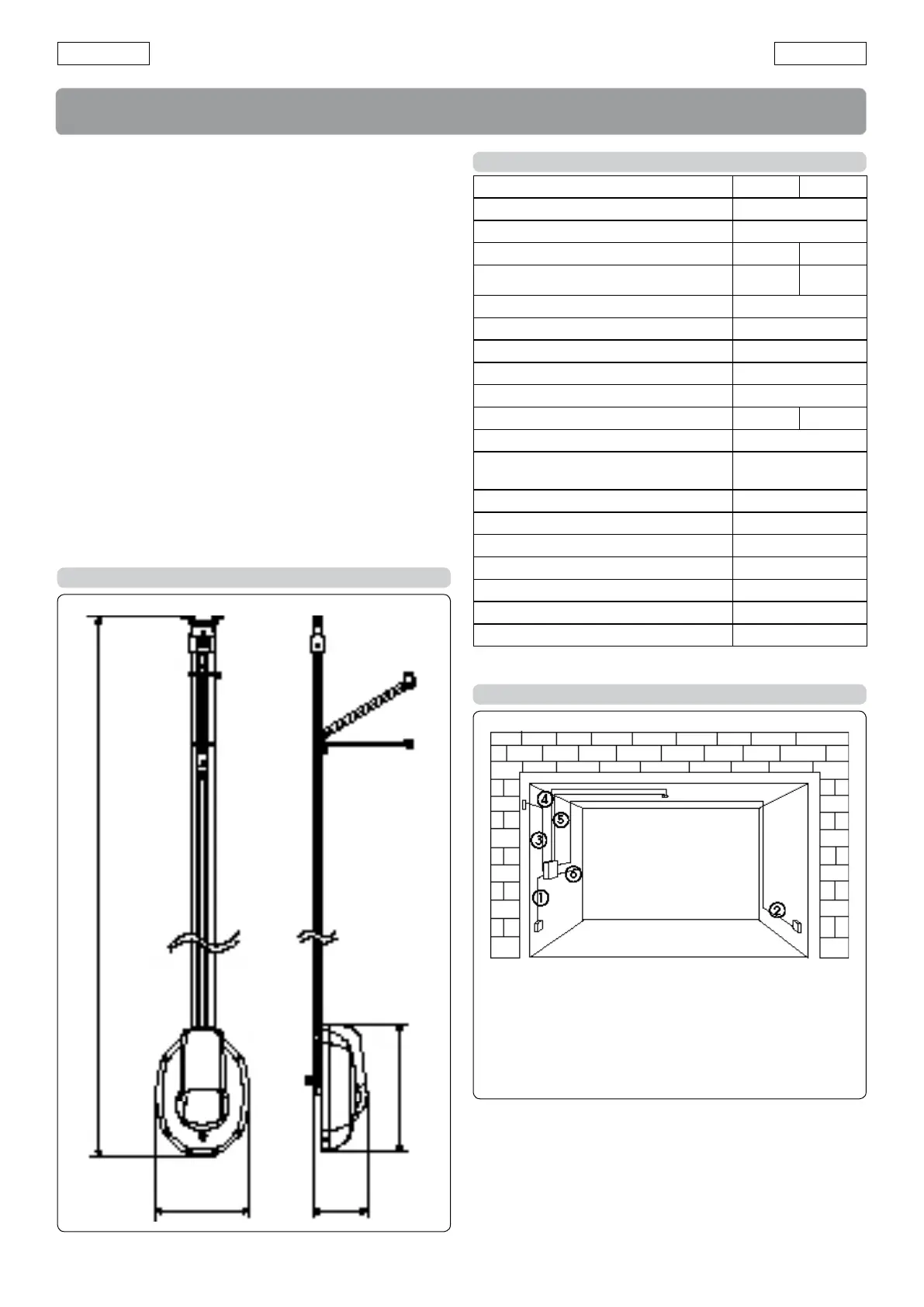

Fig. 1
Fig. 2
MODEL G60 G100
Power supply (Vac +6 -10% 50Hz) 230
Electric motor (Vdc) 24
Maximum absorbed power (W) 220 350
Thrust force (N) 600
600
1000
Maximum cycles per hour at 20°C 20
Maximum consecutive cycles 6
Minimum distance from ceiling (mm) 35
Courtesy light (Vac-W) 230 - 25 max
Courtesy light timer (sec) 120
Carriage speed (load free) (m/min) 7,8 11
Deceleration speed (m/min) 1,7
Deceleration travel length
Varies according to
setup
Intrinsic safety device Tipo 2
Max. overhead door width (mm) 3000
Sectional door max. width (mm) 5000
Door max. height see useful travel
Useful sliding guide travel (mm) 1900 - 2500 - 3100
Protection rating for indoor use only
Ambient temperature (°C) -20 ÷ +55
These instructions apply to the following models:
G60 - G100
Automatic systems G60 and G100 allow the automation of sec-
tional, overhead spring-balanced and counterbalanced (with
special accessory) doors for residential garages.
They consist of an electromechanical operator, electronic con-
trol equipment and courtesy light built into a single unit which,
fitted to the ceiling, allows door opening by means of a chain
or belt transmission.
The non-reversing system guarantees mechanical door locking
when the motor is not operating, therefore no lock is necessary;
a manual release on the inside and one on the outside (optio-
nal) allow the door to be moved manually in case of a power
failure or malfunction.
The operator is equipped with an electronic device that detects
any obstacles to door movement.
These instructions refer to the operator with chain drive, but the
same procedures, adjustments and application limits also apply
to the operator with belt drive.
The G60 and G100 automatic systems are designed and built
for indoor use and for controlling vehicle entry. Any other use
is improper.
AUTOMATIC SYSTEM G60 - G100
2. DIMENSIONS
Dimensions in mm
Cable 2 x 0.5 (TX photocell)
Cable 4 x 0.5 (RX photocell)
Cable 3x0.5 (Radio receiver)
Power tubing (230V)
Low voltage tubing
Cable 2 x 1.5 + earth (power supply)
3. ANCILLARY ELECTRICAL EQUIPMENT
1. TECHNICAL SPECIFICATIONS
