20
ENGLISH
ENGLISH

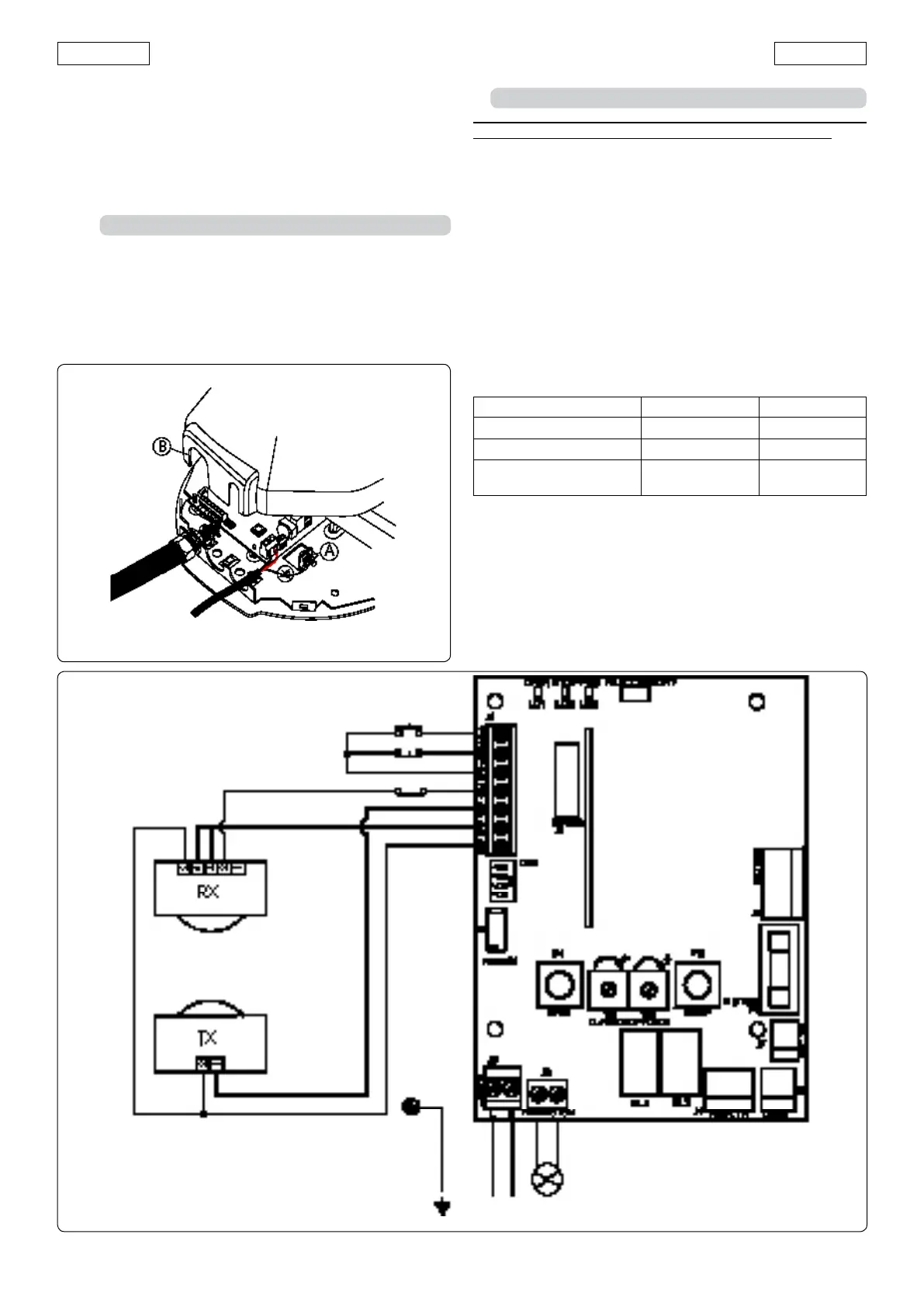

Fig. 27
Fig. 28
DL Meaning On Off
1 Input status OPEN Not active Active
2 Input status STOP Active Not active
3 Input status FSW
Safety devices
activated
Safety devices
deactivated
230V~
50-60Hz
Flashing light 230V~ 50-60Hz
on the set force value: if the value is too low, unwanted inter-
ventions of the device could occur, whereas if the value is too
high, efficiency will be excessively decreased.
Speed adjustment
If the door movement is too fast or uneven, the slow carriage
speed can be selected.
8.3.3. Courtesy light
The courtesy light stays on for 2 minutes from the end of the
operation (not modifiable).
During the self-learning cycle the lamp flashes rapidly (on for
one second every two).
In case of an anomaly in the equipment or if the self-learning
cycle does not end correctly, the light flashes slowly (on for two
seconds every four).
8.4. CONNECTIONS
IMPORTANT: Always turn the power off before any intervention
on the card (connections, programming, maintenance).
The electrical system specifications are given in the chapter
“Instructions for the installer”.
Always separate power cables from the control cables. To
prevent any electrical interference, use separate sheaths.
The operator is equipped with a cable with Shuko plug already
wired; if using a different cable make sure to connect the earth
to the special anchoring point indicated in fig. 27 ref. A.
For the cable passage, use the arrangement located on the
back of the housing. If tubing is used, execute the slot as shown
in fig. 27 ref. B.
Carry out the electrical connections, referring to fig. 28. If the-
STOP input is not used, jumper connect the input to the terminal
. If the photocells are not used, connect the FSW input to the
-TX FSW terminal.
Input status LEDs
The status of automatic system stopped and at rest is indicated
in bold-face for each input.
OPEN
STOP
OTHER SAFETY DEVICES
