Genius GHT-511 - Disassemble & Assemble Amplifier PCBA(SUB)

Service Manual

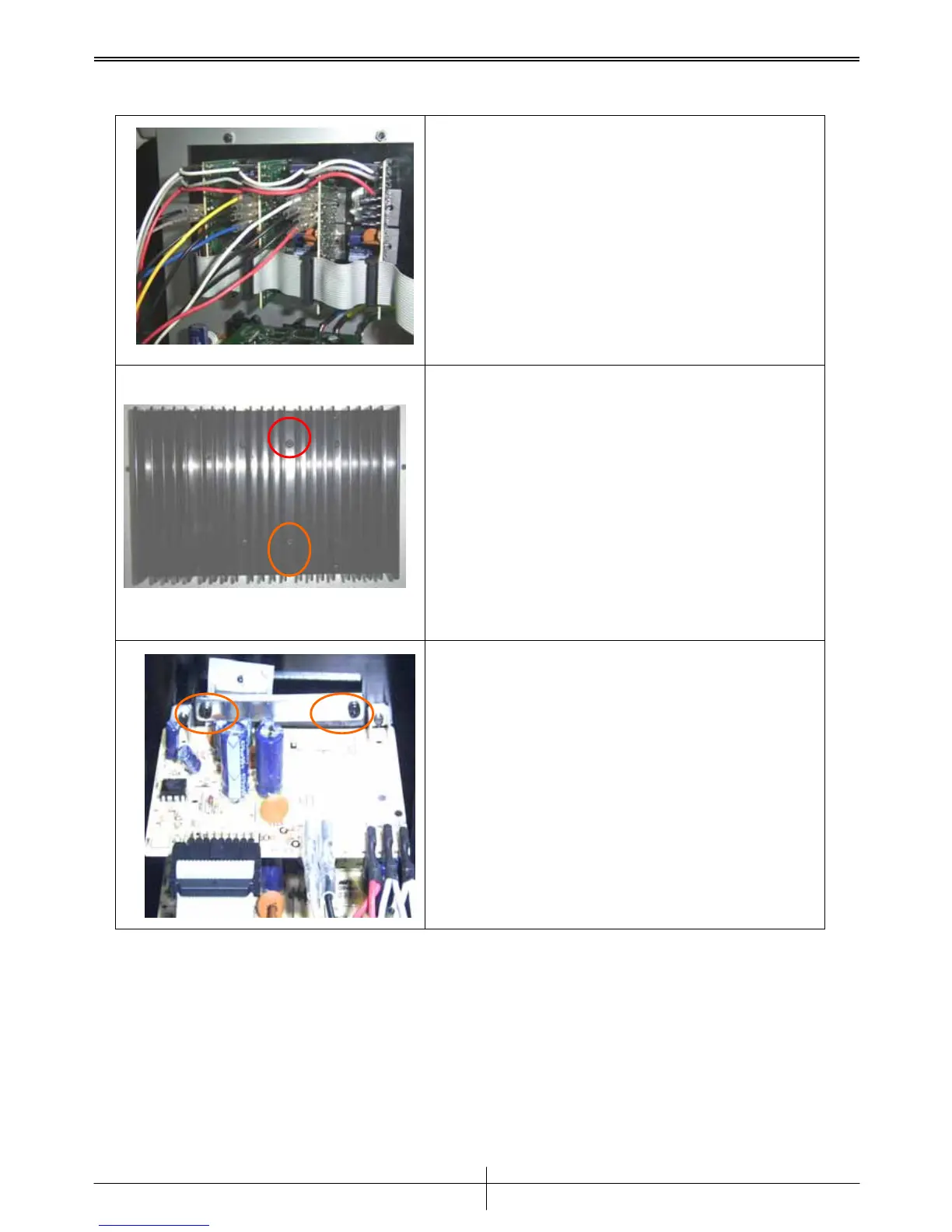

Disassemble & Assemble Amplifier PCBA(SUB)
Step 1
*Disassemble the Rear Cover first.
Disconnect the cables & wires
*Mark the position of cables & wires
Step 2
To loose 2 screws.(A & B)
Step 3
To loose 2 screws. After taking all screws
off, you can take up the Amplifier PCBA
*To install the Amplifier PCBA, reverse
the steps shown above.
