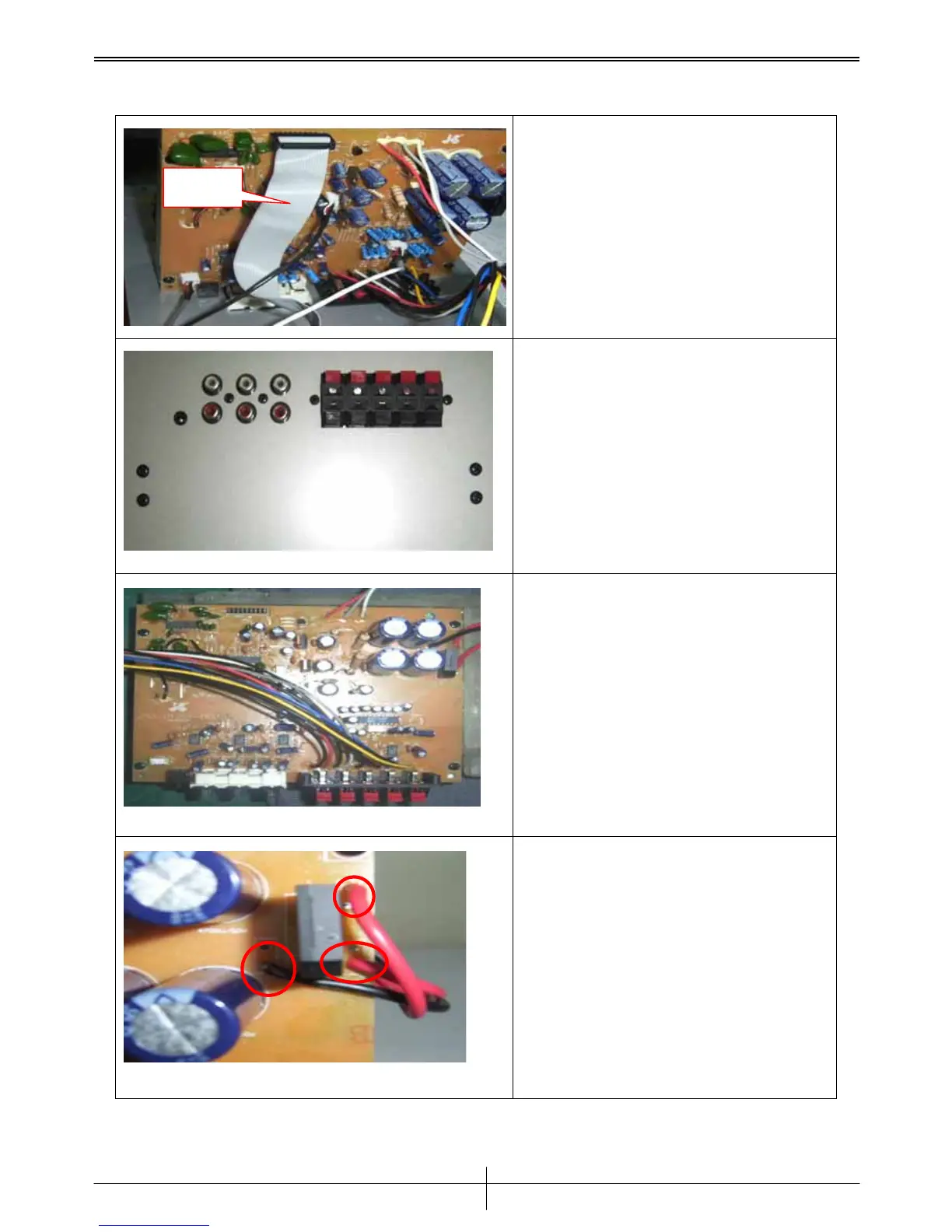

Disassemble &
Assemble the Power Supply PCBA
St
e
p
1
*Disassemble the Rear Cover
first.
Disconnect the cable.
St
e
p
2
T
o loose 8 screws. Form
A-H.
St
e
p
3
T
o loose 4 screws. Form I-L.
St
e
p
4
Unsolder the wires on Power
Supply PCBA.
And remove the
wires.
*Mark the position of wires
Cable
GH
E F
D
C
B
A
L
K
J
I
V
ersion 1.0
P
age
7
7
9
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1. INTRODUCTION
3
Function Block
3
Chapter 2. Troubleshooting Guide
4
Chapter 3. Removal and Replacement
5
Disassemble & Assemble the Fuse
5
Disassemble & Assemble the Rear Cover
6
Disassemble & Assemble Amplifier PCBA(SUB)
7
Disassemble & Assemble the Power Supply PCBA
8
Power
9
Chapter 4. Testing Procedures
10
Chapter 5. Important Notes
11
Packing Requirement for Sending the PCB Assembly
11
Short of Spare Parts While Repairing a Speaker
11
Chapter 6. Parts List (Vender's Number)
12
Chapter 7. Tools
