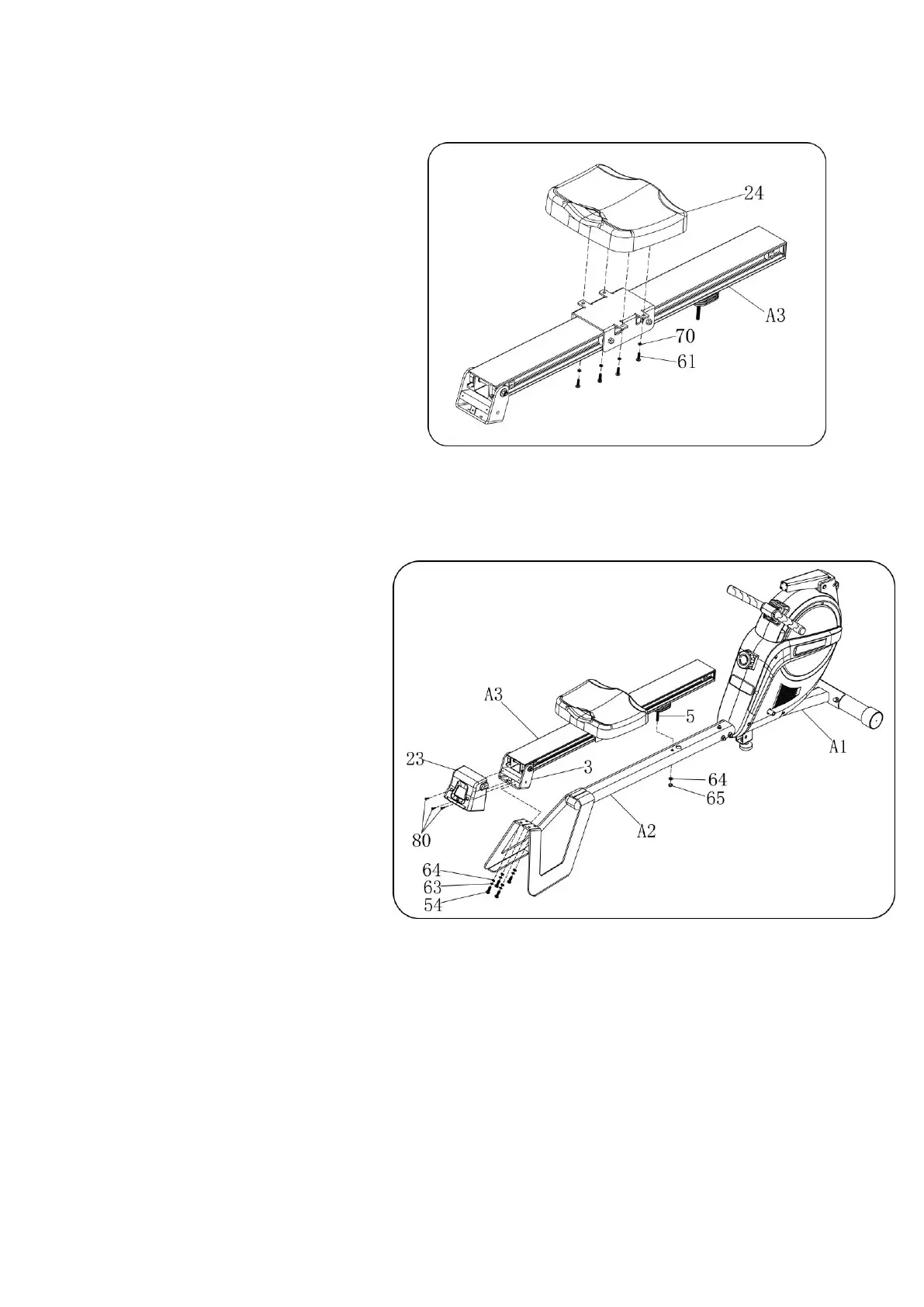

Use L-shaped wrench (50) , bolt (61)
and flat washer(70) to install the rower
seat (24) on the slideway (A3) and
lock it.
First make sure the corresponding
holes of the U-plate(3) on the
Slideway(A3) are well closed to the
Slideway supporter(A2),and the holes
of the fixing plate(5) are corresponded
to the holes of the slideway
supporter(A2).
Then using L-shape wrench(50) ，
Screw(54), Standard spring
washer(63) and Flat washer(64) to fix
the U-plate(3) on the Slideway
supporter(A2) and lock it. Also using
the Multi-function Wrench(51) , Flat
washer (64) ,Locknut (65) to fix the
fixing plate(5)on the Slideway
supporter(A2) and lock it.
Finally, use the L-shaped wrench
(50) , screw (80) to install the slideway
cover (23) on the slideway fixed
U-plate(3) on the Slideway (A3)and
lock it.
