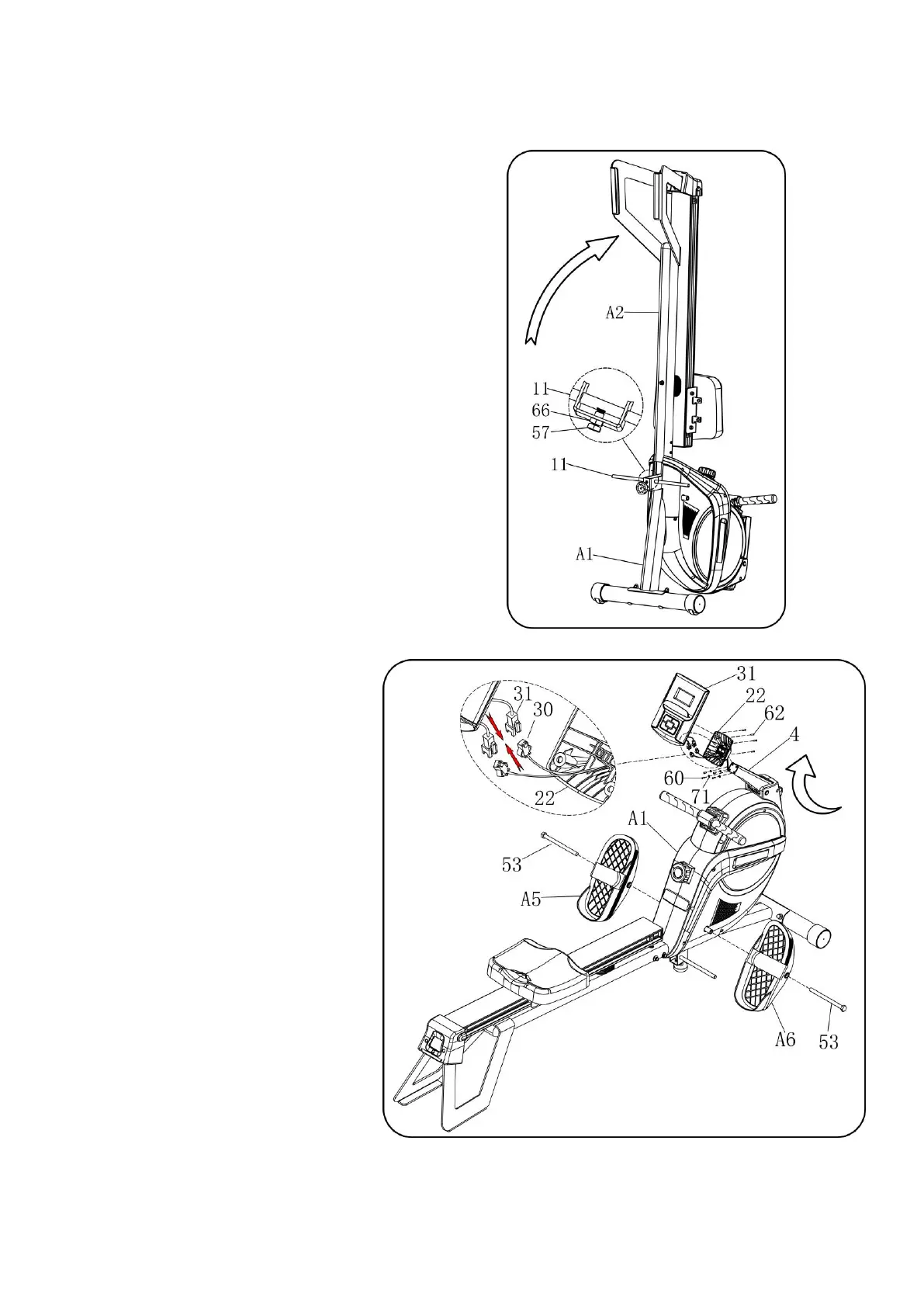

Hold the Slideway supporter (A2) with
both hands, lift the machine stand in the
direction of the arrow, and then use the
multi-function wrench (51) and bolt (57) to
lock the Pedal Axle (11) On the main
frame (A1), and use the multi-function
wrench (51) to tighten the nut (66)
After installation, hold Slideway supporter
(A2) with both hands and put the machine
down horizontally
1. Lock the left pedal (A5) and right pedal
(A6) on both sides of the main frame (A1)
with the multi-function wrench (51)
hexagon head bolt (53).
2. Turn the rotating base(4) on the main
frame(A1) outwards in the direction of the
arrow, until it cannot turn. Use the
L-wrench (50),screw (60) flat washer (71)
to install the Monitor stand (22) on the
rotating base(4) and lock it.
3. Pass the sensor (30) wire through the
Monitor stand (22), and then connect it to
the exposed wire of the Monitor (31) as
shown in the figure. Install the Monitor (31)
on the Monitor stand (22) with an
L-shaped wrench (50) and screw (62).
Lock carefully.Being careful not to press
the sensor wire
4. When using, grasp the rotating base (4)
and turn it back and forth to adjust the
visual angle of the Monitor (31).
