09
Mechanical Installation
(12) M5×20 Socket Head Cap Screw
(8) D5-L25 Dowel Pin

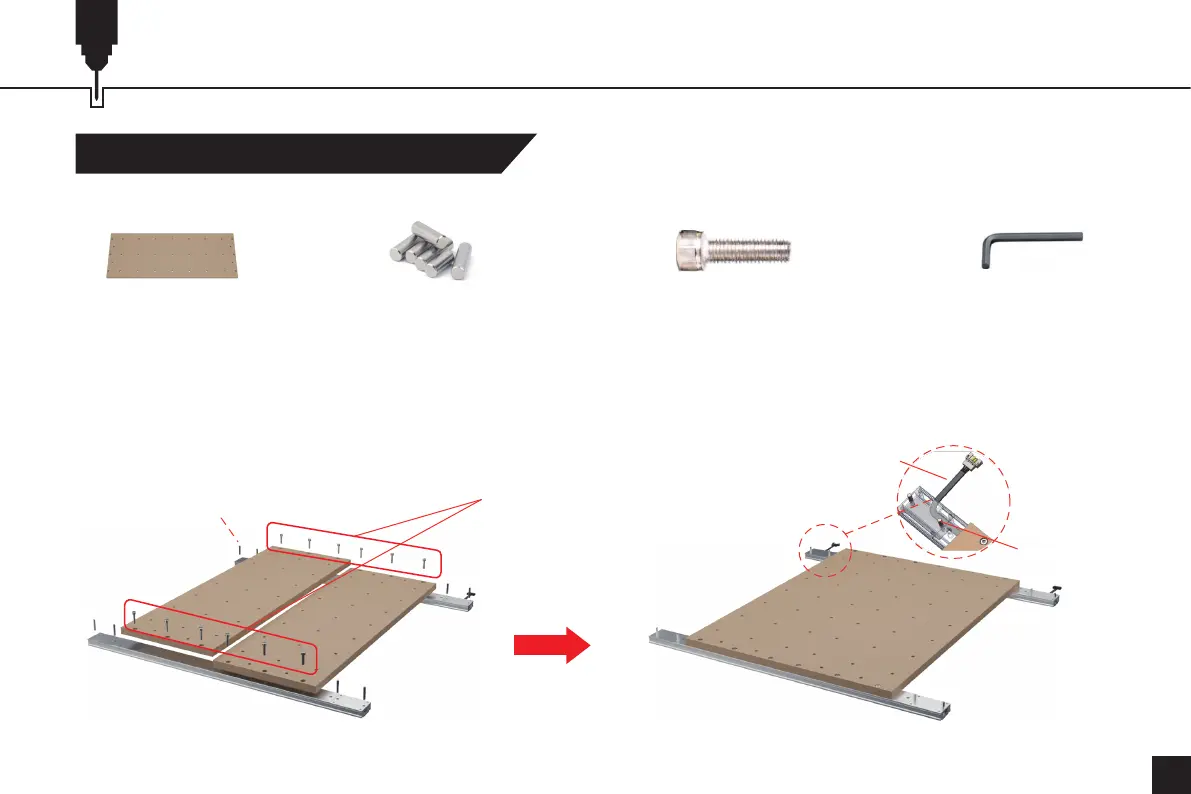

1. Align the holes in the MDF spoilboards with the corresponding screw holes in the front and rear aluminum profiles, and screw
(12) M5 x 20mm screws through the holes in the MDF spoilboards and profiles.
(Note: the screws cannot be locked tight now.)
2. Insert the 8 dowel pins into the holes in the front and rear aluminum profiles, as shown.
Cable
Dowel Pin
STEP 2 Installing the MDF Spoilboard
(2) MDF Spoilboard (12) M5×20 Socket Head Cap Screw
4mm Allen Wrench
(8) D5-L25 Dowel Pin
What you need:
To Next Page
