Mechanical Installation
STEP 10 Installing the Clamp Kit (Suitable for original MDF Spoilboard platforms)

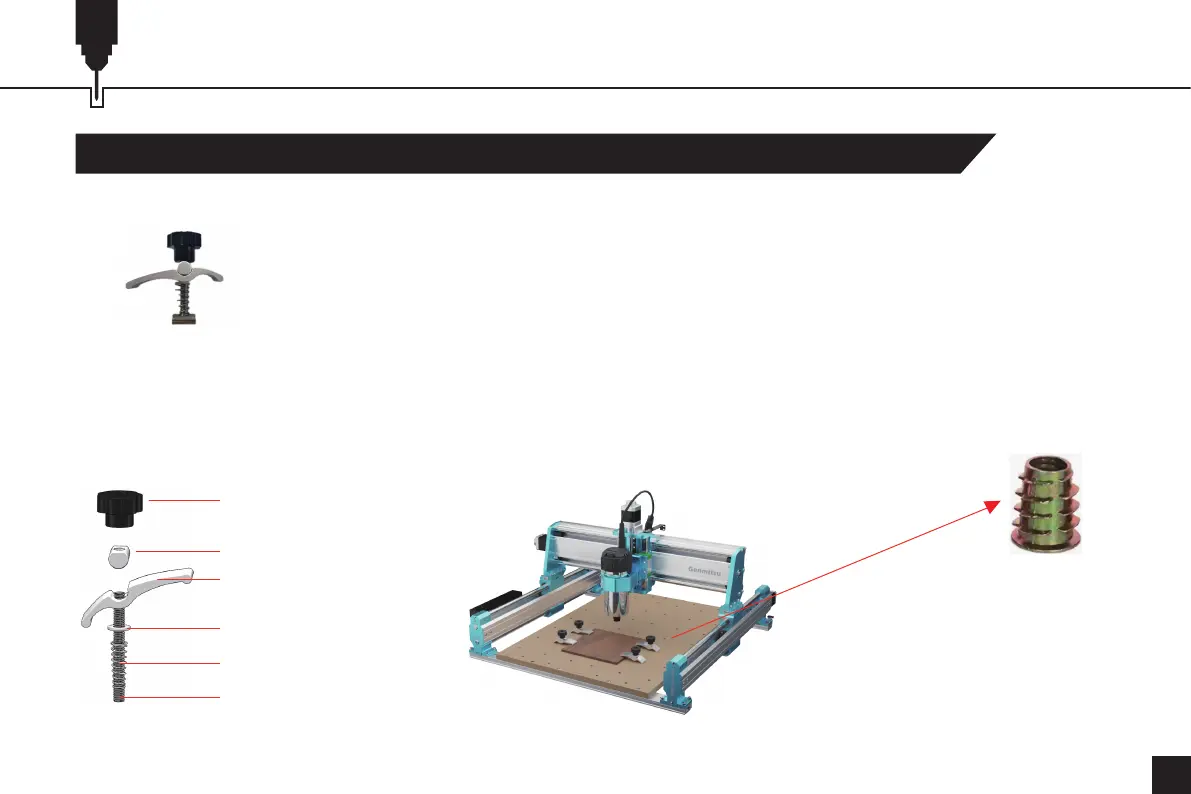

The clamp kit, as shown, consists of the following parts.
Adjust the position of the clamp kit according to the size of the workpiece to be engraved. Screw the screw into the nut in the MDF
spoilboard first, then set the spring, nylon gasket, plate, and column, and finally lock the nut.
(4) Clamp Kit
M6 Adjusting Nut
Embedded Nut for
MDF Spoilbard
Aluminum Column
Aluminum Plate
Nylon Gasket
Spring
M6 Set Screw
What you need:
23
