Gentex Full Display Mirror - Installation

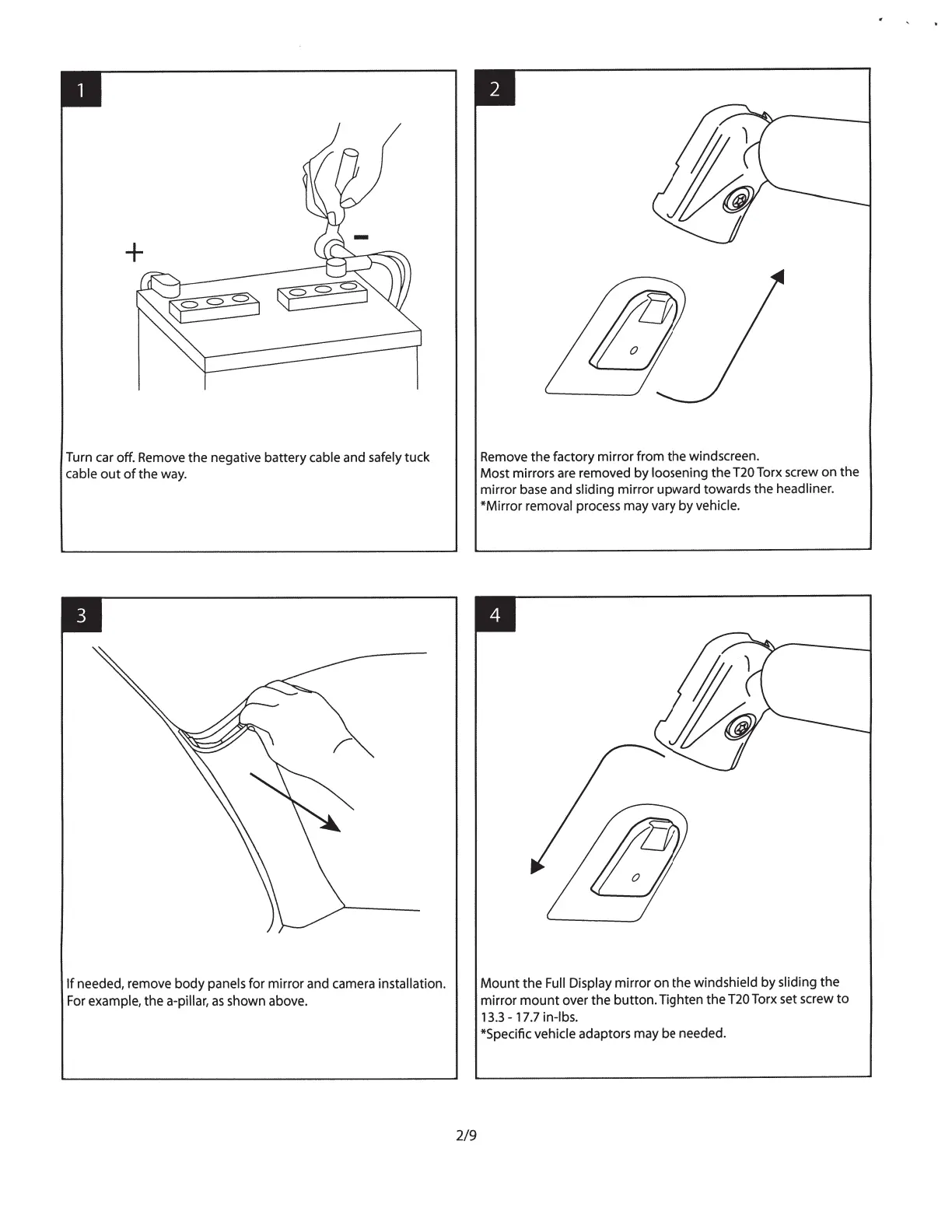

Turn car off. Remove the negative battery cable and safely tuck
cable out of the way .
If needed, remove body panels for mirror and camera installation.
For example,
the a-pillar, as shown above.
2/9
Remove the factory mirror from the windscreen.
Most mirrors are removed by loosening the T20 Torx screw on the
mirror base and sliding
mirror upward towards the headliner.
*Mirror removal process may vary by vehicle.
Mount the Full Display mirror on the windshield by sliding the
mirror mount over the button . Tighten the T20 Torx set screw to
13.3- 17.7 in-lbs.
*Specific vehicle adaptors
may be needed.
