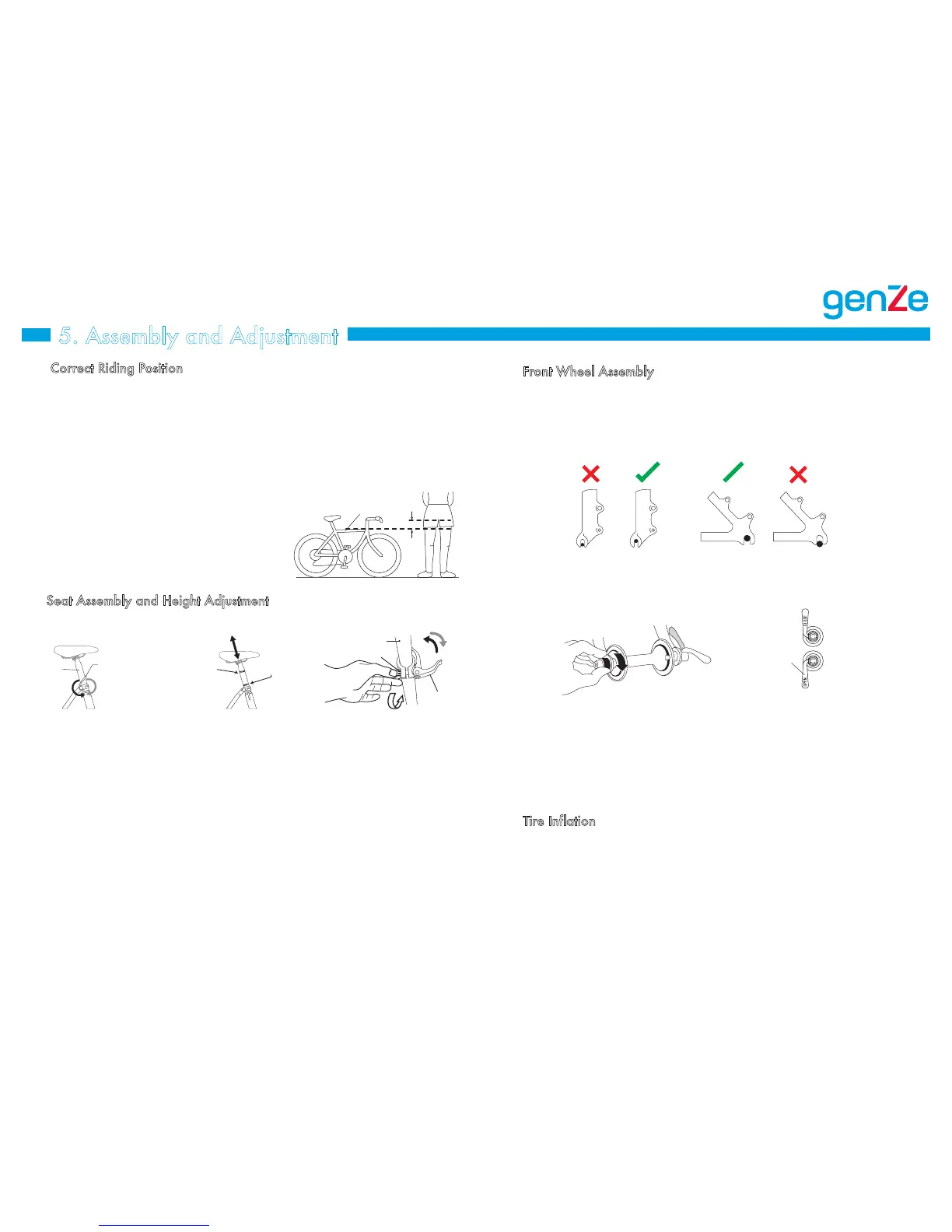

5. Assembly and Adjustment
Correct Riding Position
• The correct riding position allows you to maneuver the
handlebar and apply the brakes when needed.
• Adjust the seatʼs height so that both of your toes can
touch the ground when you sit on the seat.
• There should be at least a 2-inch gap
between yourself and the top tube
when you are standing over
the e-bike.
(this applies to the e101 only)
Seat Assembly and Height Adjustment
1. Insert the seat post into the frame until the insertion marks
(upper & lower) are no longer visible. Next, adjust the
seat post to the appropriate height and tighten the nut
and close the lever to securely fasten the seat.
2. Securing the fastener should take a considerable amount
of force. Check with your retailer or authorized service
center for proper installation instructions as the seatʼs
height should vary depending on your height.
Front Wheel Assembly
• Front wheels need to be assembled by technical service at
your retailer.
• Make sure that the front and rear hubs are correctly set as
shown in Figures 1 and 2 below.
• Fasten the quick release lever on the axle as shown in
Figures 3 and 4 below.
• You should exert considerable force when fastening the
quick release. If the lever opens with ease, it may not have
been securely fastened.
Tire Inflation
• Fill tires to recommended pressure as indicated on the
sidewall of the tire.
Top tube
Approx. 5cm
Insertion mark
(LOWER LIMIT)
Insertion mark
(UPPER LIMIT)
Seatpost
Open
Closed
QR lever
Adjusting nut
Seatpost
Open
Closed
QR Lever
Figure 1 Figure 2
Figure 3 Figure 4
To tighten
Closed
Closed
Open
Open
Adjusting nut
Quick release lever
Lever
