Reading your display
7
READING YOUR DISPLAY

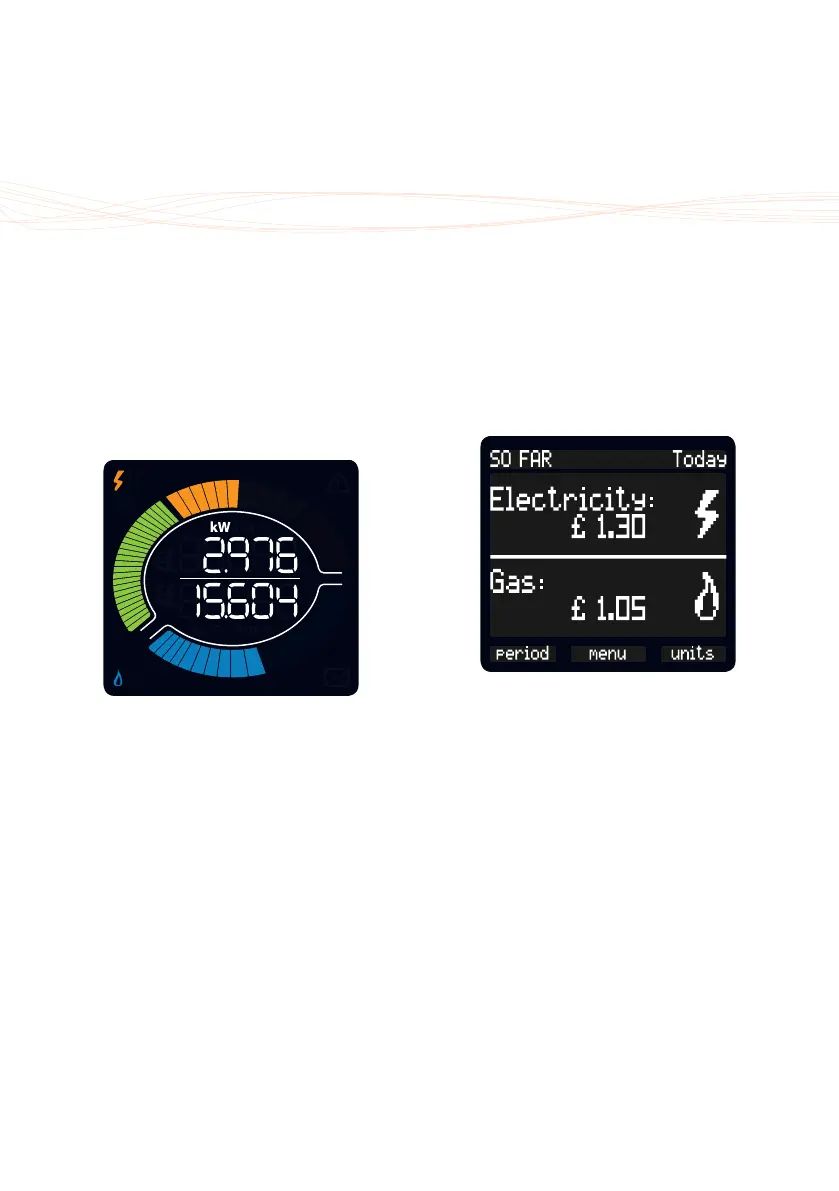

Upper screen
There are two speedometers to give
you an up-to-date graphical view of
how much electricity and gas your
home is using right now.
The upper electricity speedometer
shows up to 22kW of power, updating
every three seconds.
The lower gas speedometer shows up
to 50kW of power, updating every 30
minutes. (This speedometer is only
shown if you have a gas smart meter.)
The two gauges can be scaled to suit
the size of property you live in - see
‘Usage Level’ on page 18.
Lower screen
The lower screen is used to show
historical usage and also for making
changes to your Duet II.
The function of each of the three
buttons at the bottom of the display is
shown directly above it.
In the example above, the middle
button will enter the main
menu
.
Top (Home) button
A short press of the top (home) button
reverts the display to the Home View.
