Geometrics G-882 User Manual

Geometrics Inc. G-882 Cesium Marine Magnetometer Page 30
The Geometrics
program "CSAZ"
available on your
CD or our website
will give the user
the optimal sensor
angles for the area
of interest. See the
CSAZ manual
(under help in the
program) for further
explanation of the
use of CSAZ

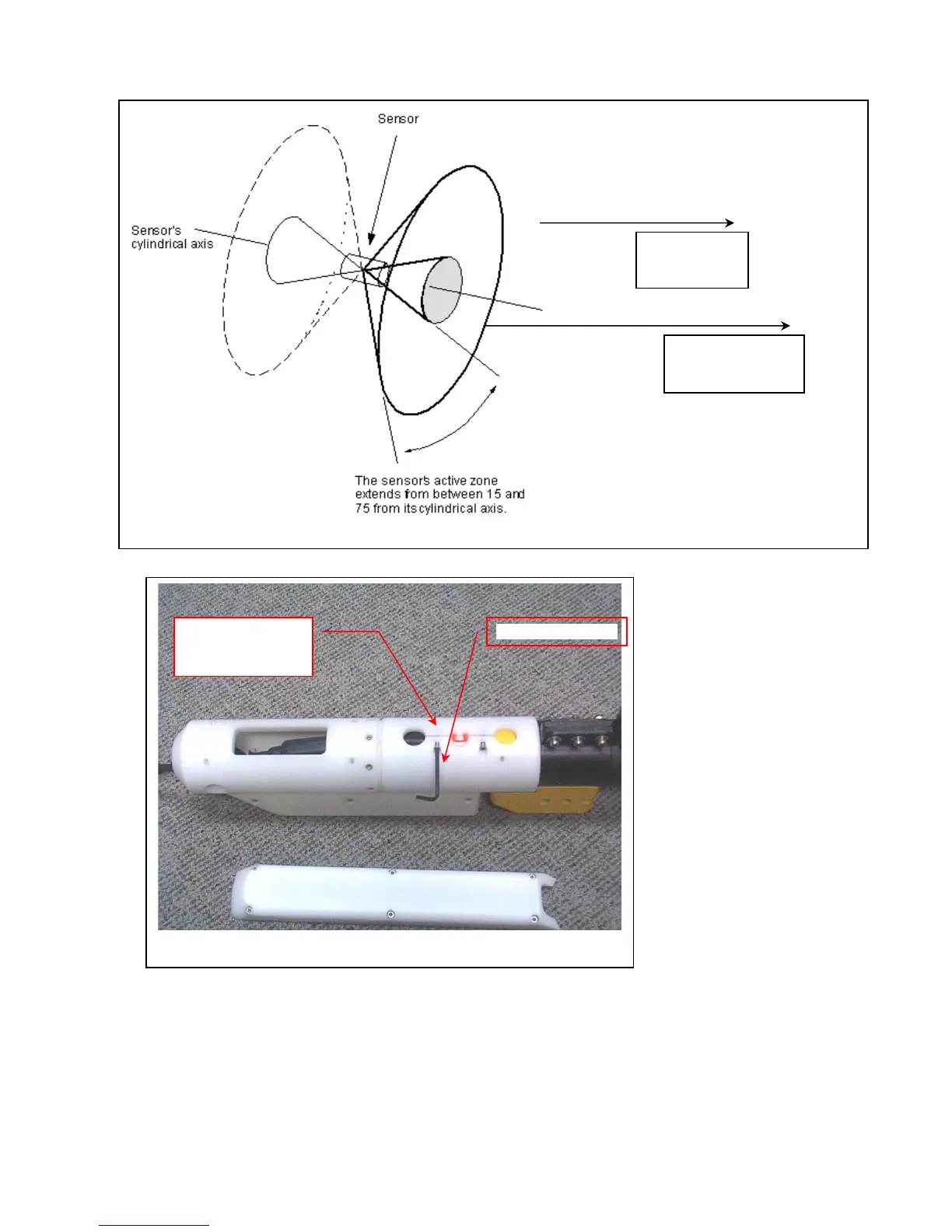

Changing sensor orientation is simple. This adjustment will allow the sensor‘s
optical axis roll angle to be set to any angle (typically only 0º, 45º or 90º
required.)
Figure 31
Figure 32
Loosen these two
cap screws to
rotate the nose.
5/32" HEX L-
Key
60
Dead Zone
30º Cone
Active Zone
60º zone
