Geometrics G-882 - Adjusting Handle and Orientation Weight

Geometrics Inc. G-882 Cesium Marine Magnetometer Page 9
cables into the nose cavity (Fig 12 B). Feed the pigtail under the top cover and
secure the top cover with linchpins and split rings. See Figure 12 C for
completed assembly.
2.3 Adjusting Handle And Orientation Weight

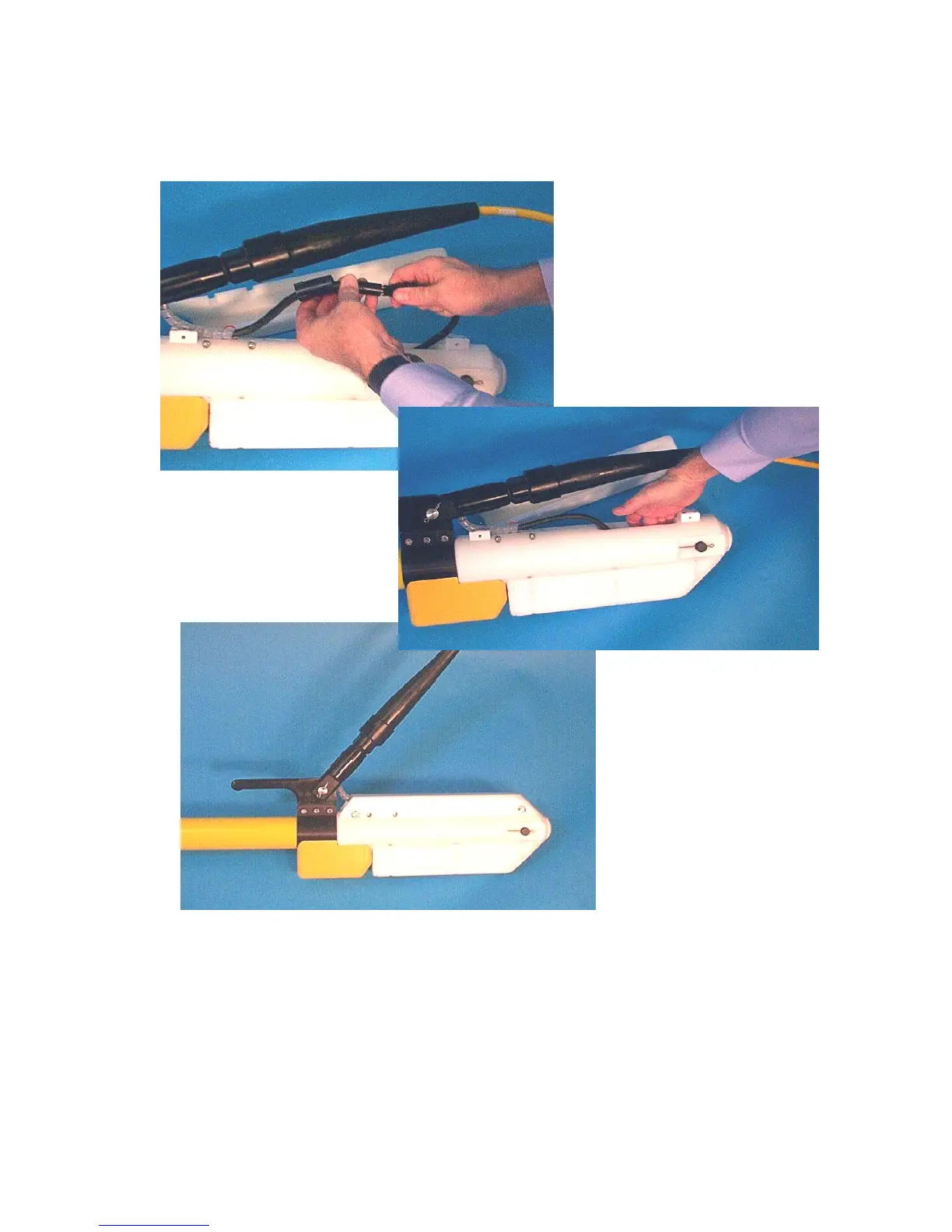

Figure 12
Final Nose Tow
Configuration
Fig 12 A
Fig 12 B
Fig 12 C
