GeoVision GV-AS4110 User Manual

Installing on a Network
127
7
7.1 Fixed IP Connection

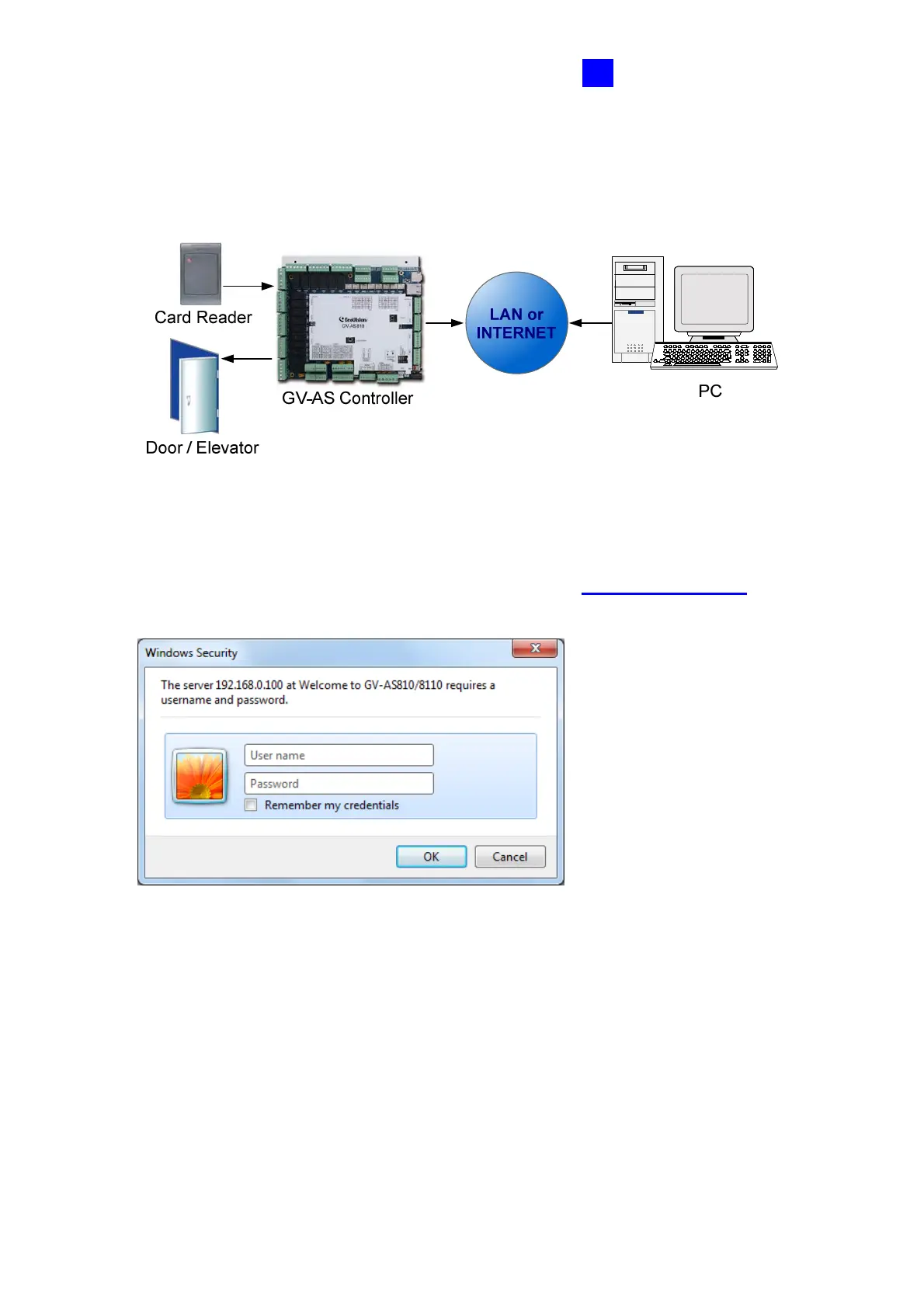

If your network environment supports a static IP address, the wiring is illustrated as below:
Figure 7-1
To assign the GV-AS / GV-EV Controller to a fixed IP:
1. Open an Internet browser, and type the default IP address https://192.168.0.100
. This
dialog box appears.
Figure 7-2

GeoVision GV-AS4110 Specifications

General

Interface	RS-485
Case design	Bare
Built-in UPS	-
Maximum number of doors	4 door(s)
Supported network protocols	TCP/IP
Power consumption	200 mA
Switchable current	0.9 A
Switchable DC voltage	12 V
Power consumption (typical)	10.8 W
Operating temperature (T-T)	0 - 65 °C
Operating relative humidity (H-H)	10 - 90 %
Number of Wiegand readers supported	8

Weight and Dimensions

Depth	110 mm
Width	420 mm
Height	300 mm
Weight	4400 g
